Specifications

Specifications table for model TZC3490E
ItemPerformance characteristics
R-Value - Center of Panel (h.sq ft.°F/BTU)66
W x L x Thickness (in)22.4 x 48 x 0.94
W x L x Thickness (mm)570 x 1220 x 24
Weight / Panel (lb)10.2
Weight / Panel (kg)4.6
Panels / Pallet33
Area / Panel (sq ft)7.49
Area / Panel (sq m)0.7
Area / Pallet (sq ft)247
Area / Pallet (sq m)23
Compressive Strength (PSI)14.3
Max. Use Temperature Range (°F)-40 to 140
Max. Use Temperature Range (°C)-40 to 60

Stock check

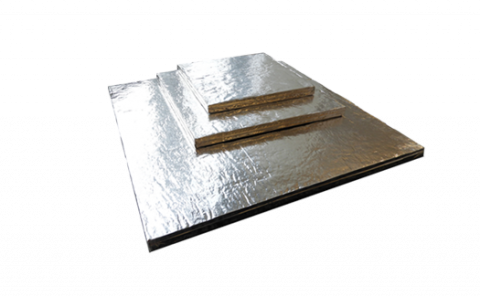

Model image for TZC3490E

TZC3490E
