EEE-FT Series (High Temp. Reflow)

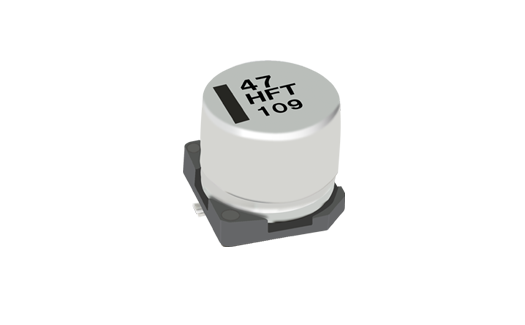

The EEE-FT Series Surface Mount Aluminum Electrolytic Capacitor offers lower ESR, higher capacitance and higher ripple current in the same or smaller case sizes. As a result of technological advances in our foil process, Panasonic can offer one size smaller in 25v 33uF, 47uF, 68uF, 100uF, and 470uF product. The smaller case size offering helps save valuable board space and overall board design costs.

Features and Benefits

  • Operating Temperature Range: -55°C to +105°C
  • Rated Voltage Range: 6.3 to 50 VDC
  • Rated Capacitance Range: 10μF to 2200μF
  • Endurance: 105°C 2000 hours
  • Pb-Free High-Temperature Reflow
  • Up to 50% Lower ESR From the Previous Model
  • Higher Capacitance as a Result of New Foil Technology
  • Space and Cost Savings
  • RoHS Compliant
  • AEC-Q200 Compliant
AEC-Q200 Logo

An AEC-Q200 Compliant Series

Panasonic components specified as AEC-Q200 Compliant are consistently designed into automotive systems.  However, today’s Design Engineers are specifying AEC-Q200 components to meet the high-quality standards of devices beyond automotive applications.

Parts that pass the AEC tests are qualified, high-quality components that can be used in critical environments.  Therefore, there should be no need to conduct other component level tests saving both time and expense.

Current AEC-Q200 Standard documents developed by the AEC Component Technical Committee are available on the AEC website. The AEC is an organization based in the U.S. that sets qualification standards for the supply of components in the automotive electronics industry.

If your next device requires components that meet the Automotive Electronics Council (AEC) requirements for components suitable for harsh automotive environments, think Panasonic!

Download a complete list of Panasonic AEC-Q200 Compliant Component Series and specify reliably!

Part Number List

Results 111
Models table for series EEE-FT Series (High Temp. Reflow)
Part No.DatasheetBody TypePolarity Type Rated Voltage (V)Capacitance (µF)Capacitance Tolerance (%)Tangent Of Loss Angle (Max.)Leakage Current (Max.) (μA)Leakage Current (Max) (micro A)Operating Temperature Range (°C)Body Diameter (mm)Body Length (mm)Rated Ripple Current (Freq.) (Hz)Rated Ripple Current (mA)Rated Ripple Current (Unit)E.S.R.-1 (Frequency) (Hz)E.S.R.-1 (Max. Value) (mΩ)Endurance (h)Forming & Packaging FeatureAppearanceMinimum Packaging Quantity (PCS.)Minimum Packaging Quantity (pieces)Minimum Packaging Quantity (piece)Weight (Typ.) (g)
Surface mount type (vertical mount style)
Polar
10
1000
-20 to 20
0.19
100
100
-55 to 105
8
10.2
100000
850
mArms
100000
80
5000
Embossed carrier taping (reel packing)
Sheathless (metal case)
500
500
500
0.88
Surface mount type (vertical mount style)
Polar
10
1500
-20 to 20
0.19
150
150
-55 to 105
10
10.2
100000
1190
mArms
100000
60
5000
Embossed carrier taping (reel packing)
Sheathless (metal case)
500
500
500
1.29
Surface mount type (vertical mount style)
Polar
10
1500
-20 to 20
0.19
150
150
-55 to 105
10
10.5
100000
1190
mArms
100000
60
5000
Embossed carrier taping (reel packing)
Sheathless (metal case)
500
500
500
1.53
Surface mount type (vertical mount style)
Polar
10
1000
-20 to 20
0.19
100
100
-55 to 105
8
10.5
100000
850
mArms
100000
80
2000
Embossed carrier taping (reel packing)
Sheathless (metal case)
500
500
500
0.96
Surface mount type (vertical mount style)
Polar
6.3
1500
-20 to 20
0.26
94.5
94.5
-55 to 105
8
10.2
100000
850
mArms
100000
80
2000
Embossed carrier taping (reel packing)
Sheathless (metal case)
500
500
500
0.88
Surface mount type (vertical mount style)
Polar
6.3
1500
-20 to 20
0.26
94.5
94.5
-55 to 105
8
10.5
100000
850
mArms
100000
80
3000
Embossed carrier taping (reel packing)
Sheathless (metal case)
500
500
500
0.96
Surface mount type (vertical mount style)
Polar
6.3
1500
-20 to 20
0.26
94.5
94.5
-55 to 105
8
10.5
100000
850
mArms
100000
80
2000
Embossed carrier taping (reel packing)
Sheathless (metal case)
500
500
500
0.96
Surface mount type (vertical mount style)
Polar
6.3
2200
-20 to 20
0.28
138.6
138.6
-55 to 105
10
10.5
100000
1190
mArms
100000
60
3000
Embossed carrier taping (reel packing)
Sheathless (metal case)
500
500
500
1.53
Surface mount type (vertical mount style)
Polar
6.3
2200
-20 to 20
0.28
138.6
138.6
-55 to 105
10
10.2
100000
1190
mArms
100000
60
2000
Embossed carrier taping (reel packing)
Sheathless (metal case)
500
500
500
1.29
Surface mount type (vertical mount style)
Polar
10
1500
-20 to 20
0.19
150
150
-55 to 105
10
10.5
100000
1190
mArms
100000
60
2000
Embossed carrier taping (reel packing)
Sheathless (metal case)
500
500
500
1.53
