Electronic Equipment Use

Low-ESR, No Shock or Audible Noise and No Piezoelectric Effect

Panasonic Film Capacitors offer stable capacitance and temperature characteristics, tight tolerances, low-ESR and low dissipation factors. Available in Surface-Mount (SMT) and radial leaded types, including Metallized Polypropylene Class X2 Capacitors. Functionality offered in the Film Capacitor product line for Electronic Equipment Use include high temperature and high reliability without shock noise, piezoelectric effect and audible noise.

Film Capacitors for MLCC Replacement

The Film Capacitor product line features many suggested MLCC Alternative Series, which include ECW-U(C), ECW-U(X), ECH-U(X), ECH-U(C), ECW-U(V16), and ECP-U(A).

Series table for lineup Electronic Equipment Use
Series/Type	Applications	Shape	Features	Operating Temperature Range (°C)	Reach (Report of Confirmation)	Capacitance Range (µF)	Capacitance Tolerance (%)	Dielectric Material	RoHS (Compliance Certificate)	Rated Voltage Range (AC/DC) (V)

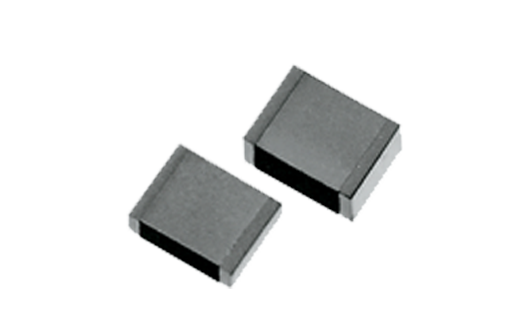

ECHU(X)	High-accuracy circuit (Time constant circuit and oscillation circuit, etc)	Surface mount type	･SMD type ･Low loss ･Highly accurate capacitance ･THB 500h guarantee ･Reflow only ･For High-accuracy circuit	-55 to +125	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	0.00010 to 0.22	±2, ±5%	PPS	RoHS compliant (Please refer to the Related Information.)	16 [DC] 50 [DC]
ECHU(C)	High-accuracy circuit (Time constant circuit and oscillation circuit, etc)	Surface mount type	･SMD type ･Low loss ･Highly accurate capacitance ･Reflow only ･For High-accuracy circuit	-55 to +105	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	0.010 to 0.22	±2, ±5	PPS	RoHS compliant (Please refer to the Related Information.)	100 [DC]
ECWU(X)	General use	Surface mount type	･SMD type ･THB 500h guarantee ･Reflow only ･General use	-55 to +105	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	0.0010 to 0.010	±5	PEN	RoHS compliant (Please refer to the Related Information.)	100 [DC]
ECWU(C)	General use	Surface mount type	･SMD type ･Reflow only ･General use	-55 to +125	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	0.0010 to 1.0	±5, ±10	PEN	RoHS compliant (Please refer to the Related Information.)	100 [DC] 250 [DC] 630 [DC]
ECWU(V16)	For xDSL DC-blocking	Surface mount type	･SMD type ･Reflow only ･For xDSL DC-blocking	-55 to +85	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	0.001 to 0.12	±5	PEN	RoHS compliant (Please refer to the Related Information.)	250 [DC]
ECPU(A)	Noise suppression Audio circuit	Surface mount type	･SMD type ･Large capacitance ･Reflow only ･Noise suppression/ Audio circuit	-40 to +85	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	0.10 to 1.0	±20	Plastic resin	RoHS compliant (Please refer to the Related Information.)	16 [DC] 50 [DC]

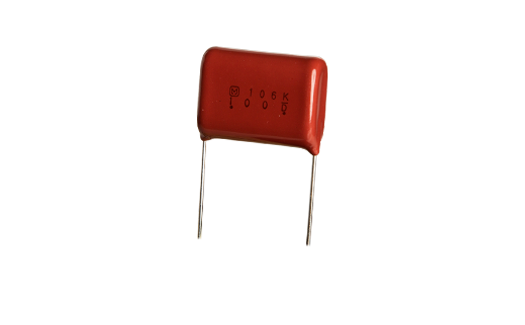

ECQE(F) [DC Rated]	General use	Powder resin coated Lead wire type	･Standard type ･Wide voltage and capacitance range ･General use	-40 to +105	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	0.0010 to 10	±5, ±10	PET	RoHS compliant (Please refer to the Related Information.)	100 [DC] 250 [DC] 400 [DC] 630 [DC] 1000 [DC] 1250 [DC]

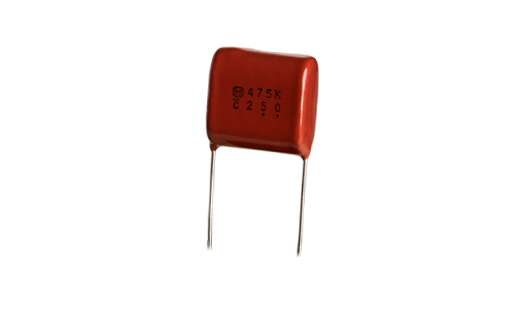

ECQE(B) [DC Rated]	General use	Powder resin coated Lead wire type	･Miniaturization type of ECQE(F) ･General use	-40 to +105	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	0.010 to 4.7	±5, ±10	PET	RoHS compliant (Please refer to the Related Information.)	250 [DC]
ECQE(T) [DC Rated]	General use	Powder resin coated Lead wire type	･High moisture resistance type ･General use	-40 to +105	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	0.010 to 10	±5, ±10	PET	RoHS compliant (Please refer to the Related Information.)	250 [DC] 400 [DC] 630 [DC]
ECW-F(L)	High frequency circuit (For smoothing and filter, etc.)	Powder resin coated Lead wire type	･Highly accurate capacitance ･Low loss ･THB 500 h guarantee ･For High frequency circuit (Smoothing, Filter, etc.)	-40 to +105	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	0.010 to 2.4	±3, ±5	PP	RoHS compliant (Please refer to the Related Information.)	400 [DC] 630 [DC]

Series table for lineup Electronic Equipment Use
Series/Type	Applications	Shape	Features	Operating Temperature Range (°C)	Reach (Report of Confirmation)	Capacitance Range (µF)	Capacitance Tolerance (%)	Dielectric Material	RoHS (Compliance Certificate)	Rated Voltage Range (AC/DC) (V)
ECHU(X)	High-accuracy circuit (Time constant circuit and oscillation circuit, etc)	Surface mount type	･SMD type ･Low loss ･Highly accurate capacitance ･THB 500h guarantee ･Reflow only ･For High-accuracy circuit	-55 to +125	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	0.00010 to 0.22	±2, ±5%	PPS	RoHS compliant (Please refer to the Related Information.)	16 [DC] 50 [DC]
ECHU(C)	High-accuracy circuit (Time constant circuit and oscillation circuit, etc)	Surface mount type	･SMD type ･Low loss ･Highly accurate capacitance ･Reflow only ･For High-accuracy circuit	-55 to +105	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	0.010 to 0.22	±2, ±5	PPS	RoHS compliant (Please refer to the Related Information.)	100 [DC]
ECWU(X)	General use	Surface mount type	･SMD type ･THB 500h guarantee ･Reflow only ･General use	-55 to +105	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	0.0010 to 0.010	±5	PEN	RoHS compliant (Please refer to the Related Information.)	100 [DC]
ECWU(C)	General use	Surface mount type	･SMD type ･Reflow only ･General use	-55 to +125	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	0.0010 to 1.0	±5, ±10	PEN	RoHS compliant (Please refer to the Related Information.)	100 [DC] 250 [DC] 630 [DC]
ECWU(V16)	For xDSL DC-blocking	Surface mount type	･SMD type ･Reflow only ･For xDSL DC-blocking	-55 to +85	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	0.001 to 0.12	±5	PEN	RoHS compliant (Please refer to the Related Information.)	250 [DC]
ECPU(A)	Noise suppression Audio circuit	Surface mount type	･SMD type ･Large capacitance ･Reflow only ･Noise suppression/ Audio circuit	-40 to +85	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	0.10 to 1.0	±20	Plastic resin	RoHS compliant (Please refer to the Related Information.)	16 [DC] 50 [DC]
ECQE(F) [DC Rated]	General use	Powder resin coated Lead wire type	･Standard type ･Wide voltage and capacitance range ･General use	-40 to +105	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	0.0010 to 10	±5, ±10	PET	RoHS compliant (Please refer to the Related Information.)	100 [DC] 250 [DC] 400 [DC] 630 [DC] 1000 [DC] 1250 [DC]
ECQE(B) [DC Rated]	General use	Powder resin coated Lead wire type	･Miniaturization type of ECQE(F) ･General use	-40 to +105	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	0.010 to 4.7	±5, ±10	PET	RoHS compliant (Please refer to the Related Information.)	250 [DC]
ECQE(T) [DC Rated]	General use	Powder resin coated Lead wire type	･High moisture resistance type ･General use	-40 to +105	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	0.010 to 10	±5, ±10	PET	RoHS compliant (Please refer to the Related Information.)	250 [DC] 400 [DC] 630 [DC]
ECW-F(L)	High frequency circuit (For smoothing and filter, etc.)	Powder resin coated Lead wire type	･Highly accurate capacitance ･Low loss ･THB 500 h guarantee ･For High frequency circuit (Smoothing, Filter, etc.)	-40 to +105	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	0.010 to 2.4	±3, ±5	PP	RoHS compliant (Please refer to the Related Information.)	400 [DC] 630 [DC]
