Specifications
| Item | Performance characteristics |
|---|---|

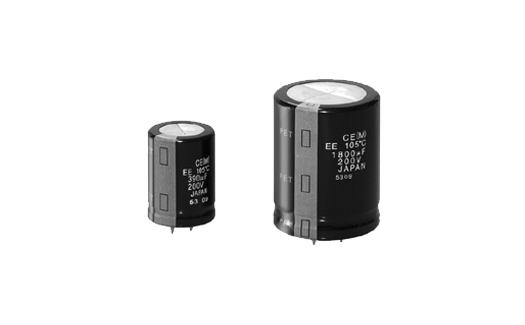

| Body Type | Snap-in type (2 terminal, terminal length=4.0mm) |
| Polarity Type | Polar |
| Rated Voltage (V) | 400 |
| Capacitance (µF) | 560 |
| Capacitance Tolerance (%) | -20 to 20 |
| Tangent Of Loss Angle (Max.) | 0.15 |
| Leakage Current (Max.) (μA) | 1419 |
| Leakage Current (Max) (micro A) | 1419 |
| Operating Temperature Range (°C) | -25 to 105 |
| Body Diameter (mm) | 35 |
| Body Length (mm) | 45 |
| Lead (Terminal) Pitch (mm) | 10 |
| Rated Ripple Current (Freq.) (Hz) | 120 |
| Rated Ripple Current (mA) | 3180 |
| Rated Ripple Current (Unit) | ｍArms |
| Endurance (h) | 3000 |
| Forming & Packaging Feature | Bulk (no lead/terminal forming) |
| Appearance | Sheathinges other than a P.V.C. sleeve (metal case) |
| Minimum Packaging Quantity (PCS.) | 100 |
| Minimum Packaging Quantity (pieces) | 100 |
| Minimum Packaging Quantity (piece) | 100 |
Stock check
EETEE2G561LJ
