SVPD Series

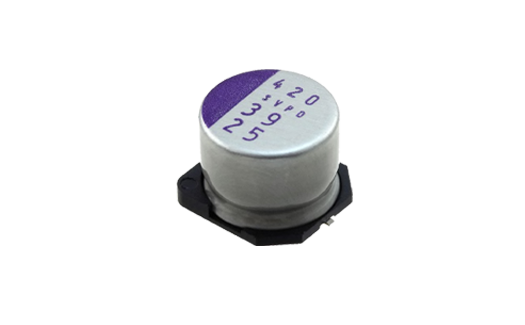

Panasonic's SVPD Series Surface Mount OS-CON™ Conductive Polymer Aluminum Capacitors have a broad Temperature Range of -55°C to +125°C and range in Rated Voltage from 10v to 35V.  These Capacitors have Capacitance values from 8.2uF to 82uF and are guaranteed 85°C/85%RH.

Features and Benefits of SVPD Series Capacitors

  • Halogen Free
  • RoHS Compliance

SVPD Series Capacitors - Applications

  • Audio/Visual Equipment
  • Home Appliances
  • Computers And Other Office Equipment
  • Optical Equipment
  • Measurement Equipment

Part Number List

Results 11
Models table for series SVPD Series
Part No.DatasheetRated Voltage (DC) (V)Body TypeCapacitance (µF)Polarity Type E.S.R.-1 (Max. Value) (mΩ)Rated Ripple Current (Rms) (mA)Rated Voltage (V)Leakage Current (Max.) (μA)Operating Temperature Range (°C)Tolerance on Capacitance (%)Endurance (h)Temperature Range (°C)Body Diameter (mm)Endurance (h)Endurance@Temp.-1Height (Max) (mm)Size Code Weight (Typ.) (g)Rated Ripple Current-1 (mArms)Rated Ripple Current-1 (temp.) (°C)Forming & Packaging FeatureRated Ripple Current-1 (freq.) (kHz)Rated Ripple Current-2 (mArms)Rated Ripple Current-2 (temp.) (°C)Rated Ripple Current-2 (freq.) (kHz)ESR (mΩ)ESR Frequency (kHz)ESR Frequency (Hz)Leakage Current [Max.] (μA)Dissipation Factor [Max.]Body Length (mm)Minimum Packaging Quantity (piece)Weight [Typ.] (g)
25
Surface mount type (vertical mount style)
47
Polar
30
943
25
235
-55 to 125
-20 to 20
2000
-55 to 125
8
2000
2000@125°C
12
E12
0.9
2980
T≦105
Embossed carrier taping (reel packing)
100
943
105<T≦125
100
30
100
100
235
0.12
11.9
400
0.86
35
Surface mount type (vertical mount style)
18
Polar
60
550
35
126
-55 to 125
-20 to 20
2000
-55 to 125
10
2000
2000@125°C
8
F8
0.9
1800
T≦105
Embossed carrier taping (reel packing)
100
550
105<T≦125
100
60
100
100
126
0.1
7.9
500
0.9
25
Surface mount type (vertical mount style)
39
Polar
45
664
25
195
-55 to 125
-20 to 20
2000
-55 to 125
10
2000
2000@125°C
8
F8
0.9
2100
T≦105
Embossed carrier taping (reel packing)
100
664
105<T≦125
100
45
100
100
195
0.1
7.9
500
0.9
25
Surface mount type (vertical mount style)
10
Polar
65
474
25
50
-55 to 125
-20 to 20
2000
-55 to 125
6.3
2000
2000@125°C
6
C6
0.27
1500
T≦105
Embossed carrier taping (reel packing)
100
474
105<T≦125
100
65
100
100
50
0.1
5.9
1000
0.27
35
Surface mount type (vertical mount style)
8.2
Polar
70
400
35
57
-55 to 125
-20 to 20
2000
-55 to 125
8
2000
2000@125°C
7
E7
0.5
1300
T≦105
Embossed carrier taping (reel packing)
100
400
105<T≦125
100
70
100
100
57
0.1
6.9
1000
0.51
35
Surface mount type (vertical mount style)
22
Polar
50
700
35
154
-55 to 125
-20 to 20
2000
-55 to 125
8
2000
2000@125°C
12
E12
0.9
2300
T≦105
Embossed carrier taping (reel packing)
100
700
105<T≦125
100
50
100
100
154
0.12
11.9
400
0.86
35
Surface mount type (vertical mount style)
47
Polar
30
1150
35
329
-55 to 125
-20 to 20
2000
-55 to 125
10
2000
2000@125°C
12.7
F12
1.3
3650
T≦105
Embossed carrier taping (reel packing)
100
1150
105<T≦125
100
30
100
100
329
0.12
12.6
400
1.33
25
Surface mount type (vertical mount style)
22
Polar
48
580
25
110
-55 to 125
-20 to 20
2000
-55 to 125
8
2000
2000@125°C
7
E7
0.5
1835
T≦105
Embossed carrier taping (reel packing)
100
580
105<T≦125
100
48
100
100
110
0.1
6.9
1000
0.51
10
Surface mount type (vertical mount style)
56
Polar
45
538
10
112
-55 to 125
-20 to 20
2000
-55 to 125
6.3
2000
2000@125°C
6
C6
0.27
1700
T≦105
Embossed carrier taping (reel packing)
100
538
105<T≦125
100
45
100
100
112
0.12
5.9
1000
0.27
16
Surface mount type (vertical mount style)
82
Polar
40
670
16
262
-55 to 125
-20 to 20
2000
-55 to 125
8
2000
2000@125°C
7
E7
0.5
2120
T≦105
Embossed carrier taping (reel packing)
100
670
105<T≦125
100
40
100
100
262
0.12
6.9
1000
0.51
