SEPF Series

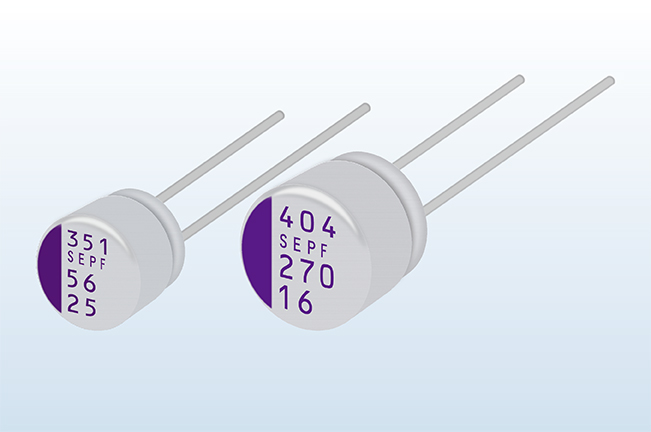

Panasonic's SEPF Series OS-CON™ Conductive Polymer Aluminum Radial Leaded Solid Capacitors have Rated Voltages ranging from 16V to 35V and Capacitance values ranging from 22uF to 1000uF. These Capacitors offer a Temperature Range from -55°C to +105°C, 5000h.

Features and Benefits of SEPF Series Capacitors

High Voltage
Large Capacitance
Halogen Free
RoHS Compliance

SEPF SeriesCapacitors - Applications

Audio/Visual Equipment
Home Appliances
Computers And Other Office Equipment
Optical Equipment
Measurement Equipment

SEPF Series

Part number list

Results 19

Models table for series SEPF Series
Part No.	Rated Voltage (DC) (V)	Body Type	Capacitance (µF)	Polarity Type	E.S.R.-1 (Max. Value) (mΩ)	Rated Ripple Current (Rms) (mA)	Rated Voltage (V)	Leakage Current (Max.) (μA)	Operating Temperature Range (°C)	Tolerance on Capacitance (%)	Endurance (h)	Temperature Range (°C)	Body Diameter (mm)	Endurance (h)	Endurance@Temp.-1	Height (Max) (mm)	Size Code	Weight (Typ.) (g)	Rated Ripple Current-1 (mArms)	Rated Ripple Current-1 (temp.) (°C)	Forming & Packaging Feature	Rated Ripple Current-1 (freq.) (kHz)	ESR (mΩ)	ESR Frequency (kHz)	ESR Frequency (Hz)	Leakage Current [Max.] (μA)	Dissipation Factor [Max.]	Body Length (mm)	Number of Terminals	Lead (Terminal) Pitch (mm)	Minimum Packaging Quantity (piece)	Weight [Typ.] (g)
16SEPF150M	16	Radial lead type	150	Polar	30	2590	16	480	-55 to 105	-20 to 20	5000	-55 to 105	6.3	5000	5000@105°C	5.5	C55	0.33	2590	105	No lead terminal forming (bulk, bag packing)	100	30	100	100	480	0.12	5.5	2	2.5	500	0.33
20SEPF120M	20	Radial lead type	120	Polar	25	3200	20	480	-55 to 105	-20 to 20	5000	-55 to 105	6.3	5000	5000@105°C	6	C6	0.35	3200	105	No lead terminal forming (bulk, bag packing)	100	25	100	100	480	0.12	6	2	2.5	500	0.35
25SEPF180M	25	Radial lead type	180	Polar	16	4650	25	900	-55 to 105	-20 to 20	5000	-55 to 105	8	5000	5000@105°C	12	E12	0.9	4650	105	No lead terminal forming (bulk, bag packing)	100	16	100	100	900	0.12	12	2	3.5	200	0.89
20SEPF390M	20	Radial lead type	390	Polar	14	4950	20	1560	-55 to 105	-20 to 20	5000	-55 to 105	8	5000	5000@105°C	12	E12	0.9	4950	105	No lead terminal forming (bulk, bag packing)	100	14	100	100	1560	0.12	12	2	3.5	200	0.89
16SEPF270M	16	Radial lead type	270	Polar	22	3300	16	864	-55 to 105	-20 to 20	5000	-55 to 105	8	5000	5000@105°C	7	E7	0.5	3300	105	No lead terminal forming (bulk, bag packing)	100	22	100	100	864	0.12	7	2	3.5	200	0.51
25SEPF330M	25	Radial lead type	330	Polar	14	5000	25	1650	-55 to 105	-20 to 20	5000	-55 to 105	10	5000	5000@105°C	13	F13	1.4	5000	105	No lead terminal forming (bulk, bag packing)	100	14	100	100	1650	0.12	13	2	5	200	1.37
20SEPF560M	20	Radial lead type	560	Polar	12	5400	20	2240	-55 to 105	-20 to 20	5000	-55 to 105	10	5000	5000@105°C	13	F13	1.4	5400	105	No lead terminal forming (bulk, bag packing)	100	12	100	100	2240	0.12	13	2	5	200	1.37
32SEPF22M	32	Radial lead type	22	Polar	35	2400	32	140	-55 to 105	-20 to 20	5000	-55 to 105	6.3	5000	5000@105°C	5.5	C55	0.33	2400	105	No lead terminal forming (bulk, bag packing)	100	35	100	100	140	0.12	5.5	2	2.5	500	0.33
20SEPF180M	20	Radial lead type	180	Polar	25	3200	20	720	-55 to 105	-20 to 20	5000	-55 to 105	8	5000	5000@105°C	7	E7	0.5	3200	105	No lead terminal forming (bulk, bag packing)	100	25	100	100	720	0.12	7	2	3.5	200	0.51
35SEPF39M	35	Radial lead type	39	Polar	30	2800	35	273	-55 to 105	-20 to 20	5000	-55 to 105	8	5000	5000@105°C	7	E7	0.5	2800	105	No lead terminal forming (bulk, bag packing)	100	30	100	100	273	0.12	7	2	3.5	200	0.51

Models table for series SEPF Series
Part No.	Rated Voltage (DC) (V)	Body Type	Capacitance (µF)	Polarity Type	E.S.R.-1 (Max. Value) (mΩ)	Rated Ripple Current (Rms) (mA)	Rated Voltage (V)	Leakage Current (Max.) (μA)	Operating Temperature Range (°C)	Tolerance on Capacitance (%)	Endurance (h)	Temperature Range (°C)	Body Diameter (mm)	Endurance (h)	Endurance@Temp.-1	Height (Max) (mm)	Size Code	Weight (Typ.) (g)	Rated Ripple Current-1 (mArms)	Rated Ripple Current-1 (temp.) (°C)	Forming & Packaging Feature	Rated Ripple Current-1 (freq.) (kHz)	ESR (mΩ)	ESR Frequency (kHz)	ESR Frequency (Hz)	Leakage Current [Max.] (μA)	Dissipation Factor [Max.]	Body Length (mm)	Number of Terminals	Lead (Terminal) Pitch (mm)	Minimum Packaging Quantity (piece)	Weight [Typ.] (g)
16SEPF150M	16	Radial lead type	150	Polar	30	2590	16	480	-55 to 105	-20 to 20	5000	-55 to 105	6.3	5000	5000@105°C	5.5	C55	0.33	2590	105	No lead terminal forming (bulk, bag packing)	100	30	100	100	480	0.12	5.5	2	2.5	500	0.33
20SEPF120M	20	Radial lead type	120	Polar	25	3200	20	480	-55 to 105	-20 to 20	5000	-55 to 105	6.3	5000	5000@105°C	6	C6	0.35	3200	105	No lead terminal forming (bulk, bag packing)	100	25	100	100	480	0.12	6	2	2.5	500	0.35
25SEPF180M	25	Radial lead type	180	Polar	16	4650	25	900	-55 to 105	-20 to 20	5000	-55 to 105	8	5000	5000@105°C	12	E12	0.9	4650	105	No lead terminal forming (bulk, bag packing)	100	16	100	100	900	0.12	12	2	3.5	200	0.89
20SEPF390M	20	Radial lead type	390	Polar	14	4950	20	1560	-55 to 105	-20 to 20	5000	-55 to 105	8	5000	5000@105°C	12	E12	0.9	4950	105	No lead terminal forming (bulk, bag packing)	100	14	100	100	1560	0.12	12	2	3.5	200	0.89
16SEPF270M	16	Radial lead type	270	Polar	22	3300	16	864	-55 to 105	-20 to 20	5000	-55 to 105	8	5000	5000@105°C	7	E7	0.5	3300	105	No lead terminal forming (bulk, bag packing)	100	22	100	100	864	0.12	7	2	3.5	200	0.51
25SEPF330M	25	Radial lead type	330	Polar	14	5000	25	1650	-55 to 105	-20 to 20	5000	-55 to 105	10	5000	5000@105°C	13	F13	1.4	5000	105	No lead terminal forming (bulk, bag packing)	100	14	100	100	1650	0.12	13	2	5	200	1.37
20SEPF560M	20	Radial lead type	560	Polar	12	5400	20	2240	-55 to 105	-20 to 20	5000	-55 to 105	10	5000	5000@105°C	13	F13	1.4	5400	105	No lead terminal forming (bulk, bag packing)	100	12	100	100	2240	0.12	13	2	5	200	1.37
32SEPF22M	32	Radial lead type	22	Polar	35	2400	32	140	-55 to 105	-20 to 20	5000	-55 to 105	6.3	5000	5000@105°C	5.5	C55	0.33	2400	105	No lead terminal forming (bulk, bag packing)	100	35	100	100	140	0.12	5.5	2	2.5	500	0.33
20SEPF180M	20	Radial lead type	180	Polar	25	3200	20	720	-55 to 105	-20 to 20	5000	-55 to 105	8	5000	5000@105°C	7	E7	0.5	3200	105	No lead terminal forming (bulk, bag packing)	100	25	100	100	720	0.12	7	2	3.5	200	0.51
35SEPF39M	35	Radial lead type	39	Polar	30	2800	35	273	-55 to 105	-20 to 20	5000	-55 to 105	8	5000	5000@105°C	7	E7	0.5	2800	105	No lead terminal forming (bulk, bag packing)	100	30	100	100	273	0.12	7	2	3.5	200	0.51
