Filters: EMI Filters

EMI Filters design engineers Panasonic

EMI (ElectroMagnetic Interference) Filters are L-C filters that consist of a ferrite core and an MLCC. EMI Filters suppress electromagnetic noise.

The FCC has requirements (noise regulations) that limit the amount of noise that a device can emit, EMI Filters are used to help devices fall within government noise limits.

Panasonic EMI Filters are available in Surface Mount packages that are highly effective in noise suppression and data integrity preservation applications.

Line Up

Series/TypeData SheetImageFeaturesOperating temperatureRated VoltageRated CurrentRoHS (Compliance Certificate)REACH (Report of Confirmation)

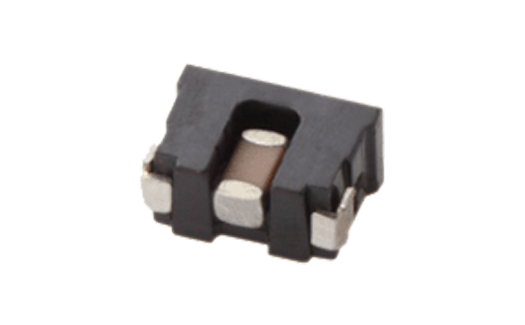

Coil type EMI Filters*3218 case size, 6 A rated current.(Type ELKEA)
*3218 case size, 2 A rated current.(Type ELKE)
*High ESD suppression with varistor and included coils.(Type ELKEV)
*No variation in attenuation characteristics as current changes.
*The stable P/N marking using laser technology makes the part number check easier.
-40 to +85 deg.C*DC 50V, 25V
*Applicable normal voltage for varistor(Type ELKEV)
DC 6 A(Type ELKEA)
DC 2 A
CertificateReport of Confirmation
