ERZA20GS173H

Specifications

Specifications table for model ERZA20GS173H
ItemPerformance characteristics
Element Size20 Series
Width (mm)127
Thickness [SMD: Length] (mm)54
Height (mm)200
Varistor Voltage (V)17000
Varistor Voltage (Range) (V)16000 to 18500
Maximum Allowable Voltage ACrms (V)6900
Clamping Voltage (Max.) (V)25500
Maximum Energy (2ms) (J)2600
Maximum Peak Current (8/20 µs) (A)5000
Weight (Typ.) (g)600

Stock check

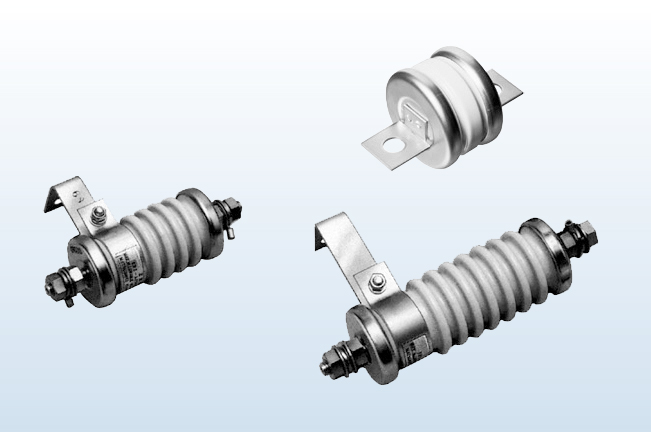

Model image for ERZA20GS173H

ERZA20GS173H
