Non-Linear Resistors: NTC SMD Thermistors

NTC SMD Thermistors design engineers Panasonic
NTC Thermistors - ERT-J series

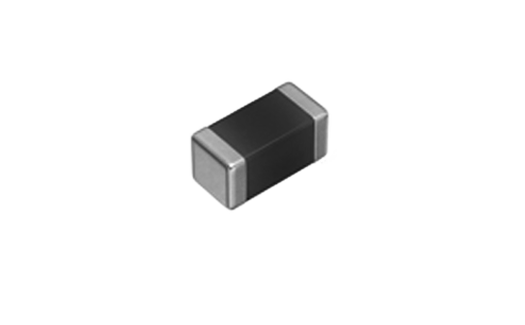

NTC (Negative Temperature Coefficient) SMD Thermistors are multilayer devices that inversely change resistance value according to temperature. NTC SMD Thermistors detect, measure or compensate for temperature. For example, these Thermistors can be used to monitor battery charging to sense when the battery is fully charged.

Panasonic offers Surface Mount NTC Thermistors in a wide selection of values. Panasonic’s Thermistors are excellent in temperature detection and compensation applications and are small, lightweight and suitable for high density placement.

Line Up

Series/TypeData SheetImageFeaturesZero-Power Resistance at 25CelB Value (K)Heat Dissipation Constant (mW/Cel)AEC-Q200 qualifiedRoHS (Compliance Certificate)REACH (Report of Confirmation)

NTC Thermistors for automotive devices (chip type)Surface Mount Device (0402, 0603)
Highly reliable multilayer / monolithic structure
Wide temperature operating range (-40 to +150deg.)
10kohm, 47kohm, 100kohm, 220kohm, 470kohm3380 to 47503, 2AEC-Q200 qualifiedCertificateReport of Confirmation
NTC Thermistor(Chip type)Surface Mount Device (0201, 0402, 0603)
Highly reliable multilayer/monolithic structure
Wide ranges of operating temperature(-40to125deg.)
22ohm to 470kohm2750 to 47003, 2, 1n/aCertificateReport of Confirmation
