FPC/FFC Connectors

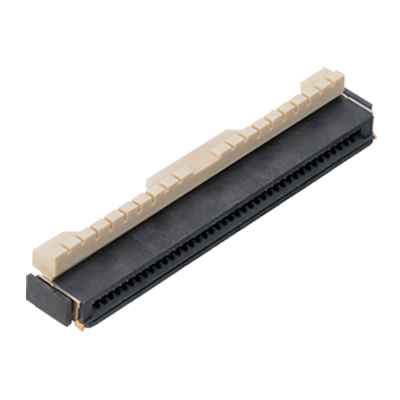

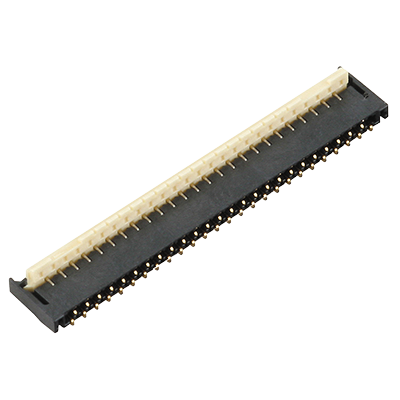

Connectors for flexible printed circuits (FPC) and flat flex cables (FFC). Height 0.9 to 2.0mm. Pitch between terminals 0.2/0.5mm. FPC / FFC is a one-piece type Connector that makes the connection with a directly-inserted FFC or FPC and locks it by means of a lever. This type of Connector can be used in a wide range of digital devices when a low profile or the horizontal insertion of flex is required.

Panasonic Connector Series

  • 0.2mm Pitch: Y2B Series
  • 0.3mm Pitch: Y3BL Series, Y3B/W Series, Y3BC Series
  • 0.5mm Pitch: Y5B Series

Series List

Results 7
Series table for lineup FPC/FFC Connectors
Series/TypeDatasheet0.2mm PitchFor FPCShort Width Body Height0.4mm PitchRated Current0.3mm PitchFor FPC/FFC0.5mm PitchNo. of Pins
1
1
2.95mm
0.9mm
0.2A/pin contact (Max. 5 A at total pin contacts)
23 to 61
1
3.20mm
1.0mm
0.2A/pin contact (Max. 5 A at total contacts)
1
25 to 39
1
2.95mm
0.6mm
0.2A/pin contact (Max. 5 A at total contacts)
1
7 to 51
1
2.95mm
0.9mm
0.2A/pin contact (For min. 61 pins: Max. 12 A at total contacts)
1
7 to 71
3.2mm
1.0mm
0.5A/pin contact (except for holding contact)
1
1
2 to 50
3.9mm
1.8mm
0.4A/pin contact
1
1
40
3.2mm
1.0mm
1
0.3A/pin contact
1
40,50
