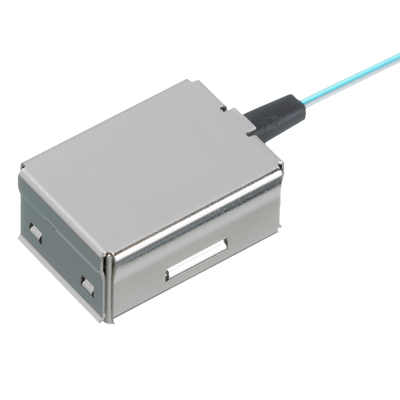

Specifications table for model AYG4V1A085M3
ItemPerformance characteristics
Transmission Specifications1 channel-Bi-direction
Receptacle/Plug Integrated cable and plug
Cable Length1000mm
Family Name (Head of Product No.)AYG4V
Transmission Rate 20 Mbps to 8 Gbps/ch
ApplicationsMeasuring equipment, Image processing instrument,
Industrial robots, Printer, Medical equipment, etc. and other high speed transmission, noise reduction and electrical isolation applications
Body Length (mm)12.7
Body Height (mm)5.90
Short Width 9.1
Mated Height (mm)6.5
Supply Voltage 3.3V (Typical)
Power Consumption230mW (Max.)
Ambient Temperature0 °C to +70°C
Packing Quantity100 pieces
