Specifications

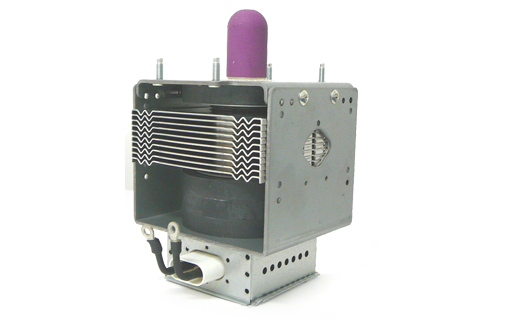

Specifications table for model 2M265
ItemPerformance characteristics
Power (W)3,000
Frequency (MHz)2455
Cooling TypeAir/Water
Filament Voltage (Ef,V)2.2
Filament Current (lf, A)22
Anode Voltage (ebm, kV)5.1
Anode Current (lb, mA)840
Dimensions (L x W x H) (mm)123 x 128 x 139 (107)
Weight (kg)3.0/3.6

Stock check

2M265
