Specifications
Item | Performance characteristics |
---|---|
Series Name | Coupling Lens (CAN type) |
Design Wavelength (nm) | 1570 |
Suitable Wavelength (T>97%) (nm) | 1260 to 1625 |
Focal Length (mm) | 1.48 |
Working Distance (mm) | 2.15 |
Conjugate Distance (mm) | 12.1 |
Magnification | 4.2 |
N.A. S1 | 0.59 |
N.A. S2 | Coupling Lens (CAN type) |
Effective Diameter S1 (mm) | 1.6 |
Effective Diameter S2 (mm) | 2.12 |
Lens Diameter (mm) | 5 |
Lens Heigth (mm) | 4.93 |
Glass Material | K-VC89 |
Weight (Typ.) (mg) | 280.1 |
Stock check

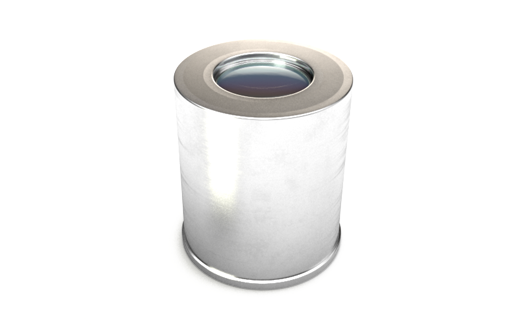

EYL-GMFB463R
