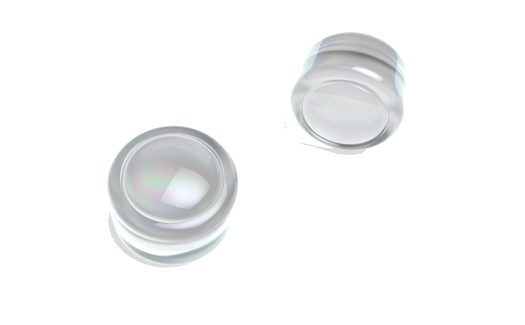

EYL-GUFB508A
Specification
| Item | Performance characteristics |
|---|---|
| Series Name | Coupling Lens (Bare type) |
| Design Wavelength (nm) | 1310 |
| Suitable Wavelength (T>97%) (nm) | 1260 to 1625 |
| Focal Length (mm) | 0.55 |
| Working Distance (mm) | 0.25 |
| Conjugate Distance (mm) | 3.98 |
| Magnification | 5.3 |
| N.A. S1 | 0.58 |
| N.A. S2 | Coupling Lens (Bare type) |
| Effective Diameter S1 (mm) | 0.4 |
| Effective Diameter S2 (mm) | 0.7 |
| Lens Diameter (mm) | 1 |
| Lens Thickness (mm) | 0.81 |
| Glass Material | K-VC79 |
| Weight (Typ.) (mg) | 1.5 |
