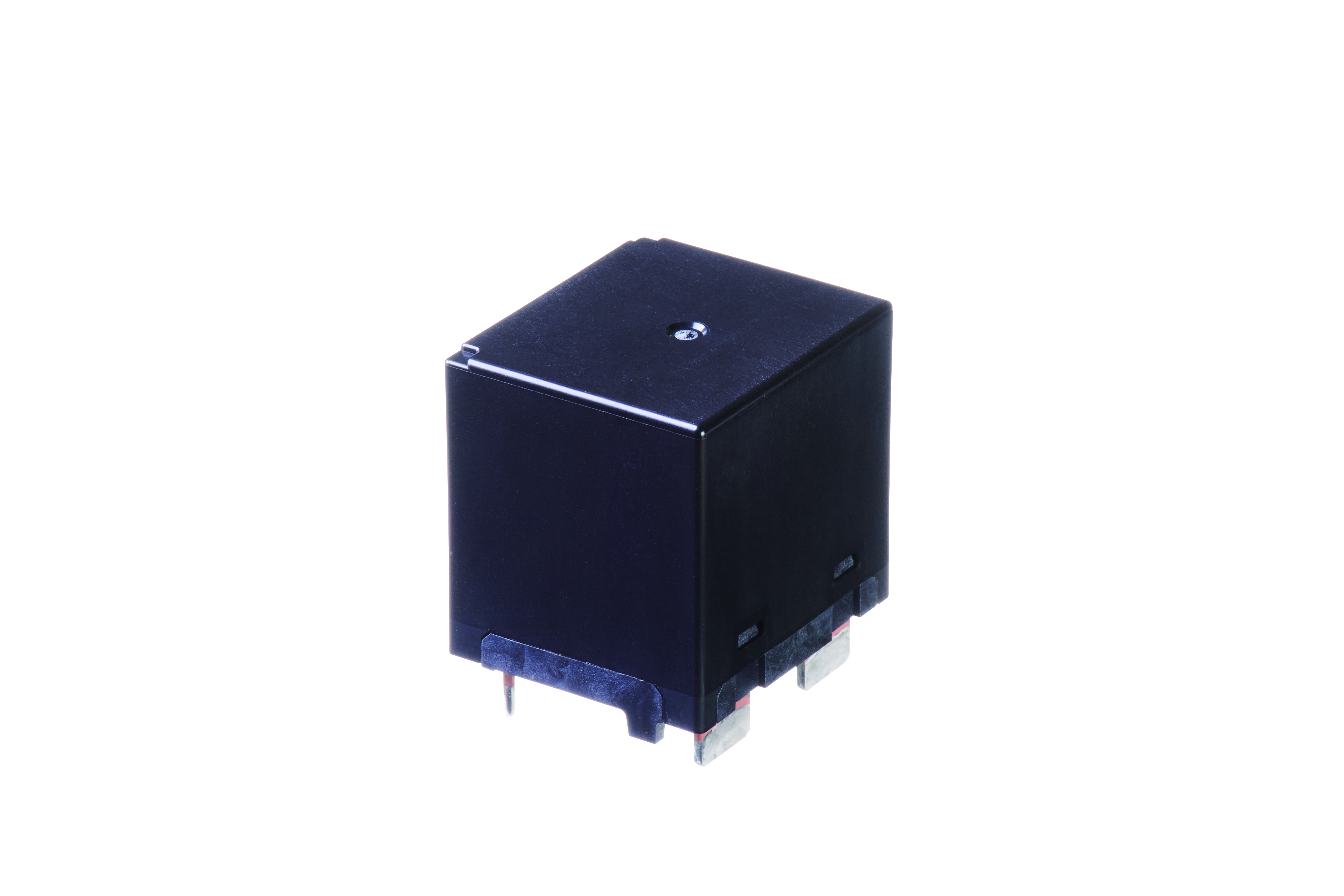

AHEA3191

Specifications table for model AHEA3191
Item	Performance characteristics
Rated Coil Voltage	12 V DC
Contact Arrangement	1 Form A
Protective Construction	Flux-resistant
Operating Function	Single side stable
Terminal Type	PC board terminal
Contact Type	Standard type
Packing Quantity; Inner Carton (Pcs.)	25
Packing Quantity; Outer Carton (Pcs.)	100
Operate Voltage (@20oC)	Max. 75% V of rated coil voltage (Initial)
Release Voltage (at20°C)	Min. 5% V of rated coil voltage (Initial)
Rated Operating Current [±10%] (at 20°C)	160 mA
Resistance [±10%] (at 20°C)	75 Ω
Rated Operating Power	1,920 mW Holding: 310 mW
Max. Allowable Voltage	(at 55℃) 110% V of rated coil voltage
Contact Shape	Single
Contact Resistance (Initial)	Max. 10 mΩ (by voltage drop 6 V DC 20 A)
Contact Material	AgNi type
Contact rating (Inductive load)	90 A 277 V AC cosφ = 0.8
Contact Rating (Resistive Load)	60 A 490 V AC, 55 A 800 V AC, 90 A 60 V DC
Max. Switching Power (Resistive Load)	44,000 VA, 5,400 W
Max. Switching Voltage	800 V AC, 60 V DC
Max. Switching Current	90 A
Max. switching current (Inductive load)	90 A
Max. carrying current	110 A
Min. Switching Load (Reference Value)	100 mA 5 V DC
Insulation Resistance (Initial)	Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength)
Dielectric Strength (Initial): Between Open Contacts	Between open Form A contacts: 2,000 Vrms for 1min (detection current: 10 mA) Between open Form B contacts: 1,000 Vrms for 1min (detection current: 10 mA)
Dielectric Strength (Initial): Between Contact and Coil	Between Form A contact and coil: 5,000 Vrms for 1min (detection current: 10 mA) Between Form B contact and coil: 2,000 Vrms for 1min (detection current: 10 mA)
Dielectric Strength: Between Form A Contact and Form B Contact	5,000 Vrms for 1min (detection current: 10 mA)
Surge Withstand Voltage (Initial): Between Contact and Coil	10,000 V (Between Form A contact and coil) 2,500 V (Between Form B contact and coil)
Coil Holding Voltage	40 to 110% V (at -40 to +55℃), 40 to 60% V (at +55 to +85℃)
Operate Time (Initial) (At 20oC)	Max. 30 ms at rated coil voltage (without bounce)
Release Time (Initial) (at 20°C)	Max. 10 ms at rated coil voltage (without bounce, without diode)
Hock Resistance (Functional)	98 m/s² (half-sine shock pulse: 11 ms, detection time: 10 μs)
Hock Resistance (Destructive)	980 m/s² (half-sine shock pulse: 6 ms)
Vibration Resistance (Functional)	10 to 55 Hz (at double amplitude of 1.0 mm, detection time: 10 μs)
Vibration Resistance (Destructive)	10 to 55 Hz (at double amplitude of 1.5 mm)
Mechanical Life	Min. 10⁶ ope. (switching frequency: at 180 times/min)
Conditions	Ambient temperature: -40 to +55℃ (When applied coil hold voltage is 40 to 110 % V of rated coil voltage.) Ambient temperature: -40 to +85℃ (When applied coil hold voltage is 40 to 60 % V of rated coil voltage or storage.) Humidity: 5 to 85% RH (Avoid icing and condensation)
Weight (Typ.)	Approx. 80g
Inductive Load	[Switching capacity] 90 A 277 V AC cosφ = 0.8 [Number of operations] Min. 10³ ope. (ON : OFF = 1 s : 9 s, at 85℃)
Resistive Load	[Switching capacity] 60 A 490 V AC [Number of operations] Min. 10x10³ ope. (ON：OFF = 1s：9s) [Switching capacity] 55 A 800 V AC [Number of operations] Min. 10³ ope. (ON：OFF = 1s：9s) [Switching capacity] 40 A 600 V AC [Number of operations] Min. 50x10³ ope. (ON：OFF = 1s：9s, 85℃) [Switching capacity] 30 A 800 V AC [Number of operations] Min. 50x10³ ope. (ON：OFF = 1s：9s, 85℃) [Switching capacity] 90 A 60 V DC [Number of operations] Min. 10x10³ ope. (ON：OFF = 1s：9s, 85℃)
