Specification

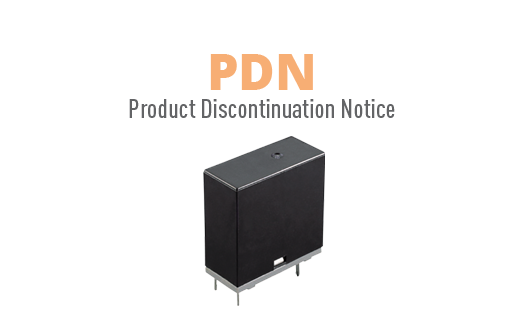

Specifications table for model LKQ1aF-5V-TV8
ItemPerformance characteristics
TV StandardsTV-8
Rated Coil Voltage5 V DC
Contact Arrangement1 Form A
Protective ConstructionFlux-resistant
Operating Function Single side stable
Terminal TypePC board terminal
Type ClassificationSilent type
Packing Quantity; Inner Carton (Pcs.) 100
Packing Quantity; Outer Carton (Pcs.)500
Operate Voltage (@20oC)Max. 80% V of Rated coil voltage (initial)
Release Voltage (at20°C) Min. 10% V of Rated coil voltage (initial)
Rated Operating Current [±10%] (at 20°C)50.0 mA
Resistance [±10%] (at 20°C) 100 Ω
Rated Operating Power 250 mW
Max. Allowable Voltage (at 20°C 68°F)130% V of Rated coil voltage
Contact ShapeSingle
Contact Resistance (Initial)Max. 100 mΩ (by voltage drop 6 V DC 1 A)
Contact MaterialAgSnO2 type
Contact Rating (Resistive Load)8 A 277 V AC
Max. Switching Power (Resistive Load) 2,216 VA
Max. Switching Voltage277 V AC
Max. Switching Current8 A (AC)
Min. Switching Load (Reference Value) 100 mA 5 V DC
Insulation Resistance (Initial)Min. 1,000 MΩ (At 500 V DC, Measured portion is the same as the case of dielectric strength.)
Dielectric Strength (Initial): Between Open Contacts1,000 Vrms for 1 min. (detection current: 10 mA)
Dielectric Strength (Initial): Between Contact and Coil4,000 Vrms for 1 min. (detection current: 10 mA)
Surge Withstand Voltage (Initial): Between Contact and Coil10,000 V
Operate Time (Initial) (At 20oC)Max. 15 ms (at rated coil voltage, without bounce)
Release Time (Initial) (at 20°C) Max. 5 ms (at rated coil voltage, without bounce, without diode)
Hock Resistance (Functional)200 m/s2 (half-sine shock pulse: 11 ms, detection time: 10 µs)
Hock Resistance (Destructive)1,000 m/s2 (half-sine shock pulse: 6 ms)
Vibration Resistance (Functional)10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 µs)
Vibration Resistance (Destructive)10 to 55 Hz (at double amplitude of 1.5 mm)
Mechanical LifeMin. 1x106 ope. (at 180 times/min.)
ConditionsAmbient temperature: -40 to +70°C
Humidity: 5 to 85% R.H. (Avoid icing and condensation)
Weight (Typ.)Approx. 12 g
Resistive LoadMin. 50,000 ope. 8 A 277 V AC (at 20°C, ON : OFF = 1.5 s : 1.5 s)
