JT-V Series Relays

The JT-V Series Relays are being discontinued. Please consult Panasonic Product Discontinuation Notice For JT-N, JT-V, LK-P, LK-T, JS, JS-M, JQ, PQ, LE, RE Series Relays PDN.PG0006-PG0002.3.15.2021 for Affected Part Numbers.

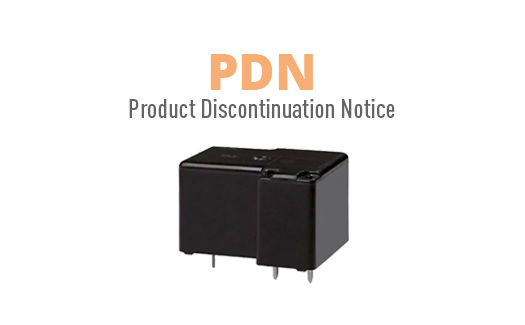

Series image for JT-V Series Relays

JT-V Series Relays

Part number list

Results 32
Models table for series JT-V Series Relays
Part No.DatasheetProtective ConstructionTerminal TypeRated Coil VoltageContact ArrangementOperating Function Coil Insulation ClassPacking Quantity; Inner Carton (Pcs.) Packing Quantity; Outer Carton (Pcs.)Operate Voltage (@20oC)Release Voltage (at20°C) Rated Operating Current [±10%] (at 20°C)Resistance [±10%] (at 20°C) Rated Operating Power Max. Allowable Voltage Contact ShapeContact Resistance (Initial)Contact MaterialContact Rating (Resistive Load)Max. Switching Power (Resistive Load) Max. Switching VoltageMax. Switching CurrentMin. Switching Load (Reference Value) Insulation Resistance (Initial)Dielectric Strength (Initial): Between Open ContactsDielectric Strength (Initial): Between Contact and CoilSurge Withstand Voltage (Initial): Between Contact and CoilOperate Time (Initial) (At 20oC)Release Time (Initial) (at 20°C) Hock Resistance (Functional)Hock Resistance (Destructive)Vibration Resistance (Functional) Vibration Resistance (Destructive)Mechanical LifeConditionsWeight (Typ.)Resistive Load
JTV1aG-TMP-18V
Dust Cover
Tab terminal (TMP type)
18 V DC
1 Form A
Single side stable
Class F insulation
50
300
Max. 75% V of Rated coil voltage (initial)
Min. 10% V of Rated coil voltage (initial)
55.6 mA
324 Ω
1000 mW
120% V of Rated coil voltage (at 85°C)
Single
Max. 50 mΩ (by voltage drop 6 V DC 1 A)
AgSnO2 type
20 A 277 V AC
8,310 VA
277 V AC
30 A (AC)
100 mA 5 V DC
Min. 100 MΩ (At 500 V DC, Measured portion is the same as the case of dielectric strength.)
1,200 Vrms for 1 min. (detection current: 10 mA)
3,500 Vrms for 1 min. (detection current: 10 mA)
6,000 V
Max. 15 ms (at rated coil voltage, without bounce)
Max. 10 ms (at rated coil voltage, without bounce, without diode)
98 m/s2 (half-sine shock pulse: 11 ms, detection time: 10 µs)
980 m/s2 (half-sine shock pulse: 6 ms)
10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 µs)
10 to 55 Hz (at double amplitude of 2.0 mm)
Min. 1x107 ope. (at 180 times/min.)
Ambient temperature: -55 to +85°C
Humidity: 5 to 85% R.H. (Avoid icing and condensation)
Approx. 30 g
Min. 100,000 ope. 20 A 277 V AC (at 20°C, at 20 times/min.)
JTV1aG-TMP-24V
Dust Cover
Tab terminal (TMP type)
24 V DC
1 Form A
Single side stable
Class F insulation
50
300
Max. 75% V of Rated coil voltage (initial)
Min. 10% V of Rated coil voltage (initial)
41.7 mA
576 Ω
1000 mW
120% V of Rated coil voltage (at 85°C)
Single
Max. 50 mΩ (by voltage drop 6 V DC 1 A)
AgSnO2 type
20 A 277 V AC
8,310 VA
277 V AC
30 A (AC)
100 mA 5 V DC
Min. 100 MΩ (At 500 V DC, Measured portion is the same as the case of dielectric strength.)
1,200 Vrms for 1 min. (detection current: 10 mA)
3,500 Vrms for 1 min. (detection current: 10 mA)
6,000 V
Max. 15 ms (at rated coil voltage, without bounce)
Max. 10 ms (at rated coil voltage, without bounce, without diode)
98 m/s2 (half-sine shock pulse: 11 ms, detection time: 10 µs)
980 m/s2 (half-sine shock pulse: 6 ms)
10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 µs)
10 to 55 Hz (at double amplitude of 2.0 mm)
Min. 1x107 ope. (at 180 times/min.)
Ambient temperature: -55 to +85°C
Humidity: 5 to 85% R.H. (Avoid icing and condensation)
Approx. 30 g
Min. 100,000 ope. 20 A 277 V AC (at 20°C, at 20 times/min.)
JTV1G-TMP-12V
Dust Cover
Tab terminal (TMP type)
12 V DC
1 Form C
Single side stable
Class F insulation
50
300
Max. 75% V of Rated coil voltage (initial)
Min. 10% V of Rated coil voltage (initial)
83.3 mA
144 Ω
1000 mW
120% V of Rated coil voltage (at 85°C)
Single
Max. 50 mΩ (by voltage drop 6 V DC 1 A)
AgSnO2 type
N.C.: 10 A 277 V AC, N.O.: 20 A 277 V AC
N.C.: 2,770 VA, N.O.: 5,540 VA
277 V AC
N.C.: 10 A, N.O.: 20 A
100 mA 5 V DC
Min. 100 MΩ (At 500 V DC, Measured portion is the same as the case of dielectric strength.)
1,200 Vrms for 1 min. (detection current: 10 mA)
3,500 Vrms for 1 min. (detection current: 10 mA)
6,000 V
Max. 15 ms (at rated coil voltage, without bounce)
Max. 10 ms (at rated coil voltage, without bounce, without diode)
98 m/s2 (half-sine shock pulse: 11 ms, detection time: 10 µs)
980 m/s2 (half-sine shock pulse: 6 ms)
10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 µs)
10 to 55 Hz (at double amplitude of 2.0 mm)
Min. 1x107 ope. (at 180 times/min.)
Ambient temperature: -55 to +85°C
Humidity: 5 to 85% R.H. (Avoid icing and condensation)
Approx. 30 g
N.O.: Min. 100,000 ope. 20 A 277 V AC (at 20°C, at 20 times/min.)
N.C.: Min. 100,000 ope. 10 A 277 V AC (at 20°C, at 20 times/min.)
JTV1G-TMP-24V
Dust Cover
Tab terminal (TMP type)
24 V DC
1 Form C
Single side stable
Class F insulation
50
300
Max. 75% V of Rated coil voltage (initial)
Min. 10% V of Rated coil voltage (initial)
41.7 mA
576 Ω
1000 mW
120% V of Rated coil voltage (at 85°C)
Single
Max. 50 mΩ (by voltage drop 6 V DC 1 A)
AgSnO2 type
N.C.: 10 A 277 V AC, N.O.: 20 A 277 V AC
N.C.: 2,770 VA, N.O.: 5,540 VA
277 V AC
N.C.: 10 A, N.O.: 20 A
100 mA 5 V DC
Min. 100 MΩ (At 500 V DC, Measured portion is the same as the case of dielectric strength.)
1,200 Vrms for 1 min. (detection current: 10 mA)
3,500 Vrms for 1 min. (detection current: 10 mA)
6,000 V
Max. 15 ms (at rated coil voltage, without bounce)
Max. 10 ms (at rated coil voltage, without bounce, without diode)
98 m/s2 (half-sine shock pulse: 11 ms, detection time: 10 µs)
980 m/s2 (half-sine shock pulse: 6 ms)
10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 µs)
10 to 55 Hz (at double amplitude of 2.0 mm)
Min. 1x107 ope. (at 180 times/min.)
Ambient temperature: -55 to +85°C
Humidity: 5 to 85% R.H. (Avoid icing and condensation)
Approx. 30 g
N.O.: Min. 100,000 ope. 20 A 277 V AC (at 20°C, at 20 times/min.)
N.C.: Min. 100,000 ope. 10 A 277 V AC (at 20°C, at 20 times/min.)
JTV1G-TMP-18V
Dust Cover
Tab terminal (TMP type)
18 V DC
1 Form C
Single side stable
Class F insulation
50
300
Max. 75% V of Rated coil voltage (initial)
Min. 10% V of Rated coil voltage (initial)
55.6 mA
324 Ω
1000 mW
120% V of Rated coil voltage (at 85°C)
Single
Max. 50 mΩ (by voltage drop 6 V DC 1 A)
AgSnO2 type
N.C.: 10 A 277 V AC, N.O.: 20 A 277 V AC
N.C.: 2,770 VA, N.O.: 5,540 VA
277 V AC
N.C.: 10 A, N.O.: 20 A
100 mA 5 V DC
Min. 100 MΩ (At 500 V DC, Measured portion is the same as the case of dielectric strength.)
1,200 Vrms for 1 min. (detection current: 10 mA)
3,500 Vrms for 1 min. (detection current: 10 mA)
6,000 V
Max. 15 ms (at rated coil voltage, without bounce)
Max. 10 ms (at rated coil voltage, without bounce, without diode)
98 m/s2 (half-sine shock pulse: 11 ms, detection time: 10 µs)
980 m/s2 (half-sine shock pulse: 6 ms)
10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 µs)
10 to 55 Hz (at double amplitude of 2.0 mm)
Min. 1x107 ope. (at 180 times/min.)
Ambient temperature: -55 to +85°C
Humidity: 5 to 85% R.H. (Avoid icing and condensation)
Approx. 30 g
N.O.: Min. 100,000 ope. 20 A 277 V AC (at 20°C, at 20 times/min.)
N.C.: Min. 100,000 ope. 10 A 277 V AC (at 20°C, at 20 times/min.)
JTV1aS-TMP-48V
Sealed
Tab terminal (TMP type)
48 V DC
1 Form A
Single side stable
Class F insulation
50
300
Max. 75% V of Rated coil voltage (initial)
Min. 10% V of Rated coil voltage (initial)
20.8 mA
2,304 Ω
1000 mW
120% V of Rated coil voltage (at 85°C)
Single
Max. 50 mΩ (by voltage drop 6 V DC 1 A)
AgSnO2 type
20 A 277 V AC
8,310 VA
277 V AC
30 A (AC)
100 mA 5 V DC
Min. 100 MΩ (At 500 V DC, Measured portion is the same as the case of dielectric strength.)
1,200 Vrms for 1 min. (detection current: 10 mA)
3,500 Vrms for 1 min. (detection current: 10 mA)
6,000 V
Max. 15 ms (at rated coil voltage, without bounce)
Max. 10 ms (at rated coil voltage, without bounce, without diode)
98 m/s2 (half-sine shock pulse: 11 ms, detection time: 10 µs)
980 m/s2 (half-sine shock pulse: 6 ms)
10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 µs)
10 to 55 Hz (at double amplitude of 2.0 mm)
Min. 1x107 ope. (at 180 times/min.)
Ambient temperature: -55 to +85°C
Humidity: 5 to 85% R.H. (Avoid icing and condensation)
Approx. 30 g
Min. 100,000 ope. 20 A 277 V AC (at 20°C, at 20 times/min.)
JTV1S-TMP-24V
Sealed
Tab terminal (TMP type)
24 V DC
1 Form C
Single side stable
Class F insulation
50
300
Max. 75% V of Rated coil voltage (initial)
Min. 10% V of Rated coil voltage (initial)
41.7 mA
576 Ω
1000 mW
120% V of Rated coil voltage (at 85°C)
Single
Max. 50 mΩ (by voltage drop 6 V DC 1 A)
AgSnO2 type
N.C.: 10 A 277 V AC, N.O.: 20 A 277 V AC
N.C.: 2,770 VA, N.O.: 5,540 VA
277 V AC
N.C.: 10 A, N.O.: 20 A
100 mA 5 V DC
Min. 100 MΩ (At 500 V DC, Measured portion is the same as the case of dielectric strength.)
1,200 Vrms for 1 min. (detection current: 10 mA)
3,500 Vrms for 1 min. (detection current: 10 mA)
6,000 V
Max. 15 ms (at rated coil voltage, without bounce)
Max. 10 ms (at rated coil voltage, without bounce, without diode)
98 m/s2 (half-sine shock pulse: 11 ms, detection time: 10 µs)
980 m/s2 (half-sine shock pulse: 6 ms)
10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 µs)
10 to 55 Hz (at double amplitude of 2.0 mm)
Min. 1x107 ope. (at 180 times/min.)
Ambient temperature: -55 to +85°C
Humidity: 5 to 85% R.H. (Avoid icing and condensation)
Approx. 30 g
N.O.: Min. 100,000 ope. 20 A 277 V AC (at 20°C, at 20 times/min.)
N.C.: Min. 100,000 ope. 10 A 277 V AC (at 20°C, at 20 times/min.)
JTV1G-PA-12V
Dust Cover
PC board terminal
12 V DC
1 Form C
Single side stable
Class F insulation
50
500
Max. 75% V of Rated coil voltage (initial)
Min. 10% V of Rated coil voltage (initial)
83.3 mA
144 Ω
1000 mW
120% V of Rated coil voltage (at 85°C)
Single
Max. 50 mΩ (by voltage drop 6 V DC 1 A)
AgSnO2 type
N.C.: 10 A 277 V AC, N.O.: 20 A 277 V AC
N.C.: 2,770 VA, N.O.: 5,540 VA
277 V AC
N.C.: 10 A, N.O.: 20 A
100 mA 5 V DC
Min. 100 MΩ (At 500 V DC, Measured portion is the same as the case of dielectric strength.)
1,200 Vrms for 1 min. (detection current: 10 mA)
3,500 Vrms for 1 min. (detection current: 10 mA)
6,000 V
Max. 15 ms (at rated coil voltage, without bounce)
Max. 10 ms (at rated coil voltage, without bounce, without diode)
98 m/s2 (half-sine shock pulse: 11 ms, detection time: 10 µs)
980 m/s2 (half-sine shock pulse: 6 ms)
10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 µs)
10 to 55 Hz (at double amplitude of 2.0 mm)
Min. 1x107 ope. (at 180 times/min.)
Ambient temperature: -55 to +85°C
Humidity: 5 to 85% R.H. (Avoid icing and condensation)
Approx. 25 g
N.O.: Min. 100,000 ope. 20 A 277 V AC (at 20°C, at 20 times/min.)
N.C.: Min. 100,000 ope. 10 A 277 V AC (at 20°C, at 20 times/min.)
JTV1G-PA-18V
Dust Cover
PC board terminal
18 V DC
1 Form C
Single side stable
Class F insulation
50
500
Max. 75% V of Rated coil voltage (initial)
Min. 10% V of Rated coil voltage (initial)
55.6 mA
324 Ω
1000 mW
120% V of Rated coil voltage (at 85°C)
Single
Max. 50 mΩ (by voltage drop 6 V DC 1 A)
AgSnO2 type
N.C.: 10 A 277 V AC, N.O.: 20 A 277 V AC
N.C.: 2,770 VA, N.O.: 5,540 VA
277 V AC
N.C.: 10 A, N.O.: 20 A
100 mA 5 V DC
Min. 100 MΩ (At 500 V DC, Measured portion is the same as the case of dielectric strength.)
1,200 Vrms for 1 min. (detection current: 10 mA)
3,500 Vrms for 1 min. (detection current: 10 mA)
6,000 V
Max. 15 ms (at rated coil voltage, without bounce)
Max. 10 ms (at rated coil voltage, without bounce, without diode)
98 m/s2 (half-sine shock pulse: 11 ms, detection time: 10 µs)
980 m/s2 (half-sine shock pulse: 6 ms)
10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 µs)
10 to 55 Hz (at double amplitude of 2.0 mm)
Min. 1x107 ope. (at 180 times/min.)
Ambient temperature: -55 to +85°C
Humidity: 5 to 85% R.H. (Avoid icing and condensation)
Approx. 25 g
N.O.: Min. 100,000 ope. 20 A 277 V AC (at 20°C, at 20 times/min.)
N.C.: Min. 100,000 ope. 10 A 277 V AC (at 20°C, at 20 times/min.)
JTV1aS-PA-24V
Sealed
PC board terminal
24 V DC
1 Form A
Single side stable
Class F insulation
50
500
Max. 75% V of Rated coil voltage (initial)
Min. 10% V of Rated coil voltage (initial)
41.7 mA
576 Ω
1000 mW
120% V of Rated coil voltage (at 85°C)
Single
Max. 50 mΩ (by voltage drop 6 V DC 1 A)
AgSnO2 type
20 A 277 V AC
8,310 VA
277 V AC
30 A (AC)
100 mA 5 V DC
Min. 100 MΩ (At 500 V DC, Measured portion is the same as the case of dielectric strength.)
1,200 Vrms for 1 min. (detection current: 10 mA)
3,500 Vrms for 1 min. (detection current: 10 mA)
6,000 V
Max. 15 ms (at rated coil voltage, without bounce)
Max. 10 ms (at rated coil voltage, without bounce, without diode)
98 m/s2 (half-sine shock pulse: 11 ms, detection time: 10 µs)
980 m/s2 (half-sine shock pulse: 6 ms)
10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 µs)
10 to 55 Hz (at double amplitude of 2.0 mm)
Min. 1x107 ope. (at 180 times/min.)
Ambient temperature: -55 to +85°C
Humidity: 5 to 85% R.H. (Avoid icing and condensation)
Approx. 25 g
Min. 100,000 ope. 20 A 277 V AC (at 20°C, at 20 times/min.)
What's New

Stay up to date

View All
HE-A Series General Power Relays
Jun 18, 2024

HE-A Series General Power Relays

Relays & Contactors
LQ Series General Power Relay - High Inrush Type
Jun 18, 2024

LQ Series General Power Relay - High Inrush Type

Relays & Contactors
DS-P Series General Power Relays
Oct 19, 2023

DS-P Series General Power Relays

Relays & Contactors
HE Series Power Relay PV Type 90A Wide Gap
May 31, 2023

HE Series Power Relay PV Type 90A Wide Gap

Relays & Contactors
HE-R Series General Power Relays
Apr 13, 2023

HE-R Series General Power Relays

Relays & Contactors
LD-P Series General Power Relays
Jan 12, 2021

LD-P Series General Power Relays

Relays & Contactors
LQ Series Non-Polarized General Power Relays
Oct 3, 2019

LQ Series Non-Polarized General Power Relays

Relays & Contactors
HE-N Series General Power Relays
Aug 31, 2018

HE-N Series General Power Relays

Relays & Contactors
LZ-N Series General Power Relays
Jun 22, 2018

LZ-N Series General Power Relays

Relays & Contactors
DJ-H Series Power Latching Relays
Oct 31, 2017

DJ-H Series Power Latching Relays

Relays & Contactors
Latest Videos

Playlist

Thumbnail for Panasonic Industrial Solutions for 5G Networking Applications

Panasonic Industrial Solutions for 5G Networking Applications

Thumbnail for New Product Spotlight: DW Series Relays

New Product Spotlight: DW Series Relays

Thumbnail for New Product Spotlight: PA-N Series General Power Relays

New Product Spotlight: PA-N Series General Power Relays

Thumbnail for New Product Introduction: HE-R Series General Power Relays

New Product Introduction: HE-R Series General Power Relays

Thumbnail for New Product Introduction: HE Series Power Relay PV Type 90A Wide Gap

New Product Introduction: HE Series Power Relay PV Type 90A Wide Gap

Thumbnail for New Product Introduction: DS-P Series

New Product Introduction: DS-P Series

Thumbnail for New Product Information: LQ Series Relays

New Product Information: LQ Series Relays

Thumbnail for New Product Introduction: HE-A Series Relays

New Product Introduction: HE-A Series Relays
