RT-3 Unit Relay 4-Point Terminal (PhotoMOS Power Type)

Panasonic’s RT-3 Unit Relay 4-Point Terminal (PhotoMOS® Power Type) is a slim, space-saving 4-point Unit Relay. This space-saving Relay has four independent points on a base measuring 33 x 67mm and contributes to a more compact control panel. The RT-3 Unit Relay has a reputation for high reliability and long life. These Relays can be mounted on a DIN rail or mounted directly with screws.  Each RT-3 Unit Relay is equipped with an LED display to allow easy confirmation of operation.



Features and Benefits

  • Breakdown Voltage
    • Between Input And Output: 2,000 Vrms
    • Between Different Terminals: 1,500 Vrms
  • Insulation Resistance: Min. 100 MΩ
  • Shock Resistance: Min. 196 m/s2
  • Vibration Resistance: 10 to 55 Hz At Double Amplitude 1 mm
  • Ambient Temperature: –20°C to +55°C

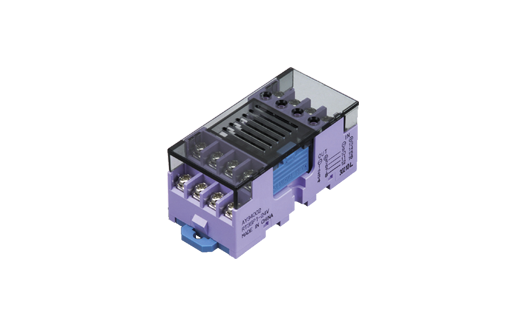

Series image for RT-3 Unit Relay 4-Point Terminal (PhotoMOS Power Type)

RT-3 Unit Relay 4-Point Terminal (PhotoMOS Power Type)

Part number list

Results 6
Models table for series RT-3 Unit Relay 4-Point Terminal (PhotoMOS Power Type)
Part No.DatasheetRated Input VoltageNoticeContact ArrangementVoltage type
RT3SP1-12V
12V DC
4 pieces PhotoMOS Power types are installed (Equipped with AQZ102). Cannot be equipped with PA-N relays.
1 Form A x 4
DC only
RT3SP1-24V
24V DC
4 pieces PhotoMOS Power types are installed (Equipped with AQZ102). Cannot be equipped with PA-N relays.
1 Form A x 4
DC only
AY30002
AY30001
RT3SP2-12V
12V DC
4 pieces PhotoMOS Power types are installed (Equipped with AQZ204). Cannot be equipped with PA-N relays.
1 Form A x 4
AC/DC dual use
RT3SP2-24V
24V DC
4 pieces PhotoMOS Power types are installed (Equipped with AQZ204). Cannot be equipped with PA-N relays.
1 Form A x 4
AC/DC dual use
