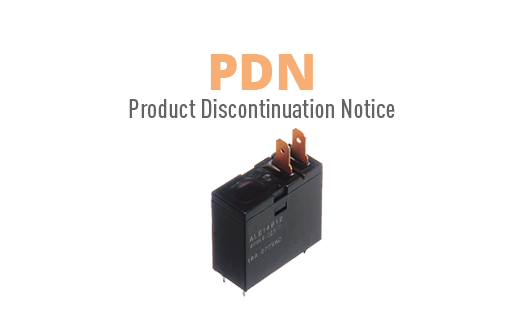

LE Series Relays

The LE Series Relays are being discontinued. Please consult Panasonic Product Discontinuation Notice For JT-N, JT-V, LK-P, LK-T, JS, JS-M, JQ, PQ, LE, RE Series Relays PDN.PG0006-PG0002.3.15.2021 for Affected Part Numbers.

LE Series Relays

Part number list

Results 112

Models table for series LE Series Relays
Part No.	Datasheet	Terminal Type	Rated Operating Power Type	Coil Insulation Class	Rated Coil Voltage	Protective Construction	Operating Function	Insulation Distance	Packing Quantity; Inner Carton (Pcs.)	Packing Quantity; Outer Carton (Pcs.)	Operate Voltage (@20oC)	Release Voltage (at20°C)	Rated Operating Current [±10%] (at 20°C)	Resistance [±10%] (at 20°C)	Rated Operating Power	Max. Allowable Voltage (at 20°C 68°F)	Contact Arrangement	Contact Shape	Contact Resistance (Initial)	Contact Material	Contact Rating (Resistive Load)	Max. Switching Power (Resistive Load)	Max. Switching Voltage	Max. Switching Current	Min. Switching Load (Reference Value)	Insulation Resistance (Initial)	Dielectric Strength (Initial): Between Open Contacts	Dielectric Strength (Initial): Between Contact and Coil	Surge Withstand Voltage (Initial): Between Contact and Coil	Operate Time (Initial) (At 20oC)	Release Time (Initial) (at 20°C)	Hock Resistance (Functional)	Hock Resistance (Destructive)	Vibration Resistance (Functional)	Vibration Resistance (Destructive)	Mechanical Life	Conditions	Weight (Typ.)
ALE72F48		Tab terminal (TMP type) PCB side three terminals (includes one dummy terminal)	High sensitive type	Class F insulation	48 V DC	Flux-resistant	Single side stable	[Between contact and coil] Clearance: Min. 8 mm, Creepage: Min. 9.5 mm	100	500	Max. 75% V of Rated coil voltage (initial)	Min. 5% V of Rated coil voltage (initial)	4.2 mA	11,520 Ω	200 mW	145% V of Rated coil voltage	1 Form A	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgSnO₂ type	16 A 277 V AC	4,432 VA	277 V AC	16 A	100 mA 5 V DC	Min. 1,000 MΩ (At 500 V DC, Measured portion is the same as the case of dielectric strength.)	1,000 Vrms for 1 min. (detection current: 10 mA)	4,000 Vrms for 1 min. (detection current: 10 mA)	10,000 V	Max. 20 ms (at rated coil voltage, without bounce)	Max. 25 ms (at rated coil voltage, without bounce, with diode)	Min. 200 m/s² (half-sine shock pulse: 11 ms;, detection time: 10 µs)	Min. 1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 µs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 2x10⁶ ope. (at 180 times/min.)	Ambient temperature: -40 to +85°C Humidity: 5 to 85% R.H. (Avoid icing and condensation)	Approx. 17 g
ALE72F24		Tab terminal (TMP type) PCB side three terminals (includes one dummy terminal)	High sensitive type	Class F insulation	24 V DC	Flux-resistant	Single side stable	[Between contact and coil] Clearance: Min. 8 mm, Creepage: Min. 9.5 mm	100	500	Max. 75% V of Rated coil voltage (initial)	Min. 5% V of Rated coil voltage (initial)	8.3 mA	2,880 Ω	200 mW	145% V of Rated coil voltage	1 Form A	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgSnO₂ type	16 A 277 V AC	4,432 VA	277 V AC	16 A	100 mA 5 V DC	Min. 1,000 MΩ (At 500 V DC, Measured portion is the same as the case of dielectric strength.)	1,000 Vrms for 1 min. (detection current: 10 mA)	4,000 Vrms for 1 min. (detection current: 10 mA)	10,000 V	Max. 20 ms (at rated coil voltage, without bounce)	Max. 25 ms (at rated coil voltage, without bounce, with diode)	Min. 200 m/s² (half-sine shock pulse: 11 ms;, detection time: 10 µs)	Min. 1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 µs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 2x10⁶ ope. (at 180 times/min.)	Ambient temperature: -40 to +85°C Humidity: 5 to 85% R.H. (Avoid icing and condensation)	Approx. 17 g
ALE73B06		Tab terminal (TMP type) PCB side three terminals	High sensitive type	Class B insulation	6 V DC	Flux-resistant	Single side stable	[Between contact and coil] Clearance: Min. 8 mm, Creepage: Min. 9.5 mm	100	500	Max. 75% V of Rated coil voltage (initial)	Min. 5% V of Rated coil voltage (initial)	33.3 mA	180 Ω	200 mW	145% V of Rated coil voltage	1 Form A	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgSnO₂ type	16 A 277 V AC	4,432 VA	277 V AC	16 A	100 mA 5 V DC	Min. 1,000 MΩ (At 500 V DC, Measured portion is the same as the case of dielectric strength.)	1,000 Vrms for 1 min. (detection current: 10 mA)	4,000 Vrms for 1 min. (detection current: 10 mA)	10,000 V	Max. 20 ms (at rated coil voltage, without bounce)	Max. 25 ms (at rated coil voltage, without bounce, with diode)	Min. 200 m/s² (half-sine shock pulse: 11 ms;, detection time: 10 µs)	Min. 1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 µs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 2x10⁶ ope. (at 180 times/min.)	Ambient temperature: -40 to +85°C Humidity: 5 to 85% R.H. (Avoid icing and condensation)	Approx. 17 g
ALE73B12		Tab terminal (TMP type) PCB side three terminals	High sensitive type	Class B insulation	12 V DC	Flux-resistant	Single side stable	[Between contact and coil] Clearance: Min. 8 mm, Creepage: Min. 9.5 mm	100	500	Max. 75% V of Rated coil voltage (initial)	Min. 5% V of Rated coil voltage (initial)	16.7 mA	720 Ω	200 mW	145% V of Rated coil voltage	1 Form A	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgSnO₂ type	16 A 277 V AC	4,432 VA	277 V AC	16 A	100 mA 5 V DC	Min. 1,000 MΩ (At 500 V DC, Measured portion is the same as the case of dielectric strength.)	1,000 Vrms for 1 min. (detection current: 10 mA)	4,000 Vrms for 1 min. (detection current: 10 mA)	10,000 V	Max. 20 ms (at rated coil voltage, without bounce)	Max. 25 ms (at rated coil voltage, without bounce, with diode)	Min. 200 m/s² (half-sine shock pulse: 11 ms;, detection time: 10 µs)	Min. 1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 µs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 2x10⁶ ope. (at 180 times/min.)	Ambient temperature: -40 to +85°C Humidity: 5 to 85% R.H. (Avoid icing and condensation)	Approx. 17 g
ALE73B48		Tab terminal (TMP type) PCB side three terminals	High sensitive type	Class B insulation	48 V DC	Flux-resistant	Single side stable	[Between contact and coil] Clearance: Min. 8 mm, Creepage: Min. 9.5 mm	100	500	Max. 75% V of Rated coil voltage (initial)	Min. 5% V of Rated coil voltage (initial)	4.2 mA	11,520 Ω	200 mW	145% V of Rated coil voltage	1 Form A	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgSnO₂ type	16 A 277 V AC	4,432 VA	277 V AC	16 A	100 mA 5 V DC	Min. 1,000 MΩ (At 500 V DC, Measured portion is the same as the case of dielectric strength.)	1,000 Vrms for 1 min. (detection current: 10 mA)	4,000 Vrms for 1 min. (detection current: 10 mA)	10,000 V	Max. 20 ms (at rated coil voltage, without bounce)	Max. 25 ms (at rated coil voltage, without bounce, with diode)	Min. 200 m/s² (half-sine shock pulse: 11 ms;, detection time: 10 µs)	Min. 1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 µs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 2x10⁶ ope. (at 180 times/min.)	Ambient temperature: -40 to +85°C Humidity: 5 to 85% R.H. (Avoid icing and condensation)	Approx. 17 g
ALE73F05		Tab terminal (TMP type) PCB side three terminals	High sensitive type	Class F insulation	5 V DC	Flux-resistant	Single side stable	[Between contact and coil] Clearance: Min. 8 mm, Creepage: Min. 9.5 mm	100	500	Max. 75% V of Rated coil voltage (initial)	Min. 5% V of Rated coil voltage (initial)	40 mA	125 Ω	200 mW	145% V of Rated coil voltage	1 Form A	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgSnO₂ type	16 A 277 V AC	4,432 VA	277 V AC	16 A	100 mA 5 V DC	Min. 1,000 MΩ (At 500 V DC, Measured portion is the same as the case of dielectric strength.)	1,000 Vrms for 1 min. (detection current: 10 mA)	4,000 Vrms for 1 min. (detection current: 10 mA)	10,000 V	Max. 20 ms (at rated coil voltage, without bounce)	Max. 25 ms (at rated coil voltage, without bounce, with diode)	Min. 200 m/s² (half-sine shock pulse: 11 ms;, detection time: 10 µs)	Min. 1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 µs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 2x10⁶ ope. (at 180 times/min.)	Ambient temperature: -40 to +85°C Humidity: 5 to 85% R.H. (Avoid icing and condensation)	Approx. 17 g
ALE73F06		Tab terminal (TMP type) PCB side three terminals	High sensitive type	Class F insulation	6 V DC	Flux-resistant	Single side stable	[Between contact and coil] Clearance: Min. 8 mm, Creepage: Min. 9.5 mm	100	500	Max. 75% V of Rated coil voltage (initial)	Min. 5% V of Rated coil voltage (initial)	33.3 mA	180 Ω	200 mW	145% V of Rated coil voltage	1 Form A	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgSnO₂ type	16 A 277 V AC	4,432 VA	277 V AC	16 A	100 mA 5 V DC	Min. 1,000 MΩ (At 500 V DC, Measured portion is the same as the case of dielectric strength.)	1,000 Vrms for 1 min. (detection current: 10 mA)	4,000 Vrms for 1 min. (detection current: 10 mA)	10,000 V	Max. 20 ms (at rated coil voltage, without bounce)	Max. 25 ms (at rated coil voltage, without bounce, with diode)	Min. 200 m/s² (half-sine shock pulse: 11 ms;, detection time: 10 µs)	Min. 1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 µs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 2x10⁶ ope. (at 180 times/min.)	Ambient temperature: -40 to +85°C Humidity: 5 to 85% R.H. (Avoid icing and condensation)	Approx. 17 g
ALE73F12		Tab terminal (TMP type) PCB side three terminals	High sensitive type	Class F insulation	12 V DC	Flux-resistant	Single side stable	[Between contact and coil] Clearance: Min. 8 mm, Creepage: Min. 9.5 mm	100	500	Max. 75% V of Rated coil voltage (initial)	Min. 5% V of Rated coil voltage (initial)	16.7 mA	720 Ω	200 mW	145% V of Rated coil voltage	1 Form A	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgSnO₂ type	16 A 277 V AC	4,432 VA	277 V AC	16 A	100 mA 5 V DC	Min. 1,000 MΩ (At 500 V DC, Measured portion is the same as the case of dielectric strength.)	1,000 Vrms for 1 min. (detection current: 10 mA)	4,000 Vrms for 1 min. (detection current: 10 mA)	10,000 V	Max. 20 ms (at rated coil voltage, without bounce)	Max. 25 ms (at rated coil voltage, without bounce, with diode)	Min. 200 m/s² (half-sine shock pulse: 11 ms;, detection time: 10 µs)	Min. 1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 µs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 2x10⁶ ope. (at 180 times/min.)	Ambient temperature: -40 to +85°C Humidity: 5 to 85% R.H. (Avoid icing and condensation)	Approx. 17 g
ALE73F48		Tab terminal (TMP type) PCB side three terminals	High sensitive type	Class F insulation	48 V DC	Flux-resistant	Single side stable	[Between contact and coil] Clearance: Min. 8 mm, Creepage: Min. 9.5 mm	100	500	Max. 75% V of Rated coil voltage (initial)	Min. 5% V of Rated coil voltage (initial)	4.2 mA	11,520 Ω	200 mW	145% V of Rated coil voltage	1 Form A	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgSnO₂ type	16 A 277 V AC	4,432 VA	277 V AC	16 A	100 mA 5 V DC	Min. 1,000 MΩ (At 500 V DC, Measured portion is the same as the case of dielectric strength.)	1,000 Vrms for 1 min. (detection current: 10 mA)	4,000 Vrms for 1 min. (detection current: 10 mA)	10,000 V	Max. 20 ms (at rated coil voltage, without bounce)	Max. 25 ms (at rated coil voltage, without bounce, with diode)	Min. 200 m/s² (half-sine shock pulse: 11 ms;, detection time: 10 µs)	Min. 1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 µs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 2x10⁶ ope. (at 180 times/min.)	Ambient temperature: -40 to +85°C Humidity: 5 to 85% R.H. (Avoid icing and condensation)	Approx. 17 g
ALE74B09		Tab terminal (TMP type) PCB side four terminals	High sensitive type	Class B insulation	9 V DC	Flux-resistant	Single side stable	[Between contact and coil] Clearance: Min. 8 mm, Creepage: Min. 9.5 mm	100	500	Max. 75% V of Rated coil voltage (initial)	Min. 5% V of Rated coil voltage (initial)	22.2 mA	405 Ω	200 mW	145% V of Rated coil voltage	1 Form A	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgSnO₂ type	16 A 277 V AC	4,432 VA	277 V AC	16 A	100 mA 5 V DC	Min. 1,000 MΩ (At 500 V DC, Measured portion is the same as the case of dielectric strength.)	1,000 Vrms for 1 min. (detection current: 10 mA)	4,000 Vrms for 1 min. (detection current: 10 mA)	10,000 V	Max. 20 ms (at rated coil voltage, without bounce)	Max. 25 ms (at rated coil voltage, without bounce, with diode)	Min. 200 m/s² (half-sine shock pulse: 11 ms;, detection time: 10 µs)	Min. 1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 µs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 2x10⁶ ope. (at 180 times/min.)	Ambient temperature: -40 to +85°C Humidity: 5 to 85% R.H. (Avoid icing and condensation)	Approx. 17 g

Models table for series LE Series Relays
Part No.	Datasheet	Terminal Type	Rated Operating Power Type	Coil Insulation Class	Rated Coil Voltage	Protective Construction	Operating Function	Insulation Distance	Packing Quantity; Inner Carton (Pcs.)	Packing Quantity; Outer Carton (Pcs.)	Operate Voltage (@20oC)	Release Voltage (at20°C)	Rated Operating Current [±10%] (at 20°C)	Resistance [±10%] (at 20°C)	Rated Operating Power	Max. Allowable Voltage (at 20°C 68°F)	Contact Arrangement	Contact Shape	Contact Resistance (Initial)	Contact Material	Contact Rating (Resistive Load)	Max. Switching Power (Resistive Load)	Max. Switching Voltage	Max. Switching Current	Min. Switching Load (Reference Value)	Insulation Resistance (Initial)	Dielectric Strength (Initial): Between Open Contacts	Dielectric Strength (Initial): Between Contact and Coil	Surge Withstand Voltage (Initial): Between Contact and Coil	Operate Time (Initial) (At 20oC)	Release Time (Initial) (at 20°C)	Hock Resistance (Functional)	Hock Resistance (Destructive)	Vibration Resistance (Functional)	Vibration Resistance (Destructive)	Mechanical Life	Conditions	Weight (Typ.)
ALE72F48		Tab terminal (TMP type) PCB side three terminals (includes one dummy terminal)	High sensitive type	Class F insulation	48 V DC	Flux-resistant	Single side stable	[Between contact and coil] Clearance: Min. 8 mm, Creepage: Min. 9.5 mm	100	500	Max. 75% V of Rated coil voltage (initial)	Min. 5% V of Rated coil voltage (initial)	4.2 mA	11,520 Ω	200 mW	145% V of Rated coil voltage	1 Form A	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgSnO₂ type	16 A 277 V AC	4,432 VA	277 V AC	16 A	100 mA 5 V DC	Min. 1,000 MΩ (At 500 V DC, Measured portion is the same as the case of dielectric strength.)	1,000 Vrms for 1 min. (detection current: 10 mA)	4,000 Vrms for 1 min. (detection current: 10 mA)	10,000 V	Max. 20 ms (at rated coil voltage, without bounce)	Max. 25 ms (at rated coil voltage, without bounce, with diode)	Min. 200 m/s² (half-sine shock pulse: 11 ms;, detection time: 10 µs)	Min. 1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 µs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 2x10⁶ ope. (at 180 times/min.)	Ambient temperature: -40 to +85°C Humidity: 5 to 85% R.H. (Avoid icing and condensation)	Approx. 17 g
ALE72F24		Tab terminal (TMP type) PCB side three terminals (includes one dummy terminal)	High sensitive type	Class F insulation	24 V DC	Flux-resistant	Single side stable	[Between contact and coil] Clearance: Min. 8 mm, Creepage: Min. 9.5 mm	100	500	Max. 75% V of Rated coil voltage (initial)	Min. 5% V of Rated coil voltage (initial)	8.3 mA	2,880 Ω	200 mW	145% V of Rated coil voltage	1 Form A	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgSnO₂ type	16 A 277 V AC	4,432 VA	277 V AC	16 A	100 mA 5 V DC	Min. 1,000 MΩ (At 500 V DC, Measured portion is the same as the case of dielectric strength.)	1,000 Vrms for 1 min. (detection current: 10 mA)	4,000 Vrms for 1 min. (detection current: 10 mA)	10,000 V	Max. 20 ms (at rated coil voltage, without bounce)	Max. 25 ms (at rated coil voltage, without bounce, with diode)	Min. 200 m/s² (half-sine shock pulse: 11 ms;, detection time: 10 µs)	Min. 1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 µs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 2x10⁶ ope. (at 180 times/min.)	Ambient temperature: -40 to +85°C Humidity: 5 to 85% R.H. (Avoid icing and condensation)	Approx. 17 g
ALE73B06		Tab terminal (TMP type) PCB side three terminals	High sensitive type	Class B insulation	6 V DC	Flux-resistant	Single side stable	[Between contact and coil] Clearance: Min. 8 mm, Creepage: Min. 9.5 mm	100	500	Max. 75% V of Rated coil voltage (initial)	Min. 5% V of Rated coil voltage (initial)	33.3 mA	180 Ω	200 mW	145% V of Rated coil voltage	1 Form A	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgSnO₂ type	16 A 277 V AC	4,432 VA	277 V AC	16 A	100 mA 5 V DC	Min. 1,000 MΩ (At 500 V DC, Measured portion is the same as the case of dielectric strength.)	1,000 Vrms for 1 min. (detection current: 10 mA)	4,000 Vrms for 1 min. (detection current: 10 mA)	10,000 V	Max. 20 ms (at rated coil voltage, without bounce)	Max. 25 ms (at rated coil voltage, without bounce, with diode)	Min. 200 m/s² (half-sine shock pulse: 11 ms;, detection time: 10 µs)	Min. 1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 µs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 2x10⁶ ope. (at 180 times/min.)	Ambient temperature: -40 to +85°C Humidity: 5 to 85% R.H. (Avoid icing and condensation)	Approx. 17 g
ALE73B12		Tab terminal (TMP type) PCB side three terminals	High sensitive type	Class B insulation	12 V DC	Flux-resistant	Single side stable	[Between contact and coil] Clearance: Min. 8 mm, Creepage: Min. 9.5 mm	100	500	Max. 75% V of Rated coil voltage (initial)	Min. 5% V of Rated coil voltage (initial)	16.7 mA	720 Ω	200 mW	145% V of Rated coil voltage	1 Form A	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgSnO₂ type	16 A 277 V AC	4,432 VA	277 V AC	16 A	100 mA 5 V DC	Min. 1,000 MΩ (At 500 V DC, Measured portion is the same as the case of dielectric strength.)	1,000 Vrms for 1 min. (detection current: 10 mA)	4,000 Vrms for 1 min. (detection current: 10 mA)	10,000 V	Max. 20 ms (at rated coil voltage, without bounce)	Max. 25 ms (at rated coil voltage, without bounce, with diode)	Min. 200 m/s² (half-sine shock pulse: 11 ms;, detection time: 10 µs)	Min. 1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 µs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 2x10⁶ ope. (at 180 times/min.)	Ambient temperature: -40 to +85°C Humidity: 5 to 85% R.H. (Avoid icing and condensation)	Approx. 17 g
ALE73B48		Tab terminal (TMP type) PCB side three terminals	High sensitive type	Class B insulation	48 V DC	Flux-resistant	Single side stable	[Between contact and coil] Clearance: Min. 8 mm, Creepage: Min. 9.5 mm	100	500	Max. 75% V of Rated coil voltage (initial)	Min. 5% V of Rated coil voltage (initial)	4.2 mA	11,520 Ω	200 mW	145% V of Rated coil voltage	1 Form A	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgSnO₂ type	16 A 277 V AC	4,432 VA	277 V AC	16 A	100 mA 5 V DC	Min. 1,000 MΩ (At 500 V DC, Measured portion is the same as the case of dielectric strength.)	1,000 Vrms for 1 min. (detection current: 10 mA)	4,000 Vrms for 1 min. (detection current: 10 mA)	10,000 V	Max. 20 ms (at rated coil voltage, without bounce)	Max. 25 ms (at rated coil voltage, without bounce, with diode)	Min. 200 m/s² (half-sine shock pulse: 11 ms;, detection time: 10 µs)	Min. 1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 µs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 2x10⁶ ope. (at 180 times/min.)	Ambient temperature: -40 to +85°C Humidity: 5 to 85% R.H. (Avoid icing and condensation)	Approx. 17 g
ALE73F05		Tab terminal (TMP type) PCB side three terminals	High sensitive type	Class F insulation	5 V DC	Flux-resistant	Single side stable	[Between contact and coil] Clearance: Min. 8 mm, Creepage: Min. 9.5 mm	100	500	Max. 75% V of Rated coil voltage (initial)	Min. 5% V of Rated coil voltage (initial)	40 mA	125 Ω	200 mW	145% V of Rated coil voltage	1 Form A	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgSnO₂ type	16 A 277 V AC	4,432 VA	277 V AC	16 A	100 mA 5 V DC	Min. 1,000 MΩ (At 500 V DC, Measured portion is the same as the case of dielectric strength.)	1,000 Vrms for 1 min. (detection current: 10 mA)	4,000 Vrms for 1 min. (detection current: 10 mA)	10,000 V	Max. 20 ms (at rated coil voltage, without bounce)	Max. 25 ms (at rated coil voltage, without bounce, with diode)	Min. 200 m/s² (half-sine shock pulse: 11 ms;, detection time: 10 µs)	Min. 1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 µs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 2x10⁶ ope. (at 180 times/min.)	Ambient temperature: -40 to +85°C Humidity: 5 to 85% R.H. (Avoid icing and condensation)	Approx. 17 g
ALE73F06		Tab terminal (TMP type) PCB side three terminals	High sensitive type	Class F insulation	6 V DC	Flux-resistant	Single side stable	[Between contact and coil] Clearance: Min. 8 mm, Creepage: Min. 9.5 mm	100	500	Max. 75% V of Rated coil voltage (initial)	Min. 5% V of Rated coil voltage (initial)	33.3 mA	180 Ω	200 mW	145% V of Rated coil voltage	1 Form A	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgSnO₂ type	16 A 277 V AC	4,432 VA	277 V AC	16 A	100 mA 5 V DC	Min. 1,000 MΩ (At 500 V DC, Measured portion is the same as the case of dielectric strength.)	1,000 Vrms for 1 min. (detection current: 10 mA)	4,000 Vrms for 1 min. (detection current: 10 mA)	10,000 V	Max. 20 ms (at rated coil voltage, without bounce)	Max. 25 ms (at rated coil voltage, without bounce, with diode)	Min. 200 m/s² (half-sine shock pulse: 11 ms;, detection time: 10 µs)	Min. 1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 µs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 2x10⁶ ope. (at 180 times/min.)	Ambient temperature: -40 to +85°C Humidity: 5 to 85% R.H. (Avoid icing and condensation)	Approx. 17 g
ALE73F12		Tab terminal (TMP type) PCB side three terminals	High sensitive type	Class F insulation	12 V DC	Flux-resistant	Single side stable	[Between contact and coil] Clearance: Min. 8 mm, Creepage: Min. 9.5 mm	100	500	Max. 75% V of Rated coil voltage (initial)	Min. 5% V of Rated coil voltage (initial)	16.7 mA	720 Ω	200 mW	145% V of Rated coil voltage	1 Form A	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgSnO₂ type	16 A 277 V AC	4,432 VA	277 V AC	16 A	100 mA 5 V DC	Min. 1,000 MΩ (At 500 V DC, Measured portion is the same as the case of dielectric strength.)	1,000 Vrms for 1 min. (detection current: 10 mA)	4,000 Vrms for 1 min. (detection current: 10 mA)	10,000 V	Max. 20 ms (at rated coil voltage, without bounce)	Max. 25 ms (at rated coil voltage, without bounce, with diode)	Min. 200 m/s² (half-sine shock pulse: 11 ms;, detection time: 10 µs)	Min. 1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 µs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 2x10⁶ ope. (at 180 times/min.)	Ambient temperature: -40 to +85°C Humidity: 5 to 85% R.H. (Avoid icing and condensation)	Approx. 17 g
ALE73F48		Tab terminal (TMP type) PCB side three terminals	High sensitive type	Class F insulation	48 V DC	Flux-resistant	Single side stable	[Between contact and coil] Clearance: Min. 8 mm, Creepage: Min. 9.5 mm	100	500	Max. 75% V of Rated coil voltage (initial)	Min. 5% V of Rated coil voltage (initial)	4.2 mA	11,520 Ω	200 mW	145% V of Rated coil voltage	1 Form A	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgSnO₂ type	16 A 277 V AC	4,432 VA	277 V AC	16 A	100 mA 5 V DC	Min. 1,000 MΩ (At 500 V DC, Measured portion is the same as the case of dielectric strength.)	1,000 Vrms for 1 min. (detection current: 10 mA)	4,000 Vrms for 1 min. (detection current: 10 mA)	10,000 V	Max. 20 ms (at rated coil voltage, without bounce)	Max. 25 ms (at rated coil voltage, without bounce, with diode)	Min. 200 m/s² (half-sine shock pulse: 11 ms;, detection time: 10 µs)	Min. 1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 µs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 2x10⁶ ope. (at 180 times/min.)	Ambient temperature: -40 to +85°C Humidity: 5 to 85% R.H. (Avoid icing and condensation)	Approx. 17 g
ALE74B09		Tab terminal (TMP type) PCB side four terminals	High sensitive type	Class B insulation	9 V DC	Flux-resistant	Single side stable	[Between contact and coil] Clearance: Min. 8 mm, Creepage: Min. 9.5 mm	100	500	Max. 75% V of Rated coil voltage (initial)	Min. 5% V of Rated coil voltage (initial)	22.2 mA	405 Ω	200 mW	145% V of Rated coil voltage	1 Form A	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgSnO₂ type	16 A 277 V AC	4,432 VA	277 V AC	16 A	100 mA 5 V DC	Min. 1,000 MΩ (At 500 V DC, Measured portion is the same as the case of dielectric strength.)	1,000 Vrms for 1 min. (detection current: 10 mA)	4,000 Vrms for 1 min. (detection current: 10 mA)	10,000 V	Max. 20 ms (at rated coil voltage, without bounce)	Max. 25 ms (at rated coil voltage, without bounce, with diode)	Min. 200 m/s² (half-sine shock pulse: 11 ms;, detection time: 10 µs)	Min. 1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 µs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 2x10⁶ ope. (at 180 times/min.)	Ambient temperature: -40 to +85°C Humidity: 5 to 85% R.H. (Avoid icing and condensation)	Approx. 17 g
