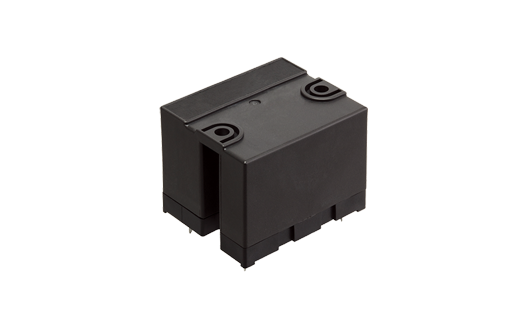

HE-V Series Relays

Part number list

Results 5

Models table for series HE-V Series Relays
Part No.	Coil Voltage	Contact Arrangement	Contact Material	Nominal Switching Capacity (Resistive Load)	Max. Switching Voltage	Max. Switching Current	Minimum (For Reference)	Rated operating power	Pick-Up Voltage	Drop-Out Voltage	Expected Life: Mechanical	Expected Life: Electrical	Breakdown Voltage (Contact-Contact) (Initial)	Breakdown Voltage (Initial) : Between Contact And Coil	Conditions	Protective Construction	Operating Function	Terminal Type
HEV2aN-P-DC6V	6V DC	2 Form A	AgNi type	20 A 800 V DC, 25A 600V DC (at each 1 Form A contact connected in series), 20 A 400 VDC (at 1 Form A contact only)	1,000V DC	25A	100mA 5V DC	1,920mW	Max. 70% V of rated coil voltage (initial) (at 20°C)	Min. 5% V of rated coil voltage (initial) (at 20°C)	Min. 10⁶ ope. (switching frequency: at 180 times/min)	Conditions: at 20°C, switching frequency ON : OFF = 1 s : 9 s [Contact connected in series, Resistive load] 20 A 600 V DC Min. 10x10³ ope. 20 A 800 V DC Min. 10³ ope. 25 A 600 V DC Min. 6x10³ ope. [1 Form A contact only, Resistive load] 20 A 300 V DC Min. 10x10³ ope. 20 A 400 V DC Min. 10³ ope.	2000Vrms	5000Vrms	Ambient temperature: -40 to +55°C (When coil holding voltage is 33% to 110% of rated coil voltage) Ambient temperature: -40 to +85°C (When coil holding voltage is 33% to 60% of rated coil voltage) Humidity: 5 to 85% RH (Avoid icing and condensation)	Flux-resistant	Single Side Stable Type	PC board through hole terminal
HEV2aN-P-DC15V	15V DC	2 Form A	AgNi type	20 A 800 V DC, 25A 600V DC (at each 1 Form A contact connected in series), 20 A 400 VDC (at 1 Form A contact only)	1,000V DC	25A	100mA 5V DC	1,920mW	Max. 70% V of rated coil voltage (initial) (at 20°C)	Min. 5% V of rated coil voltage (initial) (at 20°C)	Min. 10⁶ ope. (switching frequency: at 180 times/min)	Conditions: at 20°C, switching frequency ON : OFF = 1 s : 9 s [Contact connected in series, Resistive load] 20 A 600 V DC Min. 10x10³ ope. 20 A 800 V DC Min. 10³ ope. 25 A 600 V DC Min. 6x10³ ope. [1 Form A contact only, Resistive load] 20 A 300 V DC Min. 10x10³ ope. 20 A 400 V DC Min. 10³ ope.	2000Vrms	5000Vrms	Ambient temperature: -40 to +55°C (When coil holding voltage is 33% to 110% of rated coil voltage) Ambient temperature: -40 to +85°C (When coil holding voltage is 33% to 60% of rated coil voltage) Humidity: 5 to 85% RH (Avoid icing and condensation)	Flux-resistant	Single Side Stable Type	PC board through hole terminal
HEV2aN-P-DC9V	9V DC	2 Form A	AgNi type	20 A 800 V DC, 25A 600V DC (at each 1 Form A contact connected in series), 20 A 400 VDC (at 1 Form A contact only)	1,000V DC	25A	100mA 5V DC	1,920mW	Max. 70% V of rated coil voltage (initial) (at 20°C)	Min. 5% V of rated coil voltage (initial) (at 20°C)	Min. 10⁶ ope. (switching frequency: at 180 times/min)	Conditions: at 20°C, switching frequency ON : OFF = 1 s : 9 s [Contact connected in series, Resistive load] 20 A 600 V DC Min. 10x10³ ope. 20 A 800 V DC Min. 10³ ope. 25 A 600 V DC Min. 6x10³ ope. [1 Form A contact only, Resistive load] 20 A 300 V DC Min. 10x10³ ope. 20 A 400 V DC Min. 10³ ope.	2000Vrms	5000Vrms	Ambient temperature: -40 to +55°C (When coil holding voltage is 33% to 110% of rated coil voltage) Ambient temperature: -40 to +85°C (When coil holding voltage is 33% to 60% of rated coil voltage) Humidity: 5 to 85% RH (Avoid icing and condensation)	Flux-resistant	Single Side Stable Type	PC board through hole terminal
HEV2aN-P-DC24V	24V DC	2 Form A	AgNi type	20 A 800 V DC, 25A 600V DC (at each 1 Form A contact connected in series), 20 A 400 VDC (at 1 Form A contact only)	1,000V DC	25A	100mA 5V DC	1,920mW	Max. 70% V of rated coil voltage (initial) (at 20°C)	Min. 5% V of rated coil voltage (initial) (at 20°C)	Min. 10⁶ ope. (switching frequency: at 180 times/min)	Conditions: at 20°C, switching frequency ON : OFF = 1 s : 9 s [Contact connected in series, Resistive load] 20 A 600 V DC Min. 10x10³ ope. 20 A 800 V DC Min. 10³ ope. 25 A 600 V DC Min. 6x10³ ope. [1 Form A contact only, Resistive load] 20 A 300 V DC Min. 10x10³ ope. 20 A 400 V DC Min. 10³ ope.	2000Vrms	5000Vrms	Ambient temperature: -40 to +55°C (When coil holding voltage is 33% to 110% of rated coil voltage) Ambient temperature: -40 to +85°C (When coil holding voltage is 33% to 60% of rated coil voltage) Humidity: 5 to 85% RH (Avoid icing and condensation)	Flux-resistant	Single Side Stable Type	PC board through hole terminal
HEV2aN-P-DC12V	12V DC	2 Form A	AgNi type	20 A 800 V DC, 25A 600V DC (at each 1 Form A contact connected in series), 20 A 400 VDC (at 1 Form A contact only)	1,000V DC	25A	100mA 5V DC	1,920mW	Max. 70% V of rated coil voltage (initial) (at 20°C)	Min. 5% V of rated coil voltage (initial) (at 20°C)	Min. 10⁶ ope. (switching frequency: at 180 times/min)	Conditions: at 20°C, switching frequency ON : OFF = 1 s : 9 s [Contact connected in series, Resistive load] 20 A 600 V DC Min. 10x10³ ope. 20 A 800 V DC Min. 10³ ope. 25 A 600 V DC Min. 6x10³ ope. [1 Form A contact only, Resistive load] 20 A 300 V DC Min. 10x10³ ope. 20 A 400 V DC Min. 10³ ope.	2000Vrms	5000Vrms	Ambient temperature: -40 to +55°C (When coil holding voltage is 33% to 110% of rated coil voltage) Ambient temperature: -40 to +85°C (When coil holding voltage is 33% to 60% of rated coil voltage) Humidity: 5 to 85% RH (Avoid icing and condensation)	Flux-resistant	Single Side Stable Type	PC board through hole terminal

Models table for series HE-V Series Relays
Part No.	Coil Voltage	Contact Arrangement	Contact Material	Nominal Switching Capacity (Resistive Load)	Max. Switching Voltage	Max. Switching Current	Minimum (For Reference)	Rated operating power	Pick-Up Voltage	Drop-Out Voltage	Expected Life: Mechanical	Expected Life: Electrical	Breakdown Voltage (Contact-Contact) (Initial)	Breakdown Voltage (Initial) : Between Contact And Coil	Conditions	Protective Construction	Operating Function	Terminal Type
HEV2aN-P-DC6V	6V DC	2 Form A	AgNi type	20 A 800 V DC, 25A 600V DC (at each 1 Form A contact connected in series), 20 A 400 VDC (at 1 Form A contact only)	1,000V DC	25A	100mA 5V DC	1,920mW	Max. 70% V of rated coil voltage (initial) (at 20°C)	Min. 5% V of rated coil voltage (initial) (at 20°C)	Min. 10⁶ ope. (switching frequency: at 180 times/min)	Conditions: at 20°C, switching frequency ON : OFF = 1 s : 9 s [Contact connected in series, Resistive load] 20 A 600 V DC Min. 10x10³ ope. 20 A 800 V DC Min. 10³ ope. 25 A 600 V DC Min. 6x10³ ope. [1 Form A contact only, Resistive load] 20 A 300 V DC Min. 10x10³ ope. 20 A 400 V DC Min. 10³ ope.	2000Vrms	5000Vrms	Ambient temperature: -40 to +55°C (When coil holding voltage is 33% to 110% of rated coil voltage) Ambient temperature: -40 to +85°C (When coil holding voltage is 33% to 60% of rated coil voltage) Humidity: 5 to 85% RH (Avoid icing and condensation)	Flux-resistant	Single Side Stable Type	PC board through hole terminal
HEV2aN-P-DC15V	15V DC	2 Form A	AgNi type	20 A 800 V DC, 25A 600V DC (at each 1 Form A contact connected in series), 20 A 400 VDC (at 1 Form A contact only)	1,000V DC	25A	100mA 5V DC	1,920mW	Max. 70% V of rated coil voltage (initial) (at 20°C)	Min. 5% V of rated coil voltage (initial) (at 20°C)	Min. 10⁶ ope. (switching frequency: at 180 times/min)	Conditions: at 20°C, switching frequency ON : OFF = 1 s : 9 s [Contact connected in series, Resistive load] 20 A 600 V DC Min. 10x10³ ope. 20 A 800 V DC Min. 10³ ope. 25 A 600 V DC Min. 6x10³ ope. [1 Form A contact only, Resistive load] 20 A 300 V DC Min. 10x10³ ope. 20 A 400 V DC Min. 10³ ope.	2000Vrms	5000Vrms	Ambient temperature: -40 to +55°C (When coil holding voltage is 33% to 110% of rated coil voltage) Ambient temperature: -40 to +85°C (When coil holding voltage is 33% to 60% of rated coil voltage) Humidity: 5 to 85% RH (Avoid icing and condensation)	Flux-resistant	Single Side Stable Type	PC board through hole terminal
HEV2aN-P-DC9V	9V DC	2 Form A	AgNi type	20 A 800 V DC, 25A 600V DC (at each 1 Form A contact connected in series), 20 A 400 VDC (at 1 Form A contact only)	1,000V DC	25A	100mA 5V DC	1,920mW	Max. 70% V of rated coil voltage (initial) (at 20°C)	Min. 5% V of rated coil voltage (initial) (at 20°C)	Min. 10⁶ ope. (switching frequency: at 180 times/min)	Conditions: at 20°C, switching frequency ON : OFF = 1 s : 9 s [Contact connected in series, Resistive load] 20 A 600 V DC Min. 10x10³ ope. 20 A 800 V DC Min. 10³ ope. 25 A 600 V DC Min. 6x10³ ope. [1 Form A contact only, Resistive load] 20 A 300 V DC Min. 10x10³ ope. 20 A 400 V DC Min. 10³ ope.	2000Vrms	5000Vrms	Ambient temperature: -40 to +55°C (When coil holding voltage is 33% to 110% of rated coil voltage) Ambient temperature: -40 to +85°C (When coil holding voltage is 33% to 60% of rated coil voltage) Humidity: 5 to 85% RH (Avoid icing and condensation)	Flux-resistant	Single Side Stable Type	PC board through hole terminal
HEV2aN-P-DC24V	24V DC	2 Form A	AgNi type	20 A 800 V DC, 25A 600V DC (at each 1 Form A contact connected in series), 20 A 400 VDC (at 1 Form A contact only)	1,000V DC	25A	100mA 5V DC	1,920mW	Max. 70% V of rated coil voltage (initial) (at 20°C)	Min. 5% V of rated coil voltage (initial) (at 20°C)	Min. 10⁶ ope. (switching frequency: at 180 times/min)	Conditions: at 20°C, switching frequency ON : OFF = 1 s : 9 s [Contact connected in series, Resistive load] 20 A 600 V DC Min. 10x10³ ope. 20 A 800 V DC Min. 10³ ope. 25 A 600 V DC Min. 6x10³ ope. [1 Form A contact only, Resistive load] 20 A 300 V DC Min. 10x10³ ope. 20 A 400 V DC Min. 10³ ope.	2000Vrms	5000Vrms	Ambient temperature: -40 to +55°C (When coil holding voltage is 33% to 110% of rated coil voltage) Ambient temperature: -40 to +85°C (When coil holding voltage is 33% to 60% of rated coil voltage) Humidity: 5 to 85% RH (Avoid icing and condensation)	Flux-resistant	Single Side Stable Type	PC board through hole terminal
HEV2aN-P-DC12V	12V DC	2 Form A	AgNi type	20 A 800 V DC, 25A 600V DC (at each 1 Form A contact connected in series), 20 A 400 VDC (at 1 Form A contact only)	1,000V DC	25A	100mA 5V DC	1,920mW	Max. 70% V of rated coil voltage (initial) (at 20°C)	Min. 5% V of rated coil voltage (initial) (at 20°C)	Min. 10⁶ ope. (switching frequency: at 180 times/min)	Conditions: at 20°C, switching frequency ON : OFF = 1 s : 9 s [Contact connected in series, Resistive load] 20 A 600 V DC Min. 10x10³ ope. 20 A 800 V DC Min. 10³ ope. 25 A 600 V DC Min. 6x10³ ope. [1 Form A contact only, Resistive load] 20 A 300 V DC Min. 10x10³ ope. 20 A 400 V DC Min. 10³ ope.	2000Vrms	5000Vrms	Ambient temperature: -40 to +55°C (When coil holding voltage is 33% to 110% of rated coil voltage) Ambient temperature: -40 to +85°C (When coil holding voltage is 33% to 60% of rated coil voltage) Humidity: 5 to 85% RH (Avoid icing and condensation)	Flux-resistant	Single Side Stable Type	PC board through hole terminal
