PhotoIC Couplers

A Commercialized PhotoIC Coupler For High-Speed Communication Between Industrial Equipment.

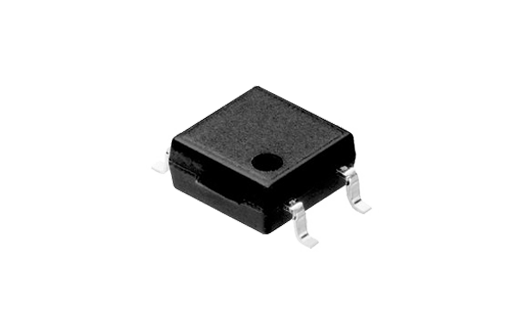

Panasonic, a worldwide leader in cutting-edge electronic components, has developed and introduces the NEW APS1 Series PhotoIC Coupler that transmits light signals while allowing electrical insulation. This revolutionary new product is designed for high-speed transmission of signals between industrial equipment such as motors and PLCs.

The swift progression of the Internet-Of-Things on the factory floor, has created a growing demand for faster and higher-volume data communications between various equipment, such as PLCs and Sensors, in factories and processes. Immunity to noise generated inside and outside the equipment is also required to guard against equipment malfunction and breakdown. The demand for higher functionality, increasing compact-size and the growing number of components can cause high temperatures inside the equipment; so proven operation in high-temperature environments is also required.

This new small size, high speed PhotoIC Coupler With Receiver Circuit IC is capable of creating isolation to protect circuits for high speed communication with a transfer rate of 50 Mbps.  The APS1 Series PhotoIC Coupler also has a high noise immunity of 15 kV/µs and an isolation voltage of 3,750Vrms.  With proven performance at 105ºC maximum operation temperature, this product is ideal for industrial applications. The new APS1 Series uses a Totem Pole (TTL) output logic.

Please be advised that Panasonic’s Semiconductor Relay and PhotoIC Coupler products are not impacted by the recent Semiconductor business transfer announced on November 28, 2019. Click here for more information.

Features

  • High Speed Photo Coupler With Receiver Circuit IC
  • Capable Of High Speed Communication
  • Transfer Rate: Typ. 50 Mbps
  • Small Size and Low Profile:  4.4 mm (W) x 4.3mm (L) x 2.1mm (H)
  • Common Mode Transient Immunity (CMTI):  Min. 15 kV/µs
  • Ambient Operating Temperature :  -40 to +105ºC, -40 to +221ºF
  • Isolation Voltage:  3,750 Vrms
  • Totem Pole Output Type
  • RoHS/REACH Compliant
  • UL/C-UL Approved

Benefits

  • Capable of High Speed Communication
  • High Noise Immunity
  • Safe Operation and Proven Performance at High Temperature

Industries

  • Factory Automation
  • Test and Measurement
  • Industrial
  • Medical Electronics
  • Robotics

Applications

  • Industrial Equipment, Such As PLCs, Temperature Controllers, Sensors, Motors, Inverters, Servo Amplifiers
  • Energy Management Devices, Including Power Conditioners And Storage Batteries
  • Factory Automation Networks
  • Measurement Equipment
  • Input /Output of High Speed Communication
