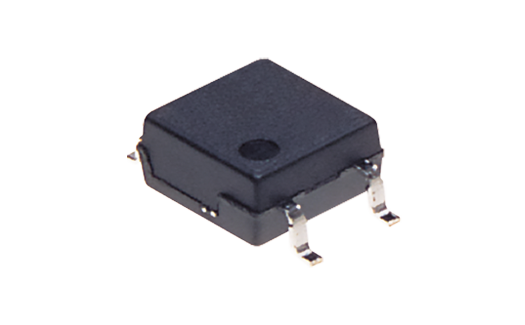

PhotoMOS GU SOP 1 Form A High Capacity (SOP4-pin type) Low on-resistance

Low On-Resistance, Miniature (SOP 4-Pin), 200V Load Voltage, High Current Switching

Panasonic, a worldwide leader in Relay Products, introduces the NEW AQY217GS Series High Capacity PhotoMOS Relays product line. The NEW AQY217GS Series PhotoMOS Relays are available in an SOP 4-pin Surface Mount package which is capable of handling up to 400mA at 200V in a small size package and maintains a low On-Resistance of 1.8 Ohms.

The latest addition to the Panasonic PhotoMOS Relay family, the NEW AQY217GS Series PhotoMOS Relays feature significantly high switching capability when considering the small package size.  These parts can handle both AC and DC loads.

The NEW AQY217GS Series Relays feature a low On-resistance value (typically in the range of 1.8 Ohms). This helps for lower heat dissipation and faster turn on activation speed.

PhotoMOS Relays can sometimes be used in applications where traditional Electromechanical Relays are already being used.  Replacing a standard Electromechanical Relay with PhotoMOS can provide additional benefits such as longer life cycle, better resistance to shock and vibration, low On-resistance and a theoretically infinite life cycle.  This makes PhotoMOS Relays a very good solution for Test & Measurement, Electrical Power and Industrial markets.  Some common applications for PhotoMOS Relays would be in the measurement market, security equipment, fire prevention systems and industrial machines.

Features

  • Low On-Resistance
  • Small Package:  4.3mm x 4.4mm x 2.1mm
  • High Capacity
  • High Current Switching
  • Load Current:  0.4A
  • Load Voltage:  200V AC / DC
  • Dual Packaging Options
  • UL Recognized
  • RoHS/REACH Compliant

Benefits

  • Less Heat Dissipation (Typical: 1.8Ω)
  • Miniaturization Of Systems:  SOP 4-Pin
  • Faster Turn On Activation Speed
  • Available In Both Tube And Tape/Reel Packaging
  • Specifications Allow Use In Place Of Standard Electromechanical Relays

Part Number List

Results 3
Models table for series PhotoMOS GU SOP 1 Form A High Capacity (SOP4-pin type) Low on-resistance
Part No.DatasheetContinuous Load Current (I<sub>L</sub>)I/O Isolation Voltage (V<sub>iso</sub>)Packing QuantityProduct NameTypePackageVoltage TypeLED Forward Current (I<sub>F</sub>)LED Reverse Voltage (V<sub>R</sub>)Peak Forward Current (I<sub>FP</sub>)Power Dissipation (P<sub>in</sub>)Load Voltage [ V<sub>L</sub> ] (V<sub>L</sub>)Peak Load Current (I<sub>peak</sub>)Power Dissipation (P<sub>out</sub>)Total Power Dissipation (P<sub>t</sub>)Ambient Temperature: Operating (T<sub>opr</sub>)Ambient Temperature: Storage (T<sub>stg</sub>)LED Operate Current (Typical) LED Operate Current (Maximum)LED Turn Off Current (Minimum) LED Turn Off Current (Typical) LED Dropout Voltage (Typical) (V<sub>F</sub>)LED Dropout Voltage (Maximum) (V<sub>F</sub>)On Resistance (Typical) (R<sub>on</sub>)On Resistance (Maximum) (R<sub>on</sub>)Off State Leakage Current (Maximum) (I<sub>Leak</sub>)Over Current ProtectionTurn On Time (Typical) Turn On Time (Maximum) Turn Off Time (Typical)Turn Off Time (Maximum)I/O Capacitance (Typical) (C<sub>iso</sub>)I/O Capacitance (Maximum) (C<sub>iso</sub>)Initial I/O Isolation Resistance (Minimum) (R<sub>iso</sub>)Maximum Switching Frequency LED Current (I<sub>F</sub>)Load Voltage (V<sub>L</sub>)Continuous Load Current (I<sub>L</sub>)Terminal TypeContact ArrangementExternal DimensionsRecommended Mounting Pad (Top View) Load currentJunction temperature (T<sub>j</sub>)Packing quantity<br>1-tube (pcs.)Packing quantity<br>Outer carton (pcs.)Packing quantity<br>1-reel (pcs.)
0.4 A
1,500 Vrms
Tube packing style
GU SOP 1 Form A High Capacity Low on-resistance
GU
SOP4
AC/DC
50 mA
5 V
1 A
75 mW
200 V
1.2 A
400 mW
450 mW
-40 to +85°C
-40 to +100°C
0.75 mA
3.0 mA
0.2 mA
0.7 mA
1.32 V
1.5 V
1.8 ohm
2.5 ohm
1μA
Nothing
1.2 ms
5 ms
0.03 ms
0.2 ms
0.8 pF
1.5 pF
1,000 M ohm
10 cps
Min.: 5 mA, Max.: 30 mA
Max.: 160 V
Max.: 0.4 A
Surface-mount terminal
1 Form A
0.4 A
125°C
100
2,000
0.4 A
1,500 Vrms
Tape and reel packing style (X)
GU SOP 1 Form A High Capacity Low on-resistance
GU
SOP4
AC/DC
50 mA
5 V
1 A
75 mW
200 V
1.2 A
400 mW
450 mW
-40 to +85°C
-40 to +100°C
0.75 mA
3.0 mA
0.2 mA
0.7 mA
1.32 V
1.5 V
1.8 ohm
2.5 ohm
1μA
Nothing
1.2 ms
5 ms
0.03 ms
0.2 ms
0.8 pF
1.5 pF
1,000 M ohm
10 cps
Min.: 5 mA, Max.: 30 mA
Max.: 160 V
Max.: 0.4 A
Surface-mount terminal
1 Form A
0.4 A
125°C
1,000
1,000
0.4 A
1,500 Vrms
Tape and reel packing style (Z)
GU SOP 1 Form A High Capacity Low on-resistance
GU
SOP4
AC/DC
50 mA
5 V
1 A
75 mW
200 V
1.2 A
400 mW
450 mW
-40 to +85°C
-40 to +100°C
0.75 mA
3.0 mA
0.2 mA
0.7 mA
1.32 V
1.5 V
1.8 ohm
2.5 ohm
1μA
Nothing
1.2 ms
5 ms
0.03 ms
0.2 ms
0.8 pF
1.5 pF
1,000 M ohm
10 cps
Min.: 5 mA, Max.: 30 mA
Max.: 160 V
Max.: 0.4 A
Surface-mount terminal
1 Form A
0.4 A
125°C
1,000
1,000
