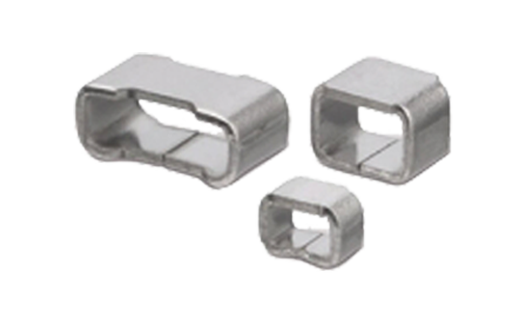

Chip Rings

Extremely robust Chip Rings for signal measuring terminals featuring a metal sheet structure for high reliability.

Series List

Results 1
Series table for lineup Chip Rings
Series/TypeDatasheetDimensions (inches)Conductor (mΩ)Dimensions (in)FeaturesReach (Report of Confirmation) ApplicationsRated Current (A)RoHS (Compliance Certificate)
0603
0805
1206
50
0603
0805
1206
・The folded metal sheet structure provides high robustness and a reliable connection .
・The taping package supports automatic placement machines.
・Supports reflow and flow soldering.
SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
To be mounted on printed circuit boards of general electronic equipment as a signal
measuring terminal.
2
RoHS compliant (Please refer to the Related Information.)
