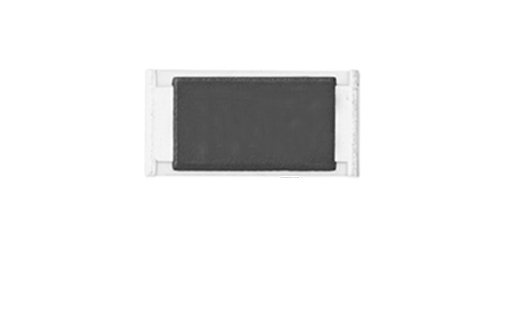

Chip Resistors

Panasonic offers a wide range of Chip Resistors including conventional Thick Film Chip Resistors, Specialized Resistors such as Thin Film, Current Sense, Anti-Sulfur, Anti-Surge and Metal Film Chip Resistors.

Panasonic’s standard Thick Film Chip Resistors are offered in cases sizes from 01005 to 2512.

Series List

Results 2
Series table for lineup Chip Resistors
Series/TypeDatasheetSize (mm) (in)Power Rating (W)Resistance Range (Ω)Resistance Tolerance (%)AEC-Q200RoHS (Compliance Certificate)Reach (Report of Confirmation)
01005 to 2512
0.031 to 1
1 to 10M
±5, Jumper
AEC-Q200 compliant
*Exemption ERJXG
RoHS compliant (Please refer to the Related Information.)
SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
01005 to 2512
0.05 to 1
10 to 2.2M
±0.5, ±1
AEC-Q200 compliant
*Exemption ERJXG,ERJ1R
RoHS compliant (Please refer to the Related Information.)
SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
