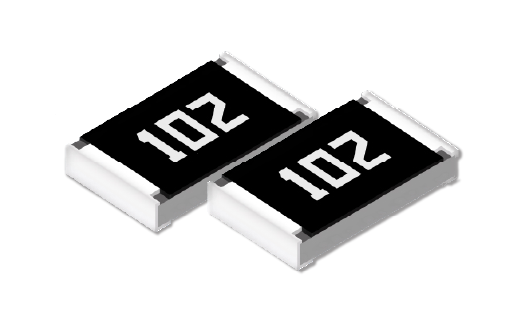

Thin Film / Metal Film Chip

Panasonic’s industry leading Thin-Film Chip Resistors features include high reliability at high temperature and high humidity as well as high accuracy, low current noise and excellent linearity. Panasonic’s High Precision Thin Film Resistors are designed for robust applications where long life is crucial in markets such as automotive, appliance or industrial. These Resistors boast a high accuracy of up to 10ppm, 0.05% making them one of the best-in-class Resistors on the market today. Panasonic Thin-Film Resistors are available in case sizes down to 0201. Compliant standards include: IEC 60115-8, JIS C 5201-8, and EIAJ RC-2133B. These Resistors are AEC-Q200 Certified.

Series List

Results 3
Series table for lineup Thin Film / Metal Film Chip
Series/TypeDatasheetSize (mm) (in)Resistance Range (Ω)Resistance Tolerance (%)AEC-Q200Reach (Report of Confirmation) Power Rating (W)RoHS (Compliance Certificate)
0201 to 1206
10 to 1M
±0.05 to ±0.5
AEC-Q200 compliant
SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
0.05 to 0.25
RoHS compliant (Please refer to the Related Information.)
0402 to 0805
47 to 750k
±0.05, ±0.1
AEC-Q200 compliant
SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
0.063 to 0.125
RoHS compliant (Please refer to the Related Information.)
0603, 0805
200 to 1M
±0.1, ±0.5
AEC-Q200 compliant
SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
0.20, 0.25
RoHS compliant (Please refer to the Related Information.)
