Grid-EYE® AMG8834EVAL Evaluation Kit
Grid-EYE® Sensor Evaluation Kit Enables Fast Prototyping Of IoT And Many Other Applications

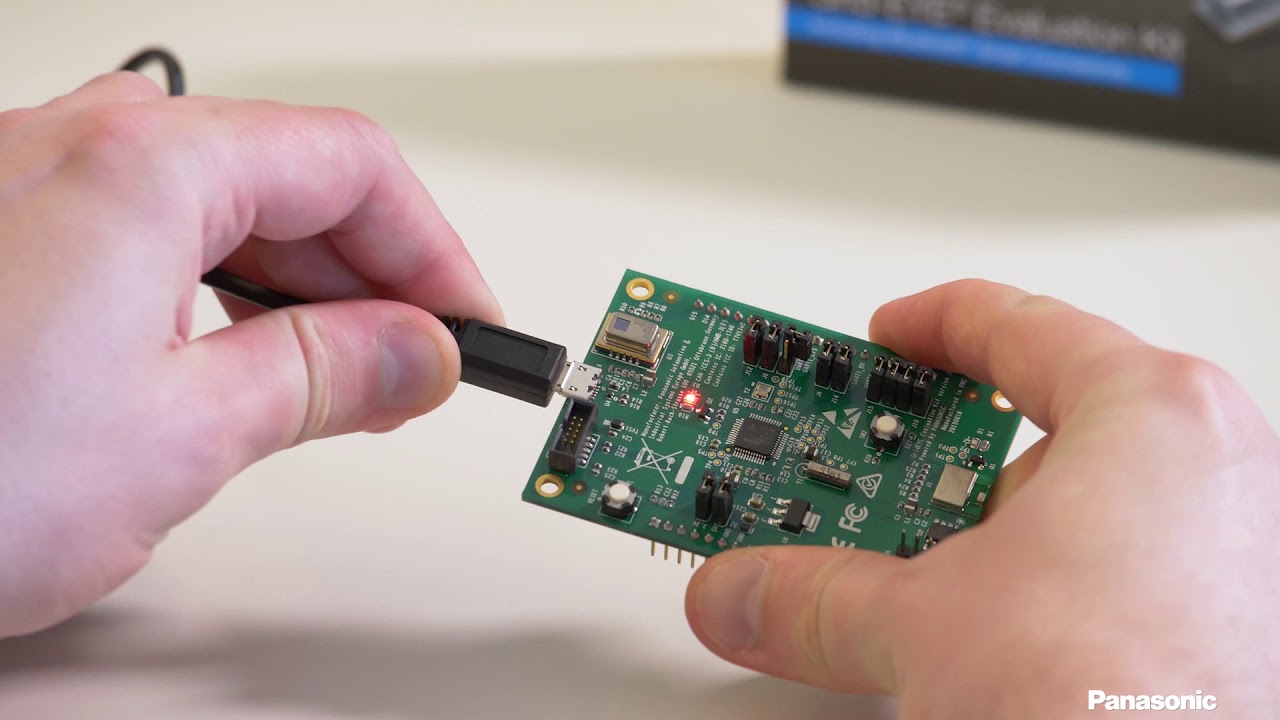

Panasonic is pleased to announce the availability of the Grid-EYE AMG8834EVAL Evaluation Kit featuring TrackMe Software for its' Grid-EYE Infrared Array Sensor, which integrates a ”nanopower” Bluetooth® Smart Module and a microcontroller. The AMG8834EVAL Kit is intended for prototyping the Grid-EYE Sensor which is a 64 pixel IR camera in a surface mount package measuring 11.6mm x 8mm x 4.3mm, which integrates the MEMS Sensor, lens and I2C interface.
The integrated Bluetooth RF Module in the AMG8834EVAL is the Panasonic PAN1740 Series which draws 4.9mA in transmit or receive operating modes, which means it can be powered by coin cell batteries. The IR Sensor has 64 thermopile elements in an 8×8 grid format that detect absolute surface temperature without any contact.
Features
Some of the distinguishing product features are as follows:
- Grid-EYE Sensor AMG8834
- Bluetooth Low Energy Module PAN1740
- Atmel ATSAM-D21G18A Microcontroller
- Dual Purpose Evaluation Board With Independent and Arduino Models
- TrackMe Software For People Detection, Tracking, & Counting
Applications
The Grid-EYE Sensor can be used in a wide range of applications and this Evaluation Kit allows designers to proto-type and test it in their applications.
- Motion Detection
- Presence Detection
- Temperature Detection
- Hot Spot Detection
- Safety and Lighting Control
- Building Control & Energy Saving
- People Tracking/Counting
- Consumer Comfort
- Gesture Control
Software
Note: Customers who want to have access to the source code of the Bluetooth Module Firmware of the Evaluation Kit need to sign an SLA with Dialog. Please send an email to: grideye@eu.panasonic.com for further details.
BSD License applies to all the sample codes and APIs that customers will download.
Documentation
The following supporting documents which include all the details for setting up, using and developing applications on the Evaluation Kit are available for download here:
- Quick Start Guide
- User Manual
- Schematics Evaluation Kit
- Communication Protocol
- Windows 8/10 USB Driver Installation (Disable Driver Signature Verification)
- SAM-BA Application Notes
- EULA
Source Code
- Grid-EYE Sample Code (Python)
- Arduino Code (Compatible with Evaluation Kit)
- Labview Sample Code
- Labview Software Source Code (New)
- APIs Grid-EYE SC
Support Tools
Useful Links
The following links can be useful in developing applications.
- To DSPS Application for iOS
- To DSPS Application for Android
- To Grid-EYE Product Page
- To PAN1740 Product Page
- To Dialog Semiconductor
- To Atmel MCU Datasheet
- To Atmel SAM-BA In-system Programmer
Latest Videos
Playlist
Panasonic Grid-EYE® Infrared Array Sensor for Human Detection Applications
