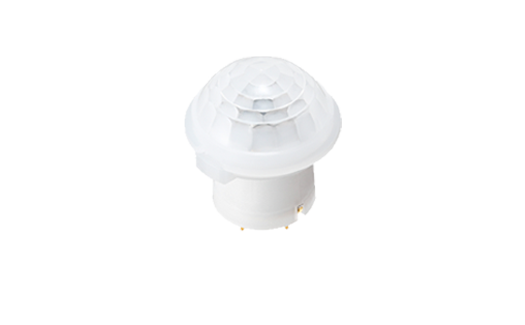

EKMB (WL) Series

Panasonic EKMB Series PIR Motion Sensors are suitable for low current consumption for battery-driven applications. Reduces current consumption (1, 2, or 6μA) with featured special circuit design technology allowing longer battery life.

  • Low current options available in 1μA, 2μA, and 6μA
  • Available in lensless, 5m distance, 12m, and 17m long-distance options
  • Wall installation, horizontally wide, high-density long distance, low profile types available
  • Available in black, white and pearl white lens colors

Interested in speaking with a PIR Sensors Expert? Contact Us Now!

Newest Product Highlights

Line Extension Graphic 2

25 New 6 microamp High Sensitivity Type Part Numbers Available in Various Lens Options

The EKMB Series PIR Motion Sensors are available in 6µA High Sensitivity Type options and feature the following:

  • High Sensitivity For Detection Performance
  • Plug And Play Solution With Digital Output
  • Sensors Contain Single-Chip ASIC That Contains Internal Amplifier And Comparator Circuit To Simplify Design
  • High Signal-To-Noise Ratio Ensures Prevention Of False Triggers
  • Advanced PIR Sensor Design Improves Accuracy Of Detection
  • Low Power Consumption in 6µA

All-in-One Plug-and-Play Sensor

Underneath the lens of Panasonic’s PIR (Passive Infrared) Sensors is a special design that uses a single-chip ASIC solution and four-element array pyroelectric sensing elements. The internal circuitry is integrated both amplifier and comparator circuits contained inside a TO-5 metal can with an optical filter to allow infrared to pass through while also preventing interferences caused by electromagnetic fields, such as those generated by cell phones and wireless devices.

New PIR Sensors Resources

Everything there is to know about Panasonic’s PIR Motion Sensors product line is now available in an easy-to-use Frequently Asked Questions brochure!

Thirty-nine (39) comprehensive pages on how to design in and use Panasonic PIR Motion Sensors make specifying these high technology products easier than ever. Operating principles, electrical connection, output signals, and in-depth product specification information are all available for easy reference.

New Blog Post: PIR Motion Sensors Technology for Low Power or How Power Applications and Lens Options

Learn how to choose the right PIR Sensor for your low power or line power application requirements and lens options. Chose the right lens by detection distance, ceiling installation height, the field of view requirements, and the number of detection zones.

Part Number List

Results 139
Models table for series EKMB (WL) Series
Part No.DatasheetLens TypeStandby current consumptionLens ColorDetection DistanceOutput TypeOutput Current
(During Detection Period)
Detection Area (Horizontal)Detection Area (Vertical)Number of Detection ZonesDetection Area A (Vertical)Detection Area A (Horizontal)Detection Area A (Detection Zone)Detection Area B (Horizontal)Detection Area B (Vertical)Detection Area B (Detection Zone)Sensor Type Detection Sensitivity
Horizontally wide detection type
6µA
White
5m
Digital
100μA
35°
122°
88本
150°
20°
16
Horizontally wide detection type
6µA
Black
5m
Digital
100μA
35°
122°
88本
150°
20°
16
Wall Installation Detection Type (corner)
1µA
Black
12m, 6m, 3m
Digital
100µA
105°
40°
68
High-end
Standard
Wall Installation Detection Type (corner)
1µA
Pearl White
12m, 6m, 3m
Digital
100µA
105°
40°
68
High-end
Standard
High Density Long Distance Detection Type
1µA
White
12m
Digital
100µA
62°
62°
128
High-end
Standard
High Density Long Distance Detection Type
1µA
Black
12m
Digital
100µA
62°
62°
128
High-end
Standard
Ultra Slight Motion Detection Type
1µA
Black
2.5m
Digital
100µA
99°
99°
192
High-end
Standard
Flat Square Type
1µA
Pearl White
5m
Digital
100µA
90°
90°
40
High-end
Standard
Flat Square Type
1µA
White
5m
Digital
100µA
90°
90°
40
High-end
Standard
Low Profile Type
1µA
White
5m
Digital
100µA
90°
90°
32
High-end
Standard
