ESE-58 Series Detector Switch (3.5mm x 3.0mm x 0.9mm, Horizontal SMD, Side Operation)

Panasonic’s ESE-58 Series Detector Switch is 3.5mm x 3.0mm with a thin design and a 0.9mm body height. This switch features a single-pole single-throw with both normally open or closed options and a horizontal actuation motion which can be either from either left or right sides. Switching with stable contact pressure allows this switch to self-clean the contacts through a wiping motion. The ESE-58 Series Detector Switch comes in J-bent terminal types as well as positioning boss options. This switch is used in detecting components in portable electronic equipment such as mobile phones, wearables, and digital cameras.

Features and Benefits

  • Thin Body: 0.9 mm
  • Circuit Type: Normally-Open And Normally-Closed Types Are Available
  • Lineup With Variations In Right-Left Operations

Applications

  • Detection Of Media In Portable Electronic Equipment

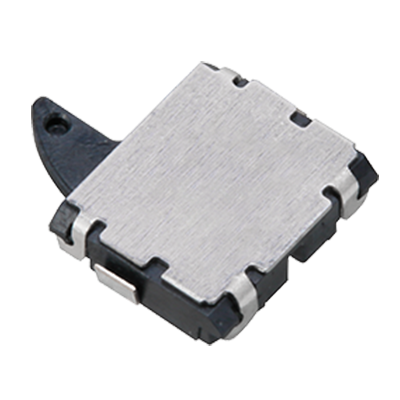

Series image for ESE-58 Series Detector Switch (3.5mm x 3.0mm x 0.9mm, Horizontal SMD, Side Operation)

ESE-58 Series Detector Switch (3.5mm x 3.0mm x 0.9mm, Horizontal SMD, Side Operation)

Part number list

Results 8
Models table for series ESE-58 Series Detector Switch (3.5mm x 3.0mm x 0.9mm, Horizontal SMD, Side Operation)
Part No.DatasheetOperation TypePositioningTerminal TypeStyleCircuit TypeTravel TypeDirection of MotionRatingContact Resistance (M&Omega: Max.)Insulation Resistance (MΩ Min. at 100V DC)Dielectric Withstanding VoltageOperating ForceExternal Dimensions (WxDxH)Boss HeightPoles and ThrowsFull Stroke PositionPushing distanceOperating LifeTemperature RangeHeat ResistanceLow Temperature ResistanceHumidity ResistancePackagingMinimum Quantity/Packing UnitQuantity/Carton
ESE-58L11A
Horizontally
Without Boss
J-bent terminals
For reflow soldering
Normally open type (N.O.)
Standard stroke type
Left-side operation type
50 µA 3 V DC to 10 mA 5 V DC (Resistive load)
500 mΩ max. (Initial)
100 MΩ min. (at 100 V DC for 1 minute)
100 V AC (50 Hz or 60 Hz) for 1 minute
350 mN max.
3.5 x 3.0 x 0.9 mm
1-pole 1-throw
1.25 mm
1.4 mm
50,000 cycles min.
Standard: -10°C to +60°C
+70°C for 96 hours
-25°C for 96 hours
+40 °C 90 % to 95 % RH for 96 hours
Embossed Taping (Reel Pack)
5,000 pcs.
30,000 pcs.
ESE-58R11A
Horizontally
Without Boss
J-bent terminals
For reflow soldering
Normally open type (N.O.)
Standard stroke type
Right-side operation type
50 µA 3 V DC to 10 mA 5 V DC (Resistive load)
500 mΩ max. (Initial)
100 MΩ min. (at 100 V DC for 1 minute)
100 V AC (50 Hz or 60 Hz) for 1 minute
350 mN max.
3.5 x 3.0 x 0.9 mm
1-pole 1-throw
1.25 mm
1.4 mm
50,000 cycles min.
Standard: -10°C to +60°C
+70°C for 96 hours
-25°C for 96 hours
+40 °C 90 % to 95 % RH for 96 hours
Embossed Taping (Reel Pack)
5,000 pcs.
30,000 pcs.
ESE-58R61B
Horizontally
With Boss
J-bent terminals
For reflow soldering
Normally closed type (N.C.)
Standard stroke type
Right-side operation type
50 µA 3 V DC to 10 mA 5 V DC (Resistive load)
500 mΩ max. (Initial)
100 MΩ min. (at 100 V DC for 1 minute)
100 V AC (50 Hz or 60 Hz) for 1 minute
350 mN max.
3.5 x 3.0 x 0.9 mm
0.4 mm
1-pole 1-throw
1.5 mm
1.4 mm
50,000 cycles min.
Standard: -10°C to +60°C
+70°C for 96 hours
-25°C for 96 hours
+40 °C 90 % to 95 % RH for 96 hours
Embossed Taping (Reel Pack)
5,000 pcs.
30,000 pcs.
ESE-58R11B
Horizontally
With Boss
J-bent terminals
For reflow soldering
Normally open type (N.O.)
Standard stroke type
Right-side operation type
50 µA 3 V DC to 10 mA 5 V DC (Resistive load)
500 mΩ max. (Initial)
100 MΩ min. (at 100 V DC for 1 minute)
100 V AC (50 Hz or 60 Hz) for 1 minute
350 mN max.
3.5 x 3.0 x 0.9 mm
0.4 mm
1-pole 1-throw
1.5 mm
1.4 mm
50,000 cycles min.
Standard: -10°C to +60°C
+70°C for 96 hours
-25°C for 96 hours
+40 °C 90 % to 95 % RH for 96 hours
Embossed Taping (Reel Pack)
5,000 pcs.
30,000 pcs.
ESE-58L61B
Horizontally
With Boss
J-bent terminals
For reflow soldering
Normally closed type (N.C.)
Standard stroke type
Left-side operation type
50 µA 3 V DC to 10 mA 5 V DC (Resistive load)
500 mΩ max. (Initial)
100 MΩ min. (at 100 V DC for 1 minute)
100 V AC (50 Hz or 60 Hz) for 1 minute
350 mN max.
3.5 x 3.0 x 0.9 mm
0.4 mm
1-pole 1-throw
1.5 mm
1.4 mm
50,000 cycles min.
Standard: -10°C to +60°C
+70°C for 96 hours
-25°C for 96 hours
+40 °C 90 % to 95 % RH for 96 hours
Embossed Taping (Reel Pack)
5,000 pcs.
30,000 pcs.
ESE-58L11B
Horizontally
With Boss
J-bent terminals
For reflow soldering
Normally open type (N.O.)
Standard stroke type
Left-side operation type
50 µA 3 V DC to 10 mA 5 V DC (Resistive load)
500 mΩ max. (Initial)
100 MΩ min. (at 100 V DC for 1 minute)
100 V AC (50 Hz or 60 Hz) for 1 minute
350 mN max.
3.5 x 3.0 x 0.9 mm
0.4 mm
1-pole 1-throw
1.5 mm
1.4 mm
50,000 cycles min.
Standard: -10°C to +60°C
+70°C for 96 hours
-25°C for 96 hours
+40 °C 90 % to 95 % RH for 96 hours
Embossed Taping (Reel Pack)
5,000 pcs.
30,000 pcs.
ESE-58L61A
Horizontally
Without Boss
J-bent terminals
For reflow soldering
Normally closed type (N.C.)
Standard stroke type
Left-side operation type
50 µA 3 V DC to 10 mA 5 V DC (Resistive load)
500 mΩ max. (Initial)
100 MΩ min. (at 100 V DC for 1 minute)
100 V AC (50 Hz or 60 Hz) for 1 minute
350 mN max.
3.5 x 3.0 x 0.9 mm
1-pole 1-throw
1.25 mm
1.4 mm
50,000 cycles min.
Standard: -10°C to +60°C
+70°C for 96 hours
-25°C for 96 hours
+40 °C 90 % to 95 % RH for 96 hours
Embossed Taping (Reel Pack)
5,000 pcs.
30,000 pcs.
ESE-58R61A
Horizontally
Without Boss
J-bent terminals
For reflow soldering
Normally closed type (N.C.)
Standard stroke type
Right-side operation type
50 µA 3 V DC to 10 mA 5 V DC (Resistive load)
500 mΩ max. (Initial)
100 MΩ min. (at 100 V DC for 1 minute)
100 V AC (50 Hz or 60 Hz) for 1 minute
350 mN max.
3.5 x 3.0 x 0.9 mm
1-pole 1-throw
1.25 mm
1.4 mm
50,000 cycles min.
Standard: -10°C to +60°C
+70°C for 96 hours
-25°C for 96 hours
+40 °C 90 % to 95 % RH for 96 hours
Embossed Taping (Reel Pack)
5,000 pcs.
30,000 pcs.
