ESE-16 Series Detector Switch (2.2mm x 3.5mm x 1.5mm, Horizontal SMD, Top Operation)

Panasonic’s ESE-16 Series Detector Switch is a 2.2mm x 3.5mm x 1.5mm surface-mount type with a thin body profile for space-saving. This switch features a single-pole single-throw with only a normally open contact form. This ESE-16 Series can be actuated with only a small actuation force of 250mN max and maintains a stable contact pressure which self-cleans the contact surface through a wiping motion. The ESE-16 Series Switch comes in a J-bent terminal and supports a reflow soldering style. This switch can be mounted by using standard nozzles for ease of assembly.

Features and Benefits

  • External Dimensions: 2.2 mm × 3.35 mm ( Height:1.5 mm )
  • Light Operating Force: 250 mN Or Less
  • Automounting Supported: Can Be Mounted By Standard Nozzles

Applications

  • Detection Of Media In Portable Electronic Equipment

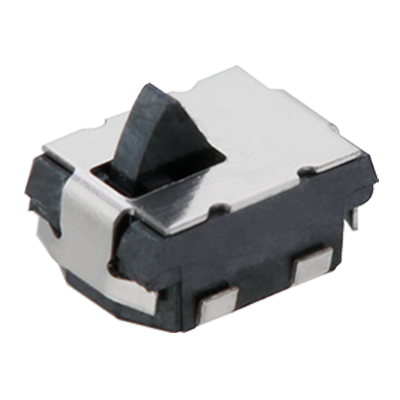

Series image for ESE-16 Series Detector Switch (2.2mm x 3.5mm x 1.5mm, Horizontal SMD, Top Operation)

ESE-16 Series Detector Switch (2.2mm x 3.5mm x 1.5mm, Horizontal SMD, Top Operation)

Part number list

Results 1
Models table for series ESE-16 Series Detector Switch (2.2mm x 3.5mm x 1.5mm, Horizontal SMD, Top Operation)
Part No.DatasheetOperation TypePositioningTerminal TypeStyleCircuit TypeTravel TypeDirection of MotionRatingContact Resistance (M&Omega: Max.)Insulation Resistance (MΩ Min. at 100V DC)Dielectric Withstanding VoltageOperating ForceExternal Dimensions (WxDxH)Mounting Height (mm) (mm)Poles and ThrowsFull Stroke PositionPushing distanceOperating LifeTemperature RangeHeat ResistanceLow Temperature ResistanceHumidity ResistancePackagingMinimum Quantity/Packing UnitQuantity/Carton
ESE-16J001
Vertically, Horizontally
Without Boss
J-bent terminals
For reflow soldering
Normally open type (N.O.)
Standard stroke type
Up to Down operation
50 µA 3 V DC to 10 mA 5 V DC (Resistive load)
500 mΩ max. (Initial)
100 MΩ min. (at 100 V DC for 1 minute)
100 V AC (50 Hz or 60 Hz) for 1 minute
250 mN max.
2.2 x 3.35 x 1.5 mm
1.5 mm
1-pole 1-throw
1.5 mm
1.0 mm
50,000 cycles min.
Standard: -10°C to +60°C
Automotive: -40°C to +85°C
Standard: +70°C for 96 hours
Automotive: +85°C for 96 hours
Standard: -25°C for 96 hours
Automotive: -40°C for 96 hours
+40 °C 90 % to 95 % RH for 96 hours
Embossed Taping (Reel Pack)
4,000 pcs.
24,000 pcs.
