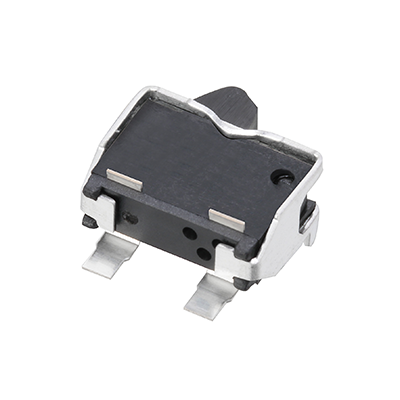

Specifications
| Item | Performance characteristics |
|---|---|
| Operation Type | Horizontally |
| Positioning | With Boss |
| Terminal Type | Straight terminal |
| Style | For reflow soldering |
| Circuit Type | Normally open type (N.O.) |
| Travel Type | Standard stroke type |
| Direction of Motion | Left-side operation type |
| Rating | 50 µA 3 V DC to 10 mA 5 V DC (Resistive load) |
| Contact Resistance (M&Omega: Max.) | 500 mΩ max. (Initial) |
| Insulation Resistance (MΩ Min. at 100V DC) | 100 MΩ min. (at 100 V DC for 1 minute) |
| Dielectric Withstanding Voltage | 100 V AC (50 Hz or 60 Hz) for 1 minute |
| Operating Force | 290 mN max. |
| External Dimensions (WxDxH) | 6.15 x 4.55 x 2.85 mm |
| Mounting Height (mm) | 2.85 mm |
| Boss Height | 0.5 mm |
| Poles and Throws | 1-pole 1-throw |
| Full Stroke Position | 0.6 mm |
| Pushing distance | 2.0 mm |
| Operating Life | 50,000 cycles min. |
| Temperature Range | Standard: -10°C to +70°C Automotive: -40°C to +85°C |
| Heat Resistance | Standard: +80°C for 96 hours Automotive: +85°C for 96 hours |
| Low Temperature Resistance | Standard: -25°C for 96 hours Automotive: -40°C for 96 hours |
| Humidity Resistance | +40 °C 90 % to 95 % RH for 96 hours |
| Packaging | Embossed Taping (Reel Pack) |
| Minimum Quantity/Packing Unit | 3,000 pcs. |
| Quantity/Carton | 18,000 pcs. |
