Bluetooth 6.0 & 802.15.4 Module!


The PAN B611-1 Series is a Bluetooth 6.0 Low Energy (LE) module based on the Nordic nRF54L15 single chip controller.


This new Bluetooth Low Energy Modules features a 128 MHz Arm Cortex M33 processor with 1.5 MB non-volatile memory and 256 KB RAM.  The PANB611-1x Module has a hybrid layout with castellated holes and bottom pads.  It is available in 3 variants and is also available with either chip antenna or bottom pad for external antennas for each variant

  • Premium – w/Additional 32 kHz Crystal and 32Mbit Flash
  • Standard – w/Additional 32 kHz crystal
  • Economy – Base Version


The all-in-one SoC including a superset of the most prominent nRF54 Series features combined with more performance and memory, while minimizing current consumption. In addition, the ultra-low current consumption of the PAN B611-1 Series makes the module an ideal choice for battery-powered devices. The small size hybrid castellated holes & LGA footprint design offers the possibility for optical outgoing inspection, 2-layer designs, and fast prototyping with hand soldering, while still offering more GPIOs on the bottom if needed.

The module is certified for CE RED, FCC, ISED and MIC.

General Features and Benefits

  • Regional Certifications Saves Customers Time and Money
  • Onboard or External Antenna Gives Customers More Options
  • BLE 6.0, Mesh, Zigbee, Thread Support Allows for a Variety of Protocols Concurrently
  • Hybrid Layout Offers Easier Prototyping

PAN B611-1x Series Features

  • Surface Mount Type with Castellated Holes, Dimensions:10.35 mm × 9.8 mm × 1.9 mm
  • Nordic nRF54L15 featuring a 128 MHz Arm Cortex M33 processor, 1.5 MB non-volatile Memory, and 256 KB RAM
  • Bluetooth 6.0 LE including LE 2M and LE Coded PHY
  • Supports 802.15.4 - ZigBee® and Thread
  • 128-bit AES/ECB/CCM/AAR co-processor
  • Up to 32× General Purpose I/Os (GPIO) at 1.7 V to 3.6 V, which are shared by SPI, I²C, UART, PWM, ADC (up to 14-bit), NFC, QSPI

Bluetooth

  • Channel Sounding
  • LE 2M and LE Coded
  • LE Audio and Isochronous Channels
  • Extended Advertising and Channel Sounding
  • Mesh Networking

Characteristics

  • Typical Sensitivity: 96 dBm (at 1 Mbps) and 104 dBm (at 125 kbps)
  • Programmable From: -8 dBm to +8 dBm in 1 dB steps
  • Typical Sleep current consumptions: 0.6 μA (System OFF, Wake on pin, 0KB RAM retained) 3.7 μA (System ON, Wake on pin +GRTC, LFRC, 256 KB RAM retained)
  • Typical Radio Current Consumptions:
    • 3.3 mA (Radio RX @ 1 Mbps, HFXO
    • 4.8 mA (Radio TX @ 0 dBm, HFXO
    • 9.8 mA (Radio TX @ 8dBm, HFXO
  • On module DC DC and LDO regulators with automated low current modes
  • Wide Temperature ranges from -40 °C to 85 °C
  • Voltage Range: 1.7 V to 3.6 V

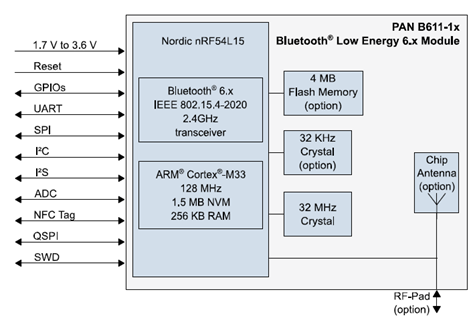

Block Diagram

Series image for PAN B611-1x Series

PAN B611-1x Series

Part number list

Results 6
Models table for series PAN B611-1x Series
Part No.DatasheetUsed ICsRx Sensitivity (dBm)Programmable Tx Power (Max.) Operating Temp.Current Consum.Frequency RangeData Rate (Max. Air)Size (mm) (mm)LayoutAntennaAdditional MemoryAdditional Slow Clock Crystal
nrf54L15
-96 dBm (at 1 Mbps) and -104 dBm (at 125 kbps)
8dBm
-40 C to +85C
3.3 mA (Radio RX @ 1 Mbps, HFXO 4.8 mA (Radio TX @ 0 dBm, HFXO 9.8 mA (Radio TX @ 8dBm, HFXO
2402 MHz to 2480 MHz
2Mbps
10.35 mm × 9.8 mm × 1.9mm
Hybrid Castellated holes and bottom pads
On board chip antenna
None
None
nrf54L15
-96 dBm (at 1 Mbps) and -104 dBm (at 125 kbps)
8dBm
-40 C to +85C
3.3 mA (Radio RX @ 1 Mbps, HFXO 4.8 mA (Radio TX @ 0 dBm, HFXO 9.8 mA (Radio TX @ 8dBm, HFXO
2402 MHz to 2480 MHz
2Mbps
10.35 mm × 9.8 mm × 1.9mm
Hybrid Castellated holes and bottom pads
On board chip antenna
None
32kHz crystal
nrf54L15
-96 dBm (at 1 Mbps) and -104 dBm (at 125 kbps)
8dBm
-40 C to +85C
3.3 mA (Radio RX @ 1 Mbps, HFXO 4.8 mA (Radio TX @ 0 dBm, HFXO 9.8 mA (Radio TX @ 8dBm, HFXO
2402 MHz to 2480 MHz
2Mbps
10.35 mm × 9.8 mm × 1.9mm
Hybrid Castellated holes and bottom pads
RF-Bottom pad
None
None
nrf54L15
-96 dBm (at 1 Mbps) and -104 dBm (at 125 kbps)
8dBm
-40 C to +85C
3.3 mA (Radio RX @ 1 Mbps, HFXO 4.8 mA (Radio TX @ 0 dBm, HFXO 9.8 mA (Radio TX @ 8dBm, HFXO
2402 MHz to 2480 MHz
2Mbps
10.35 mm × 9.8 mm × 1.9mm
Hybrid Castellated holes and bottom pads
RF-Bottom pad
None
32kHz crystal
nrf54L15
-96 dBm (at 1 Mbps) and -104 dBm (at 125 kbps)
8dBm
-40 C to +85C
3.3 mA (Radio RX @ 1 Mbps, HFXO 4.8 mA (Radio TX @ 0 dBm, HFXO 9.8 mA (Radio TX @ 8dBm, HFXO
2402 MHz to 2480 MHz
2Mbps
10.35 mm × 9.8 mm × 1.9mm
Hybrid Castellated holes and bottom pads
RF-Bottom pad
4Mb flash memory
32kHz crystal
nrf54L15
-96 dBm (at 1 Mbps) and -104 dBm (at 125 kbps)
8dBm
-40 C to +85C
3.3 mA (Radio RX @ 1 Mbps, HFXO 4.8 mA (Radio TX @ 0 dBm, HFXO 9.8 mA (Radio TX @ 8dBm, HFXO
2402 MHz to 2480 MHz
2Mbps
10.35 mm × 9.8 mm × 1.9mm
Hybrid Castellated holes and bottom pads
On board chip antenna
4Mb flash memory
32kHz crystal

Resources

Filter by:
Showing 1 to 5 of 5 results
Results5

Learn About the PAN B611-1x Series Evaluation Kits

PAN B611-1x Evaluation Kit Photo
An evaluation board featuring the PAN B611-1x Modules

The PAN B611-1x Series Evaluation Boards are available with either PAN B611-1C or PAN B611-1B Series Bluetooth 6.0 Low Energy Module based on the Nordic Semiconductor nRF5415L single-chip controller..

  • PAN B611-1C Series Evaluation Boards feature one Part Number: ENW89861AXKF
  • PAN B611-1B Series Evaluation Boards feature one Part Number: ENW89861DXKF
