EEE-FN Series (Standard/High Temp. Reflow)

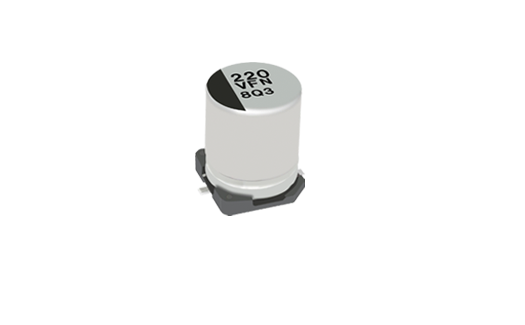

Panasonic's EEE-FN Series Surface Mount Type Aluminum Electrolytic Capacitors features small case size, higher capacitance and an expanded Rated Voltage Range of 6.3 V.DC to 100 V.DC with high-temperature lead-free reflow available with 6.3 V.DC to 50 V.DC parts. The EEE-FN Series provides space reduction and allows for a reduced number of Capacitors on the board.

Features:

  • Smaller Case Size
  • Operating Temperature Range:  -55°C to +105°C
  • Rated Voltage Range:  6.3 to 100 VDC
  • Rated Capacitance Range:  10µF to 1800µF
  • Endurance:  2,000 Hours at 105°
  • High-Temperature Lead-Free Reflow:  6.3 V.DC to 50 V.DC
  • Low ESR / High Ripple Current
  • Vibration-Proof Variants (30G) Available In The EEE-FN Series
  • RoHS / REACH Compliant

Benefits:

  • Space and Cost Savings
  • Wide Voltage Range Options In One Series
  • Smoothing Power Output
  • Environmentally Friendly
AEC-Q200 Logo

An AEC-Q200 Compliant Series

Panasonic components specified as AEC-Q200 Compliant are consistently designed into automotive systems.  However, today’s Design Engineers are specifying AEC-Q200 components to meet the high-quality standards of devices beyond automotive applications.

Parts that pass the AEC tests are qualified, high-quality components that can be used in critical environments.  Therefore, there should be no need to conduct other component level tests saving both time and expense.

Current AEC-Q200 Standard documents developed by the AEC Component Technical Committee are available on the AEC website. The AEC is an organization based in the U.S. that sets qualification standards for the supply of components in the automotive electronics industry.

If your next device requires components that meet the Automotive Electronics Council (AEC) requirements for components suitable for harsh automotive environments, think Panasonic!

Download a complete list of Panasonic AEC-Q200 Compliant Component Series and specify reliably!

AEC-Q200-Anti-Vibration-Caps_Caps_414x200

Design In Anti-Vibration Capacitors From Panasonic

Panasonic expands twelve proven, Surface Mount Aluminum Electrolytic Capacitor series to include AEC-Q200 Compliant Anti-Vibration part numbers able to withstand 30G! Suitable for harsh automotive and strenuous environments, select Anti-Vibration variant parts where high capacitance current capability is demanded by the application.

Part Number List

Results 180
Models table for series EEE-FN Series (Standard/High Temp. Reflow)
Part No.DatasheetBody TypePolarity Type Rated Voltage (V)Capacitance (µF)Capacitance Tolerance (%)Tangent Of Loss Angle (Max.)Leakage Current (Max.) (μA)Operating Temperature Range (°C)Body Diameter (mm)Body Length (mm)Rated Ripple Current (Freq.) (Hz)Rated Ripple Current (mA)Rated Ripple Current (Unit)E.S.R.-1 (Frequency) (Hz)E.S.R.-1 (Max. Value) (mΩ)Endurance (h)Forming & Packaging FeatureAppearanceMinimum packaging quantity (piece)Weight (Typ.) (g)
Surface mount type (vertical mount style)
Polar
6.3
680
-20 to 20
0.26
42.8
-55 to 105
8
10.2
100000
600
mArms
100000
160
2000
Embossed carrier taping (reel packing)
Sheathless (metal case)
500
0.882
Surface mount type (vertical mount style)
Polar
10
10
-20 to 20
0.19
3
-55 to 105
4
5.8
100000
90
mArms
100000
1350
2000
Embossed carrier taping (reel packing)
Sheathless (metal case)
2000
0.141
Surface mount type (vertical mount style)
Polar
6.3
220
-20 to 20
0.26
13.8
-55 to 105
6.3
6.1
100000
240
mArms
100000
360
2000
Embossed carrier taping (reel packing)
Sheathless (metal case)
1000
0.353
Surface mount type (vertical mount style)
Polar
10
1000
-20 to 20
0.19
100
-55 to 105
10
10.2
100000
850
mArms
100000
80
2000
Embossed carrier taping (reel packing)
Sheathless (metal case)
500
1.289
Surface mount type (vertical mount style)
Polar
10
680
-20 to 20
0.19
68
-55 to 105
8
10.2
100000
600
mArms
100000
160
2000
Embossed carrier taping (reel packing)
Sheathless (metal case)
500
0.882
Surface mount type (vertical mount style)
Polar
6.3
150
-20 to 20
0.26
9.4
-55 to 105
5
5.8
100000
160
mArms
100000
700
2000
Embossed carrier taping (reel packing)
Sheathless (metal case)
1000
0.207
Surface mount type (vertical mount style)
Polar
6.3
10
-20 to 20
0.26
3
-55 to 105
4
5.8
100000
90
mArms
100000
1350
2000
Embossed carrier taping (reel packing)
Sheathless (metal case)
2000
0.141
Surface mount type (vertical mount style)
Polar
6.3
1500
-20 to 20
0.26
94.5
-55 to 105
10
10.2
100000
850
mArms
100000
80
2000
Embossed carrier taping (reel packing)
Sheathless (metal case)
500
1.289
Surface mount type (vertical mount style)
Polar
25
820
-20 to 20
0.14
205
-55 to 105
10
10.5
100000
850
mArms
100000
80
2000
Embossed carrier taping (reel packing)
Sheathless (metal case)
500
1.528
Surface mount type (vertical mount style)
Polar
16
220
-20 to 20
0.16
35.2
-55 to 105
6.3
8
100000
280
mArms
100000
340
2000
Embossed carrier taping (reel packing)
Sheathless (metal case)
900
0.478
