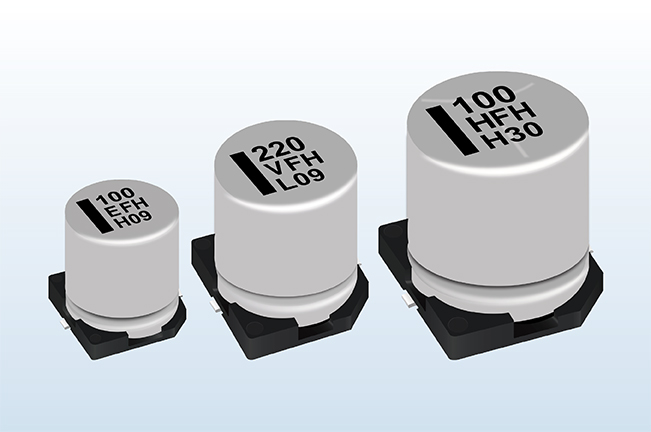

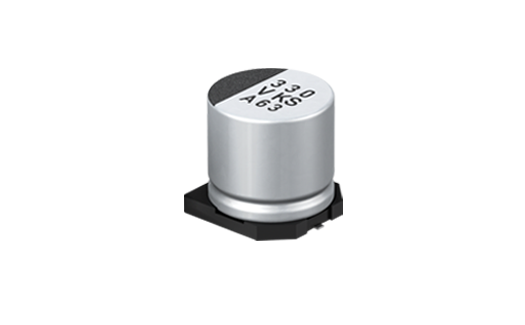

Aluminum Electrolytic Capacitors (Surface Mount Type)

As a worldwide leader in Capacitor products, Panasonic provides a vast selection of Surface Mount Type Aluminum Electrolytic Capacitors featuring high reliability, long life, low impedance and high ripple current. With 30 Series to choose from, there's a Panasonic SMT Lytic Capacitor for any application.

Panasonic has expanded ten SMT Aluminum Electrolytic Capacitor Series to include a wide variety of Anti-Vibration part numbers that withstand 30G! New SMT Anti-Vibration Capacitors are AEC-Q200 Compliant and can be designed in with confidence for automotive applications as well as other strenuous environments which ensures optimal quality and reliability.

Series table for lineup Aluminum Electrolytic Capacitors (Surface Mount Type)
Series/Type	Features	Operating Temperature Range (°C)	Endurance (h)	Rated Voltage Range (DC) (V)	Capacitance Range (µF)	AEC-Q200	RoHS (Compliance Certificate)	Reach (Report of Confirmation)
TCU-V (High temp. reflow)	･Miniaturization (20% to 40% less than TP series) ･125℃,3000h guarantee ･High temp. reflow	-40 to +125	3000	10 to 35	220 to 680	AEC-Q200 compliant	RoHS compliant (Please refer to the Related Information.)	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)

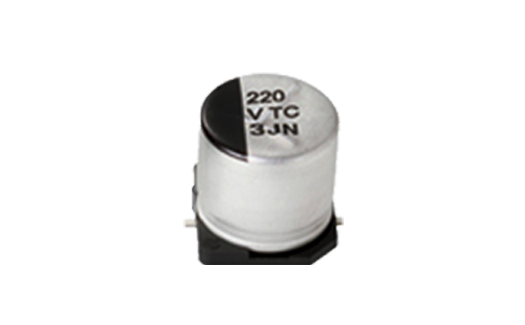

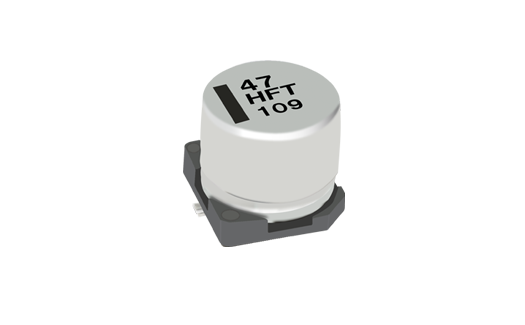

TC-V (High temp. reflow)	･High ripple current (TP-V comparison) ･125℃,2000-3000h guarantee ･High temp. reflow	-40 to +125	2000 to 3000	10 to 35	47 to 470	AEC-Q200 compliant	RoHS compliant (Please refer to the Related Information.)	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
TQ-V (High temp. reflow)	･Small size (TK-V comparison) ･125℃,2000h guarantee ･High temp. reflow	-40 to +125	2000	35	47 to 100	AEC-Q200 compliant	RoHS compliant (Please refer to the Related Information.)	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
TP-V (High temp. reflow)	･Low ESR (TK-V comparison) ･125℃,2000-3000h guarantee ･High temp. reflow	-40 to +125	3000 (D8:2000)	10 to 35	47 to 470	AEC-Q200 compliant	RoHS compliant (Please refer to the Related Information.)	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)

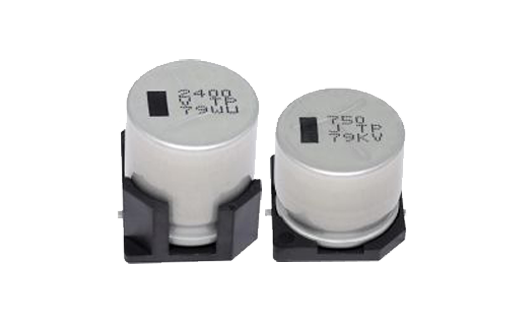

TP-V Medium-size(High temp. reflow)	･High ripple current (2 to 5 times as high as TK series) ･Low ESR (40 to 70 % lower than TK series) ･Large capacitance (Up to 80 % larger than TK series) ･125℃,3000-4000h guarantee ･High temp. reflow	-55 to +125	4000 (J16,K16: 3000)	25 to 80	390 to 3300	AEC-Q200 compliant	RoHS compliant (Please refer to the Related Information.)	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
TK-V	･Low ESR and long life (TG-V comparison) ･125℃,3000h guarantee	-40 to +125	3000	10 to 35	47 to 470	AEC-Q200 compliant	RoHS compliant (Please refer to the Related Information.)	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
TK-V Medium-size (High temp. reflow)	･Low ESR and long life (TG-V comparison) ･125℃,2000h guarantee ･High temp. reflow ･φ12.5～φ18	-40 to +125	2000	10 to 100	47 to 4700	AEC-Q200 compliant	RoHS compliant (Please refer to the Related Information.)	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
TG-V	･High temperature resistance ･125℃,1000-2000h guarantee	-40 to +125	1000 to 2000	10 to 100	10 to 4700	AEC-Q200 compliant	RoHS compliant (Please refer to the Related Information.)	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)

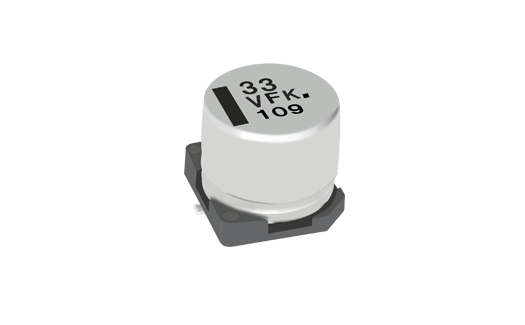

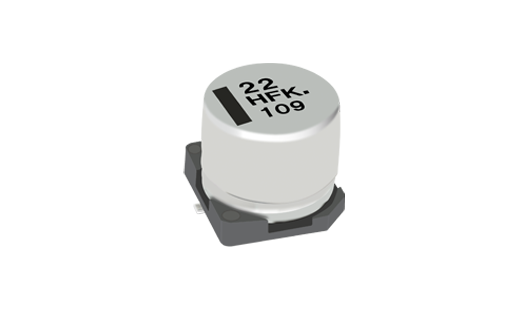

FKS-V (High temp. reflow)	･Small size (FK-V comparison) ･105℃,2000h guarantee ･High temp. reflow	-55 to +105	2000	6.3 to 50	10 to 1800	AEC-Q200 compliant	RoHS compliant (Please refer to the Related Information.)	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
FKS-V Medium-size(High temp. reflow)	･High capacitance : 20 to 80 % higher than FK series, large capacitance up to 13000 μF ･105℃,5000h guarantee ･High temp. reflow	-55 to +105	5000	6.3 to 35	750 to 13000	AEC-Q200 compliant	RoHS compliant (Please refer to the Related Information.)	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)

Series table for lineup Aluminum Electrolytic Capacitors (Surface Mount Type)
Series/Type	Features	Operating Temperature Range (°C)	Endurance (h)	Rated Voltage Range (DC) (V)	Capacitance Range (µF)	AEC-Q200	RoHS (Compliance Certificate)	Reach (Report of Confirmation)
TCU-V (High temp. reflow)	･Miniaturization (20% to 40% less than TP series) ･125℃,3000h guarantee ･High temp. reflow	-40 to +125	3000	10 to 35	220 to 680	AEC-Q200 compliant	RoHS compliant (Please refer to the Related Information.)	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
TC-V (High temp. reflow)	･High ripple current (TP-V comparison) ･125℃,2000-3000h guarantee ･High temp. reflow	-40 to +125	2000 to 3000	10 to 35	47 to 470	AEC-Q200 compliant	RoHS compliant (Please refer to the Related Information.)	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
TQ-V (High temp. reflow)	･Small size (TK-V comparison) ･125℃,2000h guarantee ･High temp. reflow	-40 to +125	2000	35	47 to 100	AEC-Q200 compliant	RoHS compliant (Please refer to the Related Information.)	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
TP-V (High temp. reflow)	･Low ESR (TK-V comparison) ･125℃,2000-3000h guarantee ･High temp. reflow	-40 to +125	3000 (D8:2000)	10 to 35	47 to 470	AEC-Q200 compliant	RoHS compliant (Please refer to the Related Information.)	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
TP-V Medium-size(High temp. reflow)	･High ripple current (2 to 5 times as high as TK series) ･Low ESR (40 to 70 % lower than TK series) ･Large capacitance (Up to 80 % larger than TK series) ･125℃,3000-4000h guarantee ･High temp. reflow	-55 to +125	4000 (J16,K16: 3000)	25 to 80	390 to 3300	AEC-Q200 compliant	RoHS compliant (Please refer to the Related Information.)	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
TK-V	･Low ESR and long life (TG-V comparison) ･125℃,3000h guarantee	-40 to +125	3000	10 to 35	47 to 470	AEC-Q200 compliant	RoHS compliant (Please refer to the Related Information.)	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
TK-V Medium-size (High temp. reflow)	･Low ESR and long life (TG-V comparison) ･125℃,2000h guarantee ･High temp. reflow ･φ12.5～φ18	-40 to +125	2000	10 to 100	47 to 4700	AEC-Q200 compliant	RoHS compliant (Please refer to the Related Information.)	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
TG-V	･High temperature resistance ･125℃,1000-2000h guarantee	-40 to +125	1000 to 2000	10 to 100	10 to 4700	AEC-Q200 compliant	RoHS compliant (Please refer to the Related Information.)	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
FKS-V (High temp. reflow)	･Small size (FK-V comparison) ･105℃,2000h guarantee ･High temp. reflow	-55 to +105	2000	6.3 to 50	10 to 1800	AEC-Q200 compliant	RoHS compliant (Please refer to the Related Information.)	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
FKS-V Medium-size(High temp. reflow)	･High capacitance : 20 to 80 % higher than FK series, large capacitance up to 13000 μF ･105℃,5000h guarantee ･High temp. reflow	-55 to +105	5000	6.3 to 35	750 to 13000	AEC-Q200 compliant	RoHS compliant (Please refer to the Related Information.)	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
