ECWF2104JAQ

Specifications

Specifications table for model ECWF2104JAQ
ItemPerformance characteristics
Body TypeResin dipped & radial leaded type
AC Or DCDC
Rated Voltage (V)250
Temperature Range (°C)-40 to 105 (85)
Capacitance (microF)0.1
Capacitance (µF)0.1
Capacitance Tolerance (%)-5 to 5
Dielectric MaterialMPP
KindMetallized PP Film Capacitor
Size Code (mm(inch))Not SMD
Size code (mm (inch))Not SMD
Body Length (mm)13
Width (mm)5
Height (mm)14.1
Lead (Terminal) Pitch (mm)10
Shape of Lead Wire Crimped lead wire type (Style D)
PackagingBulk (Bag packing)
Minimum Packaging Quantity 500
Weight (Typ.) (g)0.6
Safety Mechanisminstalled

Stock check

Model image for ECWF2104JAQ

ECWF2104JAQ

Resources

Filter by:
Showing 1 to 10 of 17 results
Results17
What's New

Stay up to date

View All
ECW-F(E) Series Boxed Polypropylene Film Capacitors
Jun 20, 2025

ECW-F(E) Series Boxed Polypropylene Film Capacitors

Capacitors

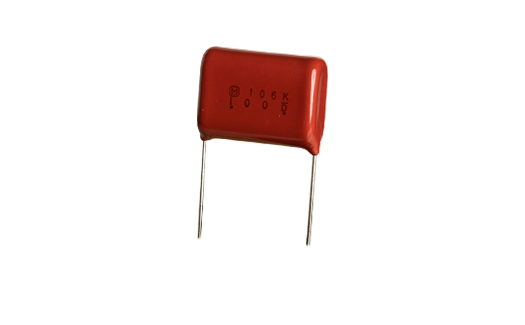

ECQ-E(F) Series (DC Rated) Film Capacitors
