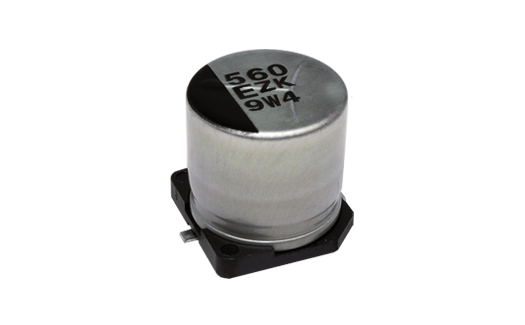

|Body Type||Surface mount type (vertical mount style)|
|Rated Voltage (V)||25|
|Capacitance Tolerance (%)||-20 to 20|
|Tangent Of Loss Angle (Max.)||0.14|
|Leakage Current (Max.) (μA)||14|
|Operating Temperature Range (°C)||-55 to 125|
|Body Diameter (mm)||5|
|Body Length (mm)||5.8|
|Rated Ripple Current (Freq.) (Hz)||100000|
|Rated Ripple Current (mA)||850|
|Rated Ripple Current (Unit)||ｍArms|
|E.S.R.-1 (Frequency) (Hz)||100000|
|E.S.R.-1 (Max. Value) (mΩ)||80|
|Forming & Packaging Feature||Embossed carrier taping (reel packing)|
|Appearance||Sheathless (metal case)|
|Minimum Packaging Quantity (pieces)||1000|
|Minimum packaging quantity (piece)||1000|
|Weight (Typ.) (g)||0.2|
