EEH-ZA Series (THT Tape And Box)

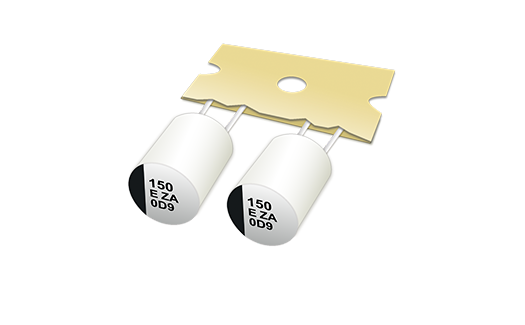

Panasonic’s EEH-ZA Series Polymer Hybrid Capacitors are now available in Leaded THT Tape and Box Ammo Pack options.

AEC-Q200 qualification for automotive and harsh environment applications ensures optimal quality and reliability. These parts are ideal where high temperature and high current capability are demanded by the application.

Features and Benefits:

• Specific Series Features and Benefits Apply

• Leaded

• Ammo Pack Taping For THT Type: Only Ø8 and Ø10 Products

• High Ripple and Low ESR

• AEC-Q200 Compliant

• RoHS and REACH Compliant

Part Number List

Results 17
Models table for series EEH-ZA Series (THT Tape And Box)
Part No.DatasheetBody TypePolarity Type Rated Voltage (V)Capacitance (µF)Capacitance Tolerance (%)Tangent Of Loss Angle (Max.)Leakage Current (Max.) (μA)Operating Temperature Range (°C)Body Diameter (mm)Body Length (mm)Lead (Terminal) Pitch (mm)Rated Ripple Current (Freq.) (Hz)Rated Ripple Current (mA)Rated Ripple Current (Unit)E.S.R.-1 (Frequency) (Hz)E.S.R.-1 (Max. Value) (mΩ)Endurance (h)Forming & Packaging FeatureAppearanceMinimum packaging quantity (piece)Weight (Typ.) (g)
Radial lead type
Polar
35
150
-20 to 20
0.12
52.5
-55 to 105
8
9.5
3.5
100000
2300
mArms
100000
27
10000
Lead taping (ammo packing), standard
Sheathless (metal case)
1000
0.976
Radial lead type
Polar
50
68
-20 to 20
0.1
34
-55 to 105
8
9.5
3.5
100000
1800
mArms
100000
30
10000
Lead taping (ammo packing), standard
Sheathless (metal case)
1000
0.976
Radial lead type
Polar
50
47
-20 to 20
0.1
23.5
-55 to 105
8
9.5
3.5
100000
1800
mArms
100000
30
10000
Lead taping (ammo packing), standard
Sheathless (metal case)
1000
0.976
Radial lead type
Polar
35
100
-20 to 20
0.12
35
-55 to 105
8
9.5
3.5
100000
2300
mArms
100000
27
10000
Lead taping (ammo packing), standard
Sheathless (metal case)
1000
0.976
Radial lead type
Polar
35
220
-20 to 20
0.12
77
-55 to 105
10
9.5
5
100000
2500
mArms
100000
20
10000
Lead taping (ammo packing), standard
Sheathless (metal case)
500
1.251
Radial lead type
Polar
80
22
-20 to 20
0.08
17.6
-55 to 105
8
9.5
3.5
100000
1550
mArms
100000
45
10000
Lead taping (ammo packing), standard
Sheathless (metal case)
1000
0.976
Radial lead type
Polar
50
100
-20 to 20
0.1
50
-55 to 105
10
9.5
5
100000
2000
mArms
100000
28
10000
Lead taping (ammo packing), standard
Sheathless (metal case)
500
1.251
Radial lead type
Polar
63
56
-20 to 20
0.08
35.2
-55 to 105
10
9.5
5
100000
1800
mArms
100000
30
10000
Lead taping (ammo packing), standard
Sheathless (metal case)
500
1.251
Radial lead type
Polar
25
220
-20 to 20
0.14
55
-55 to 105
8
9.5
3.5
100000
2300
mArms
100000
27
10000
Lead taping (ammo packing), standard
Sheathless (metal case)
1000
0.976
Radial lead type
Polar
25
330
-20 to 20
0.14
82.5
-55 to 105
10
9.5
5
100000
2500
mArms
100000
20
10000
Lead taping (ammo packing), standard
Sheathless (metal case)
500
1.251
