EEH-ZK(U) Series (THT Tape And Box)

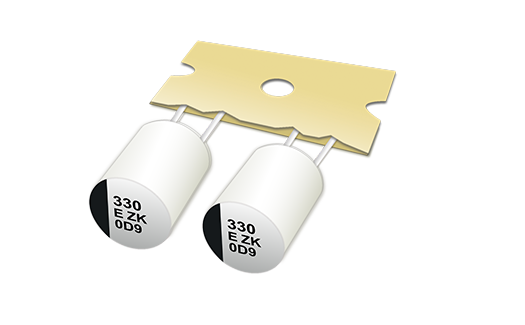

Panasonic’s EEH-ZK(U) Series Polymer Hybrid Capacitors are now available in Leaded THT Tape and Box Ammo Pack options.

AEC-Q200 qualification for automotive and harsh environment applications ensures optimal quality and reliability. These parts are ideal where high temperature and high current capability are demanded by the application.

Features And Benefits

  • Leaded
  • Ammo Pack Taping For THT Type: Only Ø8 and Ø10 Products
  • High Ripple and Low ESR
  • AEC-Q200 Compliant
  • RoHS and REACH Compliant
AEC-Q200 Logo

An AEC-Q200 Compliant Series

Panasonic components specified as AEC-Q200 Compliant are consistently designed into automotive systems.  However, today’s Design Engineers are specifying AEC-Q200 components to meet the high-quality standards of devices beyond automotive applications.

Parts that pass the AEC tests are qualified, high-quality components that can be used in critical environments.  Therefore, there should be no need to conduct other component level tests saving both time and expense.

Current AEC-Q200 Standard documents developed by the AEC Component Technical Committee are available on the AEC website. The AEC is an organization based in the U.S. that sets qualification standards for the supply of components in the automotive electronics industry.

If your next device requires components that meet the Automotive Electronics Council (AEC) requirements for components suitable for harsh automotive environments, think Panasonic!

Download a complete list of Panasonic AEC-Q200 Compliant Component Series and specify reliably!

Part Number List

Results 4
Models table for series EEH-ZK(U) Series (THT Tape And Box)
Part No.DatasheetBody TypePolarity Type Rated Voltage (V)Capacitance (µF)Capacitance Tolerance (%)Tangent Of Loss Angle (Max.)Leakage Current (Max.) (μA)Operating Temperature Range (°C)Body Diameter (mm)Body Length (mm)Lead (Terminal) Pitch (mm)Rated Ripple Current (Freq.) (Hz)Rated Ripple Current (mA)Rated Ripple Current (Unit)E.S.R.-1 (Frequency) (Hz)E.S.R.-1 (Max. Value) (mΩ)Endurance (h)Forming & Packaging FeatureAppearanceMinimum packaging quantity (piece)Weight (Typ.) (g)
Radial lead type
Polar
25
560
-20 to 20
0.14
140
-55 to 125
10
9.5
5
100000
2800
mArms
100000
20
4000
Lead taping (ammo packing), standard
Sheathless (metal case)
500
1.251
Radial lead type
Polar
35
220
-20 to 20
0.12
77
-55 to 125
8
9.5
3.5
100000
2000
mArms
100000
27
4000
Lead taping (ammo packing), standard
Sheathless (metal case)
1000
0.976
Radial lead type
Polar
25
330
-20 to 20
0.14
82.5
-55 to 125
8
9.5
3.5
100000
2000
mArms
100000
27
4000
Lead taping (ammo packing), standard
Sheathless (metal case)
1000
0.976
Radial lead type
Polar
35
390
-20 to 20
0.12
136.5
-55 to 125
10
9.5
5
100000
2800
mArms
100000
20
4000
Lead taping (ammo packing), standard
Sheathless (metal case)
500
1.251
