EEH-ZS Series (THT Tape And Box)

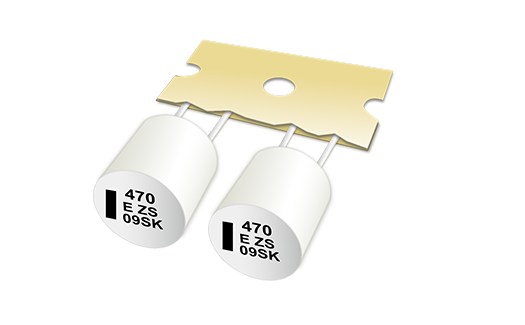

Panasonic’s EEH-ZS Series Polymer Hybrid Capacitors are now available in Leaded THT Tape and Box Ammo Pack options.

AEC-Q200 qualification for automotive and harsh environment applications ensures optimal quality and reliability. These parts are ideal where high temperature and high current capability are demanded by the application.

Features and Benefits:

• Specific Series Features and Benefits Apply

• Leaded

• Ammo Pack Taping For THT Type: Only Ø8 and Ø10 Products

• High Ripple and Low ESR

• AEC-Q200 Compliant

• RoHS and REACH Compliant

AEC-Q200 Logo

An AEC-Q200 Compliant Series

Panasonic components specified as AEC-Q200 Compliant are consistently designed into automotive systems.  However, today’s Design Engineers are specifying AEC-Q200 components to meet the high-quality standards of devices beyond automotive applications.

Parts that pass the AEC tests are qualified, high-quality components that can be used in critical environments.  Therefore, there should be no need to conduct other component level tests saving both time and expense.

Current AEC-Q200 Standard documents developed by the AEC Component Technical Committee are available on the AEC website. The AEC is an organization based in the U.S. that sets qualification standards for the supply of components in the automotive electronics industry.

If your next device requires components that meet the Automotive Electronics Council (AEC) requirements for components suitable for harsh automotive environments, think Panasonic!

Download a complete list of Panasonic AEC-Q200 Compliant Component Series and specify reliably!

AEC-Q200-Anti-Vibration-Caps_Caps_414x200

Design In Anti-Vibration Capacitors From Panasonic

Panasonic expands twelve proven, Surface Mount Aluminum Electrolytic Capacitor series to include AEC-Q200 Compliant Anti-Vibration part numbers able to withstand 30G! Suitable for harsh automotive and strenuous environments, select Anti-Vibration variant parts where high capacitance current capability is demanded by the application.

Part Number List

Results 8
Models table for series EEH-ZS Series (THT Tape And Box)
Part No.DatasheetBody TypePolarity Type Rated Voltage (V)Capacitance (µF)Capacitance Tolerance (%)Tangent Of Loss Angle (Max.)Leakage Current (Max.) (μA)Operating Temperature Range (°C)Body Diameter (mm)Body Length (mm)Lead (Terminal) Pitch (mm)Rated Ripple Current (Freq.) (Hz)Rated Ripple Current (mA)Rated Ripple Current (Unit)Rated ripple current-2(freq.) (Hz)Rated ripple current-2 (mA)Rated ripple current-2(unit)E.S.R.-1 (Frequency) (Hz)E.S.R.-1 (Max. Value) (mΩ)Endurance (h)Forming & Packaging FeatureAppearanceMinimum packaging quantity (piece)Weight (Typ.) (g)
Radial lead type
Polar
63
100
-20 to 20
0.08
63
-55 to 135
10
11.7
5
100000
3000
mArms at 125 ℃
100000
2100
mArms at 135 ℃
100000
19
4000
Lead taping (ammo packing), standard
Sheathless (metal case)
500
1.635
Radial lead type
Polar
50
220
-20 to 20
0.1
110
-55 to 135
10
15.7
5
100000
3700
mArms at 125 ℃
100000
2600
mArms at 135 ℃
100000
13
4000
Lead taping (ammo packing), standard
Sheathless (metal case)
500
2.147
Radial lead type
Polar
25
470
-20 to 20
0.14
117.5
-55 to 135
10
11.7
5
100000
3500
mArms at 125 ℃
100000
2500
mArms at 135 ℃
100000
14
4000
Lead taping (ammo packing), standard
Sheathless (metal case)
500
1.635
Radial lead type
Polar
25
560
-20 to 20
0.14
140
-55 to 135
10
15.7
5
100000
4000
mArms at 125 ℃
100000
2900
mArms at 135 ℃
100000
11
4000
Lead taping (ammo packing), standard
Sheathless (metal case)
500
2.147
Radial lead type
Polar
63
150
-20 to 20
0.08
94.5
-55 to 135
10
15.7
5
100000
3500
mArms at 125 ℃
100000
2400
mArms at 135 ℃
100000
15
4000
Lead taping (ammo packing), standard
Sheathless (metal case)
500
2.147
Radial lead type
Polar
50
150
-20 to 20
0.1
75
-55 to 135
10
11.7
5
100000
3200
mArms at 125 ℃
100000
2250
mArms at 135 ℃
100000
17
4000
Lead taping (ammo packing), standard
Sheathless (metal case)
500
1.635
Radial lead type
Polar
35
470
-20 to 20
0.12
164.5
-55 to 135
10
15.7
5
100000
4000
mArms at 125 ℃
100000
2900
mArms at 135 ℃
100000
11
4000
Lead taping (ammo packing), standard
Sheathless (metal case)
500
2.147
Radial lead type
Polar
35
330
-20 to 20
0.12
115.5
-55 to 135
10
11.7
5
100000
3500
mArms at 125 ℃
100000
2500
mArms at 135 ℃
100000
14
4000
Lead taping (ammo packing), standard
Sheathless (metal case)
500
1.635
