The EEH-ZS(U) Series (THT Tape And Box) Conductive Polymer Hybrid Aluminum Capacitors are capable of operating at high temperatures with conductive Polymer Capacitor performance and Aluminum Electrolytic Capacitor safety in a Through Hole package.

The EEH-ZS(U) Series Hybrid Capacitors are ideal where high temperature and high current capability are in demand by the application and a Through Hole, Tape And Box configuration for automatic insertion is also required. The EEH-ZS(U) Series Hybrid Capacitors offer an extra-large capacitance at 125°C, 4000 hours, and are AEC-Q200 qualified to ensure optimal quality and reliability.

Features And Benefits

  • Taping For Automatic Insertion
  • High Performance
  • Safe Operation
  • High Endurance Rating: 4000-Hour Life At 125°C
  • Large Capacitance
  • Nominal Capacitance Range
    • G12 Size Code: 120 µF to 680 µF
    • G16 Size Code: 180 µF to 1000 µF
  • Broad Operating Temperature: -55°C to +125°C
  • Operating Voltage Range: 25 to 63 VDC
  • AEC-Q200 Compliant
  • RoHS and REACH Compliant

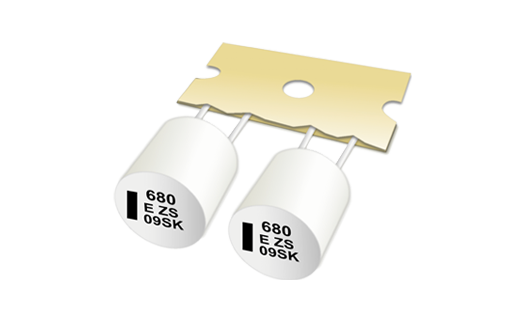

Series image for EEH-ZS(U) Series (THT Tape And Box)

EEH-ZS(U) Series (THT Tape And Box)

Part number list

Results 8
Models table for series EEH-ZS(U) Series (THT Tape And Box)
Part No.DatasheetBody TypePolarity Type Rated Voltage (V)Capacitance (µF)Capacitance Tolerance (%)Tangent Of Loss Angle (Max.)Leakage Current (Max.) (μA)Operating Temperature Range (°C)Body Diameter (mm)Body Length (mm)Lead (Terminal) Pitch (mm)Rated Ripple Current (Freq.) (Hz)Rated Ripple Current (mA)Rated Ripple Current (Unit)E.S.R.-1 (Frequency) (Hz)E.S.R.-1 (Max. Value) (mΩ)Endurance (h)Forming & Packaging FeatureAppearanceMinimum Packaging Quantity (piece)Weight (Typ.) (g)
Radial lead type
Polar
63
180
-20 to 20
0.08
113.4
-55 to 125
10
15.7
5
100000
3500
mArms
100000
15
4000
Lead taping (ammo packing), standard
Sheathless (metal case)
500
2.147
Radial lead type
Polar
50
270
-20 to 20
0.1
135
-55 to 125
10
15.7
5
100000
3700
mArms
100000
13
4000
Lead taping (ammo packing), standard
Sheathless (metal case)
500
2.147
Radial lead type
Polar
25
680
-20 to 20
0.14
170
-55 to 125
10
11.7
5
100000
3500
mArms
100000
14
4000
Lead taping (ammo packing), standard
Sheathless (metal case)
500
1.635
Radial lead type
Polar
63
120
-20 to 20
0.08
75.6
-55 to 125
10
11.7
5
100000
3000
mArms
100000
19
4000
Lead taping (ammo packing), standard
Sheathless (metal case)
500
1.635
Radial lead type
Polar
35
680
-20 to 20
0.12
238
-55 to 125
10
15.7
5
100000
4000
mArms
100000
11
4000
Lead taping (ammo packing), standard
Sheathless (metal case)
500
2.147
Radial lead type
Polar
35
470
-20 to 20
0.12
164.5
-55 to 125
10
11.7
5
100000
3500
mArms
100000
14
4000
Lead taping (ammo packing), standard
Sheathless (metal case)
500
1.635
Radial lead type
Polar
50
180
-20 to 20
0.1
90
-55 to 125
10
11.7
5
100000
3200
mArms
100000
17
4000
Lead taping (ammo packing), standard
Sheathless (metal case)
500
1.635
Radial lead type
Polar
25
1000
-20 to 20
0.14
250
-55 to 125
10
15.7
5
100000
4000
mArms
100000
11
4000
Lead taping (ammo packing), standard
Sheathless (metal case)
500
2.147
AEC-Q200 Selection Guide
An AEC-Q200 Compliant Series

Panasonic components specified as AEC-Q200 Compliant are consistently designed into automotive systems.  However, today’s Design Engineers are specifying AEC-Q200 components to meet the high-quality standards of devices beyond automotive applications.

Parts that pass the AEC tests are qualified, high-quality components that can be used in critical environments.  Therefore, there should be no need to conduct other component level tests saving both time and expense.

Current AEC-Q200 Standard documents developed by the AEC Component Technical Committee are available on the AEC website. The AEC is an organization based in the U.S. that sets qualification standards for the supply of components in the automotive electronics industry.

If your next device requires components that meet the Automotive Electronics Council (AEC) requirements for components suitable for harsh automotive environments, think Panasonic!

Download a complete list of Panasonic AEC-Q200 Compliant Component Series and specify reliably!
