High Frequency 5G Connectors
Panasonic's High Frequency 5G Connectors offer good SI/EMI/EMS characteristics for high-frequency applications and feature our industry-leading Tough Contact construction that achieves high contact reliability and retention force. Tough against shock impact by misalignment, the fully-shielded structure in both socket and header significantly improves EMI characteristics necessary for RF applications such as 5G.
High Frequency 5G Connectors
Panasonic's High Frequency 5G Connectors feature robust SI/EMI/EMS characteristics and Tough Contact construction for high contact reliability, essential for RF applications like 5G. Their fully-shielded structure in both socket and header enhances EMI performance.
Series comparison (2)
Specification search results
Resources
Product Overview
Specifications
- Terminal Pitch: 0.35mm
- Mated Height: 0.6mm
- Frequency: ~15GHz
- Number of Pins: 10

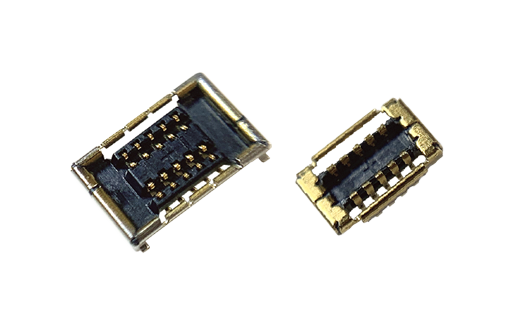

Part Numbers

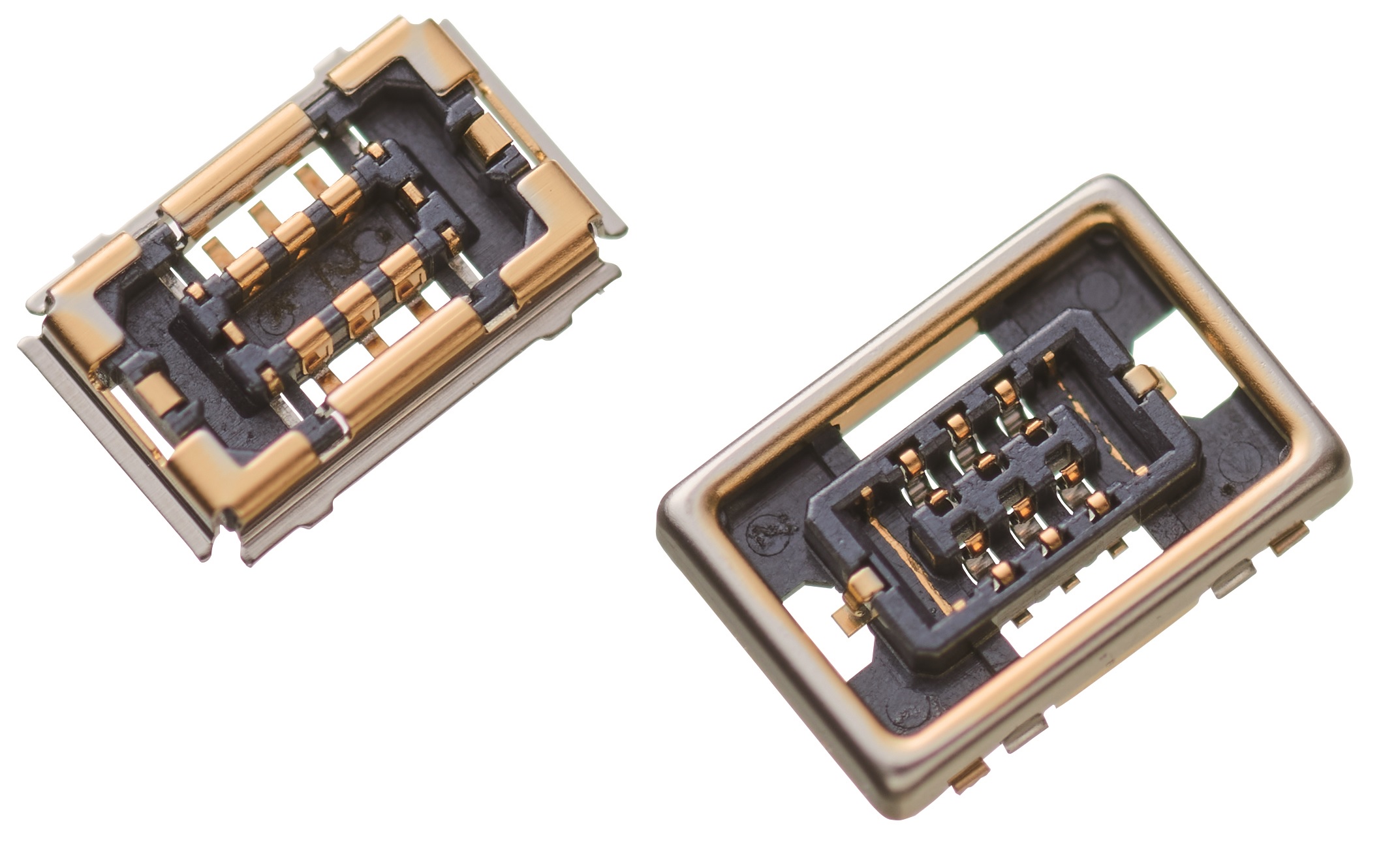

- Socket (10 Pins): AXG3A1012
- Header (10 Pins): AXG4A1012
Features
- Good SI/EMI/EMS characteristics with high-frequency application
- Tough Contact structure achieves high contact reliability and high retention force
- With Fully-shielded structure, tough against shock impact by misalignment motion or dropping
1. Good SI/EMI/EMS Characteristics with High Frequency Applications
Fully-Shielded Structure
Transmission Characteristics & Pin Layout
E-Field Strength
2. TOUGH CONTACT Structure Achieves High Contact Reliability & Retention Force
-
High Removal Force with Lock Structure
-
High-Reliability TOUGH CONTACT with "Clip Contact"
3. Fully-Shielded Structure: Tough Against Shock Impact by Misalignment or Dropping
The Molded Metal Shield Prevents the Flange Part Breakage
Application
Connection Between Millimeter-wave Module (Main Board)
Smart Phone/Tablet/Laptop/Router
