Ultra-low Loss, Highly Heat Resistant Circuit Board Materials.

Laminate R-5795(U)/ Prepreg R-5690(U) Laminate R-5795(N)/ Prepreg R-5690(N)

Designed for high-speed communication network equipment such as routers and switches, MEGTRON 8 multi-layer circuit board material features the industry's lowest transmission loss. This contributes to larger capacity and higher-speed data communication and may reduce power consumption because of the lower transmission loss.

The MEGTRON 8 family supports 800GbE used for next-generation high-speed communication technology and offers about a 30% improvement in transmission loss compared to MEGTRON 7.

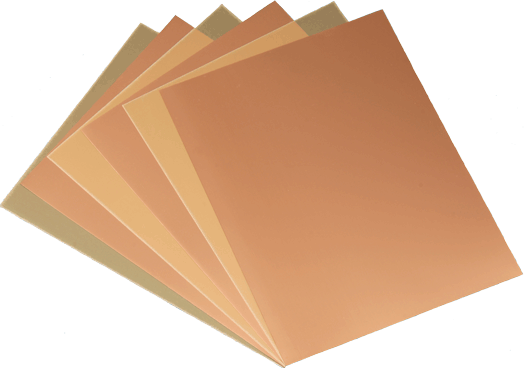

Series image for MEGTRON 8

MEGTRON 8

Part number list

Results 2
Models table for series MEGTRON 8
Part No.DatasheetTg (DMA) (°C) Td (Thermal Decomposition) (°C) T288 (With Cu) (min)CTE-X, CTE-Y CTE α2 Z-axis: Test Method IPC-TM-650 2.4.24; Condition A (ppm/℃)Dk at 14GHzDf at 14 GHzWater Absorption (%)Peel Strength (1 Oz. Cu) (kN/m)Flammability (UL-94)
220
370
> 120
17~20
17~20
270
3.1
0.0016
0.06
0.7
94V-o
220
370
> 120
17 - 20
17-20
270
3.1
0.0012
0.06
0.7
94V-0
