BEYOLEX™ Printed Electronics Substrate Series

Panasonic BEYOLEX™ Film is a Novel Polymer Substrate Designed for Flexible, Stretchable, Conformable, and Pliable Printed Electronics Applications

This unique material is based on a proprietary, thermoset, non-silicone polymer system which provides outstanding performance.

Available in 8" x 12" sheets (210 mm x 300 mm) as well as custom sheets and rolls on request.

  • Good Elongation
  • Ultra-Low Hysteresis
  • High-Temperature Resistance
  • High Environmental Stability
  • Compatible with a Wide Variety of Functional Inks
  • Sensors
  • Health and Wellness
  • Automotive
  • Aerospace
  • Structural Electronics

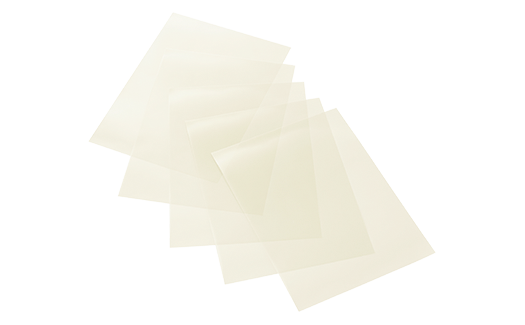

Series image for BEYOLEX™ Printed Electronics Substrate Series

BEYOLEX™ Printed Electronics Substrate Series

Part number list

Results 1
Models table for series BEYOLEX™ Printed Electronics Substrate Series
Part No.DatasheetElongation (%)Modulus @ 50% strain (MPa)HysteresisHeat ResistanceBreakdown Voltage (KV/mm)Dielectric Constant (Dk) @ 10Ghz; Test Method IPC-TM-650; Condition C-24/23/50Df at 10 GHzDk at 2 GHzDf at 2 GHzTransparency (%)Stretch Cycle (Cycles)
MUAS13111AA
> 200
< 2.5
< 0.1%
302°C
98
2.8
0.052
3.3
0.073
> 90
> 10000

AS SEEN AT CES 2023

PANASONIC CES TECH TALK: BEYOND FLEXIBLE PANASONIC SOFT CIRCUIT MATERIALS

Panasonic researchers have invented a novel class of circuit materials designed to enable new and more pliable electronic devices for health care, wearables, sensors, robotics, automotive, aerospace, and other applications.
