Specifications

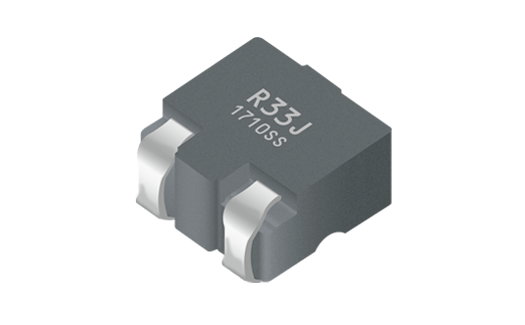

Specifications table for model ETQ-PAMR33JFW
ItemPerformance characteristics
Size [L×W] (mm)17.2×15.6
Height (mm)10.5
Inductance (μH)0.33
DC Resistance [Typ.] (at 20℃) (mΩ)0.42
DC Resistance [Max.] (at 20℃) (mΩ)0.48
Rated Current [Typ.] (ΔT=40K, FR4, t=1.6 mm, Four-layer PWB) (A)73
Rated Current [Typ.] (ΔT=40K, High heat dissipation PWB) (A)83
Rated Current [Typ.] (ΔL=–30%) (A)103
Weight (Typ.) (g)14.2
AEC-Q200 compliantAEC-Q200 compliant
