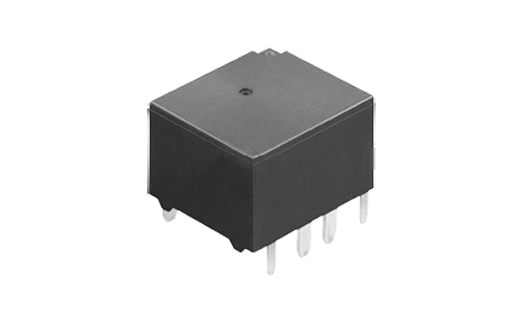

TM Series Relays

Part number list

Results 3

Models table for series TM Series Relays
Part No.	Coil Resistance (at 20oC)	Heat Resistance of Types	Contact Arrangement	Contact Type	Protective Construction	Terminal Type	Operating Function	Rated Coil Voltage	Operate (Set) Voltage (at20°C) (Initial)	Release (Reset) voltage (at20°C) (Initial)	Rated Operating Current [±10%] (at 20°C)	Coil Resistance (At 20oC)	Rated Operating Power (at 20°C)	Usable Voltage Range	Contact Resistance (Initial)	Contact Material	Nominal Switching Capacity (Resistive Load)	Contact Data: Max. Carrying Current	Min. Switching Load (Resistive)	Insulation Resistance (Min. MΩ)(Initial)	Dielectric Strength (Between Open Contacts) (Initial)	Dielectric Strength (Between Contacts and Coil) (Initial)	Operate (Set) Time (At Rated Coil Voltage) (At 20oC) (Initial)	Release (Reset) Time (at Rated Coil Voltage) (at 20°C) (Initial)	Shock Resistance: Functional	Shock Resistance: Destructive	Vibration Resistance: Functional	Vibration Resistance: Destructive	Expected Life: Mechanical Life	Expected Life: Electrical	Conditions	Weight (Typ.)	Inner Carton (Pieces)	Outer Carton (Pieces)
ACTM1CH8	400 Ω	High heat-resistant type	1 Form A	Standard type (Ag alloy / Cu clad)	Sealed	PC board type	Single side stable	12V DC	Max. 7.0 V DC	Min. 0.5 V DC	30 mA	400 Ω	360 mW	10 to 16V DC	Max. 50m&Omega (N.O. side: typ. 1.5mΩ) (By voltage drop 1A 6V DC)	Ag alloy	35A 14V DC	40A/ 1 hour (Coil applied voltage 12V DC at 20°C)	1A 14V DC (at 20°C)	Min. 100 MΩ (at 500V DC, Measurement at same location as [Dielectric strength] section.)	500 Vrms for 1min (Detection current: 10mA)	500 Vrms for 1min (Detection current: 10mA)	Max. 10ms (without contact bounce time)	Max. 10ms (without contact bounce time) (without protective element)	Min. 100 m/s² (Half-wave pulse of sine wave: 11 ms; detection time: 10µs)	Min. 1,000 m/s² (Half-wave pulse of sine wave: 6ms, number of shocks for each direction: X, Y and Z direction: 3 times)	10 to 100 Hz, Min. 44.1m/s² (Detection time: 10µs)	10 to 500 Hz, Min. 44.1 m/s² Time of vibration for each direction; X, Y direction: 2 hours, Z direction: 4 hours	Min. 10⁷ (at 120 times/min)	[Resistive load] Min. 10⁵ at rated switching capacity Operating frequency: 1s ON, 9s OFF	Ambient temperature: –40 to +110°C Humidity: 2 to 85% RH (Avoid icing and condensation)	Approx. 11.6g	50	2,000
ACTM2CH4	320 Ω	High heat-resistant type	1 Form C	Standard type (Ag alloy / Cu clad)	Sealed	PC board type	Single side stable	12V DC	Max. 7.0 V DC	Min. 0.5 V DC	37.5 mA	320 Ω	450 mW	10 to 16V DC	Max. 50m&Omega (N.O. side: typ. 1.5mΩ, N.C. side: typ. 3mΩ) (By voltage drop 1A 6V DC)	Ag alloy	N.O. side: 35A 14V DC, N.C. side: 15A 14V DC	40A/ 1 hour (Coil applied voltage 12V DC at 20°C)	1A 14V DC (at 20°C)	Min. 100 MΩ (at 500V DC, Measurement at same location as [Dielectric strength] section.)	500 Vrms for 1min (Detection current: 10mA)	500 Vrms for 1min (Detection current: 10mA)	Max. 10ms (without contact bounce time)	Max. 10ms (without contact bounce time) (without protective element)	Min. 100 m/s² (Half-wave pulse of sine wave: 11 ms; detection time: 10µs)	Min. 1,000 m/s² (Half-wave pulse of sine wave: 6ms, number of shocks for each direction: X, Y and Z direction: 3 times)	10 to 100 Hz, Min. 44.1m/s² (Detection time: 10µs)	10 to 500 Hz, Min. 44.1 m/s² Time of vibration for each direction; X, Y direction: 2 hours, Z direction: 4 hours	Min. 10⁷ (at 120 times/min)	[Resistive load] Min. 10⁵ at rated switching capacity Operating frequency: 1s ON, 9s OFF	Ambient temperature: –40 to +110°C Humidity: 2 to 85% RH (Avoid icing and condensation)	Approx. 11.6g	50	2,000
ACTM1CH4	320 Ω	High heat-resistant type	1 Form A	Standard type (Ag alloy / Cu clad)	Sealed	PC board type	Single side stable	12V DC	Max. 7.0 V DC	Min. 0.5 V DC	37.5 mA	320 Ω	450 mW	10 to 16V DC	Max. 50m&Omega (N.O. side: typ. 1.5mΩ) (By voltage drop 1A 6V DC)	Ag alloy	35A 14V DC	40A/ 1 hour (Coil applied voltage 12V DC at 20°C)	1A 14V DC (at 20°C)	Min. 100 MΩ (at 500V DC, Measurement at same location as [Dielectric strength] section.)	500 Vrms for 1min (Detection current: 10mA)	500 Vrms for 1min (Detection current: 10mA)	Max. 10ms (without contact bounce time)	Max. 10ms (without contact bounce time) (without protective element)	Min. 100 m/s² (Half-wave pulse of sine wave: 11 ms; detection time: 10µs)	Min. 1,000 m/s² (Half-wave pulse of sine wave: 6ms, number of shocks for each direction: X, Y and Z direction: 3 times)	10 to 100 Hz, Min. 44.1m/s² (Detection time: 10µs)	10 to 500 Hz, Min. 44.1 m/s² Time of vibration for each direction; X, Y direction: 2 hours, Z direction: 4 hours	Min. 10⁷ (at 120 times/min)	[Resistive load] Min. 10⁵ at rated switching capacity Operating frequency: 1s ON, 9s OFF	Ambient temperature: –40 to +110°C Humidity: 2 to 85% RH (Avoid icing and condensation)	Approx. 11.6g	50	2,000

Models table for series TM Series Relays
Part No.	Coil Resistance (at 20oC)	Heat Resistance of Types	Contact Arrangement	Contact Type	Protective Construction	Terminal Type	Operating Function	Rated Coil Voltage	Operate (Set) Voltage (at20°C) (Initial)	Release (Reset) voltage (at20°C) (Initial)	Rated Operating Current [±10%] (at 20°C)	Coil Resistance (At 20oC)	Rated Operating Power (at 20°C)	Usable Voltage Range	Contact Resistance (Initial)	Contact Material	Nominal Switching Capacity (Resistive Load)	Contact Data: Max. Carrying Current	Min. Switching Load (Resistive)	Insulation Resistance (Min. MΩ)(Initial)	Dielectric Strength (Between Open Contacts) (Initial)	Dielectric Strength (Between Contacts and Coil) (Initial)	Operate (Set) Time (At Rated Coil Voltage) (At 20oC) (Initial)	Release (Reset) Time (at Rated Coil Voltage) (at 20°C) (Initial)	Shock Resistance: Functional	Shock Resistance: Destructive	Vibration Resistance: Functional	Vibration Resistance: Destructive	Expected Life: Mechanical Life	Expected Life: Electrical	Conditions	Weight (Typ.)	Inner Carton (Pieces)	Outer Carton (Pieces)
ACTM1CH8	400 Ω	High heat-resistant type	1 Form A	Standard type (Ag alloy / Cu clad)	Sealed	PC board type	Single side stable	12V DC	Max. 7.0 V DC	Min. 0.5 V DC	30 mA	400 Ω	360 mW	10 to 16V DC	Max. 50m&Omega (N.O. side: typ. 1.5mΩ) (By voltage drop 1A 6V DC)	Ag alloy	35A 14V DC	40A/ 1 hour (Coil applied voltage 12V DC at 20°C)	1A 14V DC (at 20°C)	Min. 100 MΩ (at 500V DC, Measurement at same location as [Dielectric strength] section.)	500 Vrms for 1min (Detection current: 10mA)	500 Vrms for 1min (Detection current: 10mA)	Max. 10ms (without contact bounce time)	Max. 10ms (without contact bounce time) (without protective element)	Min. 100 m/s² (Half-wave pulse of sine wave: 11 ms; detection time: 10µs)	Min. 1,000 m/s² (Half-wave pulse of sine wave: 6ms, number of shocks for each direction: X, Y and Z direction: 3 times)	10 to 100 Hz, Min. 44.1m/s² (Detection time: 10µs)	10 to 500 Hz, Min. 44.1 m/s² Time of vibration for each direction; X, Y direction: 2 hours, Z direction: 4 hours	Min. 10⁷ (at 120 times/min)	[Resistive load] Min. 10⁵ at rated switching capacity Operating frequency: 1s ON, 9s OFF	Ambient temperature: –40 to +110°C Humidity: 2 to 85% RH (Avoid icing and condensation)	Approx. 11.6g	50	2,000
ACTM2CH4	320 Ω	High heat-resistant type	1 Form C	Standard type (Ag alloy / Cu clad)	Sealed	PC board type	Single side stable	12V DC	Max. 7.0 V DC	Min. 0.5 V DC	37.5 mA	320 Ω	450 mW	10 to 16V DC	Max. 50m&Omega (N.O. side: typ. 1.5mΩ, N.C. side: typ. 3mΩ) (By voltage drop 1A 6V DC)	Ag alloy	N.O. side: 35A 14V DC, N.C. side: 15A 14V DC	40A/ 1 hour (Coil applied voltage 12V DC at 20°C)	1A 14V DC (at 20°C)	Min. 100 MΩ (at 500V DC, Measurement at same location as [Dielectric strength] section.)	500 Vrms for 1min (Detection current: 10mA)	500 Vrms for 1min (Detection current: 10mA)	Max. 10ms (without contact bounce time)	Max. 10ms (without contact bounce time) (without protective element)	Min. 100 m/s² (Half-wave pulse of sine wave: 11 ms; detection time: 10µs)	Min. 1,000 m/s² (Half-wave pulse of sine wave: 6ms, number of shocks for each direction: X, Y and Z direction: 3 times)	10 to 100 Hz, Min. 44.1m/s² (Detection time: 10µs)	10 to 500 Hz, Min. 44.1 m/s² Time of vibration for each direction; X, Y direction: 2 hours, Z direction: 4 hours	Min. 10⁷ (at 120 times/min)	[Resistive load] Min. 10⁵ at rated switching capacity Operating frequency: 1s ON, 9s OFF	Ambient temperature: –40 to +110°C Humidity: 2 to 85% RH (Avoid icing and condensation)	Approx. 11.6g	50	2,000
ACTM1CH4	320 Ω	High heat-resistant type	1 Form A	Standard type (Ag alloy / Cu clad)	Sealed	PC board type	Single side stable	12V DC	Max. 7.0 V DC	Min. 0.5 V DC	37.5 mA	320 Ω	450 mW	10 to 16V DC	Max. 50m&Omega (N.O. side: typ. 1.5mΩ) (By voltage drop 1A 6V DC)	Ag alloy	35A 14V DC	40A/ 1 hour (Coil applied voltage 12V DC at 20°C)	1A 14V DC (at 20°C)	Min. 100 MΩ (at 500V DC, Measurement at same location as [Dielectric strength] section.)	500 Vrms for 1min (Detection current: 10mA)	500 Vrms for 1min (Detection current: 10mA)	Max. 10ms (without contact bounce time)	Max. 10ms (without contact bounce time) (without protective element)	Min. 100 m/s² (Half-wave pulse of sine wave: 11 ms; detection time: 10µs)	Min. 1,000 m/s² (Half-wave pulse of sine wave: 6ms, number of shocks for each direction: X, Y and Z direction: 3 times)	10 to 100 Hz, Min. 44.1m/s² (Detection time: 10µs)	10 to 500 Hz, Min. 44.1 m/s² Time of vibration for each direction; X, Y direction: 2 hours, Z direction: 4 hours	Min. 10⁷ (at 120 times/min)	[Resistive load] Min. 10⁵ at rated switching capacity Operating frequency: 1s ON, 9s OFF	Ambient temperature: –40 to +110°C Humidity: 2 to 85% RH (Avoid icing and condensation)	Approx. 11.6g	50	2,000
