LD-P Series Relays

Panasonic’s LD-P Series General Power Relays are characterized by excellent heat resistance and tracking performance, offering Class F coil insulation and tube packaging as standard part numbers. This LD-P Series features a compact size of 7.2 mm (W) X 20.5 mm (L) X 15.3 mm (H), enabling space and cost savings. The LD-P Series Relays with Class F coil insulation are rated for use in higher ambient temperature environments, which is ideal for industrial and HVAC applications.

Features and Benefits:

Rated Switching Capacity: 5 A 277 V. AC
Ambient Temperature: -40° to +85°C
Excellent Heat Resistance and Tracking Performance: EN60695 (GWT2-11, GWFI2-12, GWIT2-13) Data Available (for VDE) (Please Consult Panasonic for Details)
Compact Size: 7.2 mm (W) X 20.5 mm (L) X 15.3 mm (H)
Class F Coil Available
Contact Ratings At 105°C is Approved by UL for Class F Coil Insulation
Tube Packaging Available
Compatible with Automatic Insertion Assembly
RoHS Compliant

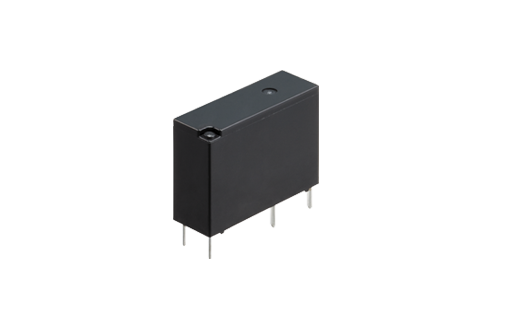

Series image for LD-P Series Relays

LD-P Series Relays

Part number list

Results 24

Models table for series LD-P Series Relays
Part No.	Datasheet	Rated Coil Voltage	Contact Arrangement	Protective Construction	Operating Function	Terminal Type	Relay Shape	Coil Insulation Class	Packing Quantity; Inner Carton (Pcs.)	Packing Quantity; Outer Carton (Pcs.)	Operate Voltage (@20oC)	Release Voltage (at20°C)	Rated Operating Current [±10%] (at 20°C)	Resistance [±10%] (at 20°C)	Rated Operating Power	Max. Allowable Voltage (at 20°C 68°F)	Contact Shape	Contact Resistance (Initial)	Contact Material	Contact Rating (Resistive Load)	Max. Switching Power (Resistive Load)	Max. Switching Voltage	Max. Switching Current	Min. Switching Load (Reference Value)	Insulation Resistance (Initial)	Dielectric Strength (Initial): Between Open Contacts	Dielectric Strength (Initial): Between Contact and Coil	Surge Withstand Voltage (Initial): Between Contact and Coil	Operate Time (Initial) (At 20oC)	Release Time (Initial) (at 20°C)	Hock Resistance (Functional)	Hock Resistance (Destructive)	Vibration Resistance (Functional)	Vibration Resistance (Destructive)	Mechanical Life	Conditions	Weight (Typ.)	Resistive Load	Packing Quantity
ALDP106W		6 V DC	1 Form A	Sealed	Single side stable	PC board terminal	Slim type	Class E insulation	100	500	Max. 75% V of rated coil voltage (Initial)	Min. 5% V of rated coil voltage (Initial)	33.3 mA	180 Ω	200 mW	180% V of rated coil voltage	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgNi type	5 A 277 V AC, 3 A 30 V DC	1,385 VA, 90 W	277 V AC, 30 V DC	5 A (AC), 3 A (DC)	100 mA 5 V DC	Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength.)	750 Vrms for 1 min (detection current: 10 mA)	4,000 Vrms for 1 min (detection current: 10 mA)	10,000 V	Max. 10 ms at rated coil voltage (without bounce)	Max. 10 ms at rated coil voltage (without bounce, with diode)	300 m/s² (half-sine shock pulse: 11 ms, detection time: 10 μs)	1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 μs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 5x10⁶ ope. (switching frequency: at 180 times/min)	Ambient temperature: -40 to +85℃ Humidity: 5 to 85% RH (Avoid icing and condensation)	Approx. 4 g	[at 20℃, switching frequency: 20 times/min] Min. 200x10³ ope. 5 A 125 V AC Min. 100x10³ ope. 5 A 250 V AC Min. 100x10³ ope. 3 A 30 V DC	Carton
ALDP118W		18 V DC	1 Form A	Sealed	Single side stable	PC board terminal	Slim type	Class E insulation	100	500	Max. 75% V of rated coil voltage (Initial)	Min. 5% V of rated coil voltage (Initial)	11.1 mA	1,620 Ω	200 mW	180% V of rated coil voltage	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgNi type	5 A 277 V AC, 3 A 30 V DC	1,385 VA, 90 W	277 V AC, 30 V DC	5 A (AC), 3 A (DC)	100 mA 5 V DC	Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength.)	750 Vrms for 1 min (detection current: 10 mA)	4,000 Vrms for 1 min (detection current: 10 mA)	10,000 V	Max. 10 ms at rated coil voltage (without bounce)	Max. 10 ms at rated coil voltage (without bounce, with diode)	300 m/s² (half-sine shock pulse: 11 ms, detection time: 10 μs)	1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 μs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 5x10⁶ ope. (switching frequency: at 180 times/min)	Ambient temperature: -40 to +85℃ Humidity: 5 to 85% RH (Avoid icing and condensation)	Approx. 4 g	[at 20℃, switching frequency: 20 times/min] Min. 200x10³ ope. 5 A 125 V AC Min. 100x10³ ope. 5 A 250 V AC Min. 100x10³ ope. 3 A 30 V DC	Carton
ALDP105		5 V DC	1 Form A	Sealed	Single side stable	PC board terminal	Slim type	Class E insulation	50	1,000	Max. 75% V of rated coil voltage (Initial)	Min. 5% V of rated coil voltage (Initial)	40.0 mA	125 Ω	200 mW	180% V of rated coil voltage	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgNi type	5 A 277 V AC, 3 A 30 V DC	1,385 VA, 90 W	277 V AC, 30 V DC	5 A (AC), 3 A (DC)	100 mA 5 V DC	Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength.)	750 Vrms for 1 min (detection current: 10 mA)	4,000 Vrms for 1 min (detection current: 10 mA)	10,000 V	Max. 10 ms at rated coil voltage (without bounce)	Max. 10 ms at rated coil voltage (without bounce, with diode)	300 m/s² (half-sine shock pulse: 11 ms, detection time: 10 μs)	1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 μs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 5x10⁶ ope. (switching frequency: at 180 times/min)	Ambient temperature: -40 to +85℃ Humidity: 5 to 85% RH (Avoid icing and condensation)	Approx. 4 g	[at 20℃, switching frequency: 20 times/min] Min. 200x10³ ope. 5 A 125 V AC Min. 100x10³ ope. 5 A 250 V AC Min. 100x10³ ope. 3 A 30 V DC	Tube package
ALDP112		12 V DC	1 Form A	Sealed	Single side stable	PC board terminal	Slim type	Class E insulation	50	1,000	Max. 75% V of rated coil voltage (Initial)	Min. 5% V of rated coil voltage (Initial)	16.7 mA	720 Ω	200 mW	180% V of rated coil voltage	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgNi type	5 A 277 V AC, 3 A 30 V DC	1,385 VA, 90 W	277 V AC, 30 V DC	5 A (AC), 3 A (DC)	100 mA 5 V DC	Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength.)	750 Vrms for 1 min (detection current: 10 mA)	4,000 Vrms for 1 min (detection current: 10 mA)	10,000 V	Max. 10 ms at rated coil voltage (without bounce)	Max. 10 ms at rated coil voltage (without bounce, with diode)	300 m/s² (half-sine shock pulse: 11 ms, detection time: 10 μs)	1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 μs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 5x10⁶ ope. (switching frequency: at 180 times/min)	Ambient temperature: -40 to +85℃ Humidity: 5 to 85% RH (Avoid icing and condensation)	Approx. 4 g	[at 20℃, switching frequency: 20 times/min] Min. 200x10³ ope. 5 A 125 V AC Min. 100x10³ ope. 5 A 250 V AC Min. 100x10³ ope. 3 A 30 V DC	Tube package
ALDP106		6 V DC	1 Form A	Sealed	Single side stable	PC board terminal	Slim type	Class E insulation	50	1,000	Max. 75% V of rated coil voltage (Initial)	Min. 5% V of rated coil voltage (Initial)	33.3 mA	180 Ω	200 mW	180% V of rated coil voltage	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgNi type	5 A 277 V AC, 3 A 30 V DC	1,385 VA, 90 W	277 V AC, 30 V DC	5 A (AC), 3 A (DC)	100 mA 5 V DC	Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength.)	750 Vrms for 1 min (detection current: 10 mA)	4,000 Vrms for 1 min (detection current: 10 mA)	10,000 V	Max. 10 ms at rated coil voltage (without bounce)	Max. 10 ms at rated coil voltage (without bounce, with diode)	300 m/s² (half-sine shock pulse: 11 ms, detection time: 10 μs)	1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 μs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 5x10⁶ ope. (switching frequency: at 180 times/min)	Ambient temperature: -40 to +85℃ Humidity: 5 to 85% RH (Avoid icing and condensation)	Approx. 4 g	[at 20℃, switching frequency: 20 times/min] Min. 200x10³ ope. 5 A 125 V AC Min. 100x10³ ope. 5 A 250 V AC Min. 100x10³ ope. 3 A 30 V DC	Tube package
ALDP1F05W		5 V DC	1 Form A	Sealed	Single side stable	PC board terminal	Slim type	Class F insulation	100	500	Max. 75% V of rated coil voltage (Initial)	Min. 5% V of rated coil voltage (Initial)	40.0 mA	125 Ω	200 mW	180% V of rated coil voltage	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgNi type	5 A 277 V AC, 3 A 30 V DC	1,385 VA, 90 W	277 V AC, 30 V DC	5 A (AC), 3 A (DC)	100 mA 5 V DC	Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength.)	750 Vrms for 1 min (detection current: 10 mA)	4,000 Vrms for 1 min (detection current: 10 mA)	10,000 V	Max. 10 ms at rated coil voltage (without bounce)	Max. 10 ms at rated coil voltage (without bounce, with diode)	300 m/s² (half-sine shock pulse: 11 ms, detection time: 10 μs)	1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 μs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 5x10⁶ ope. (switching frequency: at 180 times/min)	Ambient temperature: -40 to +85℃ Humidity: 5 to 85% RH (Avoid icing and condensation)	Approx. 4 g	[at 20℃, switching frequency: 20 times/min] Min. 200x10³ ope. 5 A 125 V AC Min. 100x10³ ope. 5 A 250 V AC Min. 100x10³ ope. 3 A 30 V DC	Carton
ALDP124		24 V DC	1 Form A	Sealed	Single side stable	PC board terminal	Slim type	Class E insulation	50	1,000	Max. 75% V of rated coil voltage (Initial)	Min. 5% V of rated coil voltage (Initial)	8.3 mA	2,880 Ω	200 mW	180% V of rated coil voltage	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgNi type	5 A 277 V AC, 3 A 30 V DC	1,385 VA, 90 W	277 V AC, 30 V DC	5 A (AC), 3 A (DC)	100 mA 5 V DC	Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength.)	750 Vrms for 1 min (detection current: 10 mA)	4,000 Vrms for 1 min (detection current: 10 mA)	10,000 V	Max. 10 ms at rated coil voltage (without bounce)	Max. 10 ms at rated coil voltage (without bounce, with diode)	300 m/s² (half-sine shock pulse: 11 ms, detection time: 10 μs)	1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 μs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 5x10⁶ ope. (switching frequency: at 180 times/min)	Ambient temperature: -40 to +85℃ Humidity: 5 to 85% RH (Avoid icing and condensation)	Approx. 4 g	[at 20℃, switching frequency: 20 times/min] Min. 200x10³ ope. 5 A 125 V AC Min. 100x10³ ope. 5 A 250 V AC Min. 100x10³ ope. 3 A 30 V DC	Tube package
ALDP1F09W		9 V DC	1 Form A	Sealed	Single side stable	PC board terminal	Slim type	Class F insulation	100	500	Max. 75% V of rated coil voltage (Initial)	Min. 5% V of rated coil voltage (Initial)	22.2 mA	405 Ω	200 mW	180% V of rated coil voltage	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgNi type	5 A 277 V AC, 3 A 30 V DC	1,385 VA, 90 W	277 V AC, 30 V DC	5 A (AC), 3 A (DC)	100 mA 5 V DC	Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength.)	750 Vrms for 1 min (detection current: 10 mA)	4,000 Vrms for 1 min (detection current: 10 mA)	10,000 V	Max. 10 ms at rated coil voltage (without bounce)	Max. 10 ms at rated coil voltage (without bounce, with diode)	300 m/s² (half-sine shock pulse: 11 ms, detection time: 10 μs)	1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 μs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 5x10⁶ ope. (switching frequency: at 180 times/min)	Ambient temperature: -40 to +85℃ Humidity: 5 to 85% RH (Avoid icing and condensation)	Approx. 4 g	[at 20℃, switching frequency: 20 times/min] Min. 200x10³ ope. 5 A 125 V AC Min. 100x10³ ope. 5 A 250 V AC Min. 100x10³ ope. 3 A 30 V DC	Carton
ALDP1F18W		18 V DC	1 Form A	Sealed	Single side stable	PC board terminal	Slim type	Class F insulation	100	500	Max. 75% V of rated coil voltage (Initial)	Min. 5% V of rated coil voltage (Initial)	11.1 mA	1,620 Ω	200 mW	180% V of rated coil voltage	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgNi type	5 A 277 V AC, 3 A 30 V DC	1,385 VA, 90 W	277 V AC, 30 V DC	5 A (AC), 3 A (DC)	100 mA 5 V DC	Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength.)	750 Vrms for 1 min (detection current: 10 mA)	4,000 Vrms for 1 min (detection current: 10 mA)	10,000 V	Max. 10 ms at rated coil voltage (without bounce)	Max. 10 ms at rated coil voltage (without bounce, with diode)	300 m/s² (half-sine shock pulse: 11 ms, detection time: 10 μs)	1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 μs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 5x10⁶ ope. (switching frequency: at 180 times/min)	Ambient temperature: -40 to +85℃ Humidity: 5 to 85% RH (Avoid icing and condensation)	Approx. 4 g	[at 20℃, switching frequency: 20 times/min] Min. 200x10³ ope. 5 A 125 V AC Min. 100x10³ ope. 5 A 250 V AC Min. 100x10³ ope. 3 A 30 V DC	Carton
ALDP1F24W		24 V DC	1 Form A	Sealed	Single side stable	PC board terminal	Slim type	Class F insulation	100	500	Max. 75% V of rated coil voltage (Initial)	Min. 5% V of rated coil voltage (Initial)	8.3 mA	2,880 Ω	200 mW	180% V of rated coil voltage	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgNi type	5 A 277 V AC, 3 A 30 V DC	1,385 VA, 90 W	277 V AC, 30 V DC	5 A (AC), 3 A (DC)	100 mA 5 V DC	Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength.)	750 Vrms for 1 min (detection current: 10 mA)	4,000 Vrms for 1 min (detection current: 10 mA)	10,000 V	Max. 10 ms at rated coil voltage (without bounce)	Max. 10 ms at rated coil voltage (without bounce, with diode)	300 m/s² (half-sine shock pulse: 11 ms, detection time: 10 μs)	1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 μs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 5x10⁶ ope. (switching frequency: at 180 times/min)	Ambient temperature: -40 to +85℃ Humidity: 5 to 85% RH (Avoid icing and condensation)	Approx. 4 g	[at 20℃, switching frequency: 20 times/min] Min. 200x10³ ope. 5 A 125 V AC Min. 100x10³ ope. 5 A 250 V AC Min. 100x10³ ope. 3 A 30 V DC	Carton

Models table for series LD-P Series Relays
Part No.	Datasheet	Rated Coil Voltage	Contact Arrangement	Protective Construction	Operating Function	Terminal Type	Relay Shape	Coil Insulation Class	Packing Quantity; Inner Carton (Pcs.)	Packing Quantity; Outer Carton (Pcs.)	Operate Voltage (@20oC)	Release Voltage (at20°C)	Rated Operating Current [±10%] (at 20°C)	Resistance [±10%] (at 20°C)	Rated Operating Power	Max. Allowable Voltage (at 20°C 68°F)	Contact Shape	Contact Resistance (Initial)	Contact Material	Contact Rating (Resistive Load)	Max. Switching Power (Resistive Load)	Max. Switching Voltage	Max. Switching Current	Min. Switching Load (Reference Value)	Insulation Resistance (Initial)	Dielectric Strength (Initial): Between Open Contacts	Dielectric Strength (Initial): Between Contact and Coil	Surge Withstand Voltage (Initial): Between Contact and Coil	Operate Time (Initial) (At 20oC)	Release Time (Initial) (at 20°C)	Hock Resistance (Functional)	Hock Resistance (Destructive)	Vibration Resistance (Functional)	Vibration Resistance (Destructive)	Mechanical Life	Conditions	Weight (Typ.)	Resistive Load	Packing Quantity
ALDP106W		6 V DC	1 Form A	Sealed	Single side stable	PC board terminal	Slim type	Class E insulation	100	500	Max. 75% V of rated coil voltage (Initial)	Min. 5% V of rated coil voltage (Initial)	33.3 mA	180 Ω	200 mW	180% V of rated coil voltage	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgNi type	5 A 277 V AC, 3 A 30 V DC	1,385 VA, 90 W	277 V AC, 30 V DC	5 A (AC), 3 A (DC)	100 mA 5 V DC	Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength.)	750 Vrms for 1 min (detection current: 10 mA)	4,000 Vrms for 1 min (detection current: 10 mA)	10,000 V	Max. 10 ms at rated coil voltage (without bounce)	Max. 10 ms at rated coil voltage (without bounce, with diode)	300 m/s² (half-sine shock pulse: 11 ms, detection time: 10 μs)	1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 μs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 5x10⁶ ope. (switching frequency: at 180 times/min)	Ambient temperature: -40 to +85℃ Humidity: 5 to 85% RH (Avoid icing and condensation)	Approx. 4 g	[at 20℃, switching frequency: 20 times/min] Min. 200x10³ ope. 5 A 125 V AC Min. 100x10³ ope. 5 A 250 V AC Min. 100x10³ ope. 3 A 30 V DC	Carton
ALDP118W		18 V DC	1 Form A	Sealed	Single side stable	PC board terminal	Slim type	Class E insulation	100	500	Max. 75% V of rated coil voltage (Initial)	Min. 5% V of rated coil voltage (Initial)	11.1 mA	1,620 Ω	200 mW	180% V of rated coil voltage	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgNi type	5 A 277 V AC, 3 A 30 V DC	1,385 VA, 90 W	277 V AC, 30 V DC	5 A (AC), 3 A (DC)	100 mA 5 V DC	Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength.)	750 Vrms for 1 min (detection current: 10 mA)	4,000 Vrms for 1 min (detection current: 10 mA)	10,000 V	Max. 10 ms at rated coil voltage (without bounce)	Max. 10 ms at rated coil voltage (without bounce, with diode)	300 m/s² (half-sine shock pulse: 11 ms, detection time: 10 μs)	1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 μs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 5x10⁶ ope. (switching frequency: at 180 times/min)	Ambient temperature: -40 to +85℃ Humidity: 5 to 85% RH (Avoid icing and condensation)	Approx. 4 g	[at 20℃, switching frequency: 20 times/min] Min. 200x10³ ope. 5 A 125 V AC Min. 100x10³ ope. 5 A 250 V AC Min. 100x10³ ope. 3 A 30 V DC	Carton
ALDP105		5 V DC	1 Form A	Sealed	Single side stable	PC board terminal	Slim type	Class E insulation	50	1,000	Max. 75% V of rated coil voltage (Initial)	Min. 5% V of rated coil voltage (Initial)	40.0 mA	125 Ω	200 mW	180% V of rated coil voltage	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgNi type	5 A 277 V AC, 3 A 30 V DC	1,385 VA, 90 W	277 V AC, 30 V DC	5 A (AC), 3 A (DC)	100 mA 5 V DC	Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength.)	750 Vrms for 1 min (detection current: 10 mA)	4,000 Vrms for 1 min (detection current: 10 mA)	10,000 V	Max. 10 ms at rated coil voltage (without bounce)	Max. 10 ms at rated coil voltage (without bounce, with diode)	300 m/s² (half-sine shock pulse: 11 ms, detection time: 10 μs)	1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 μs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 5x10⁶ ope. (switching frequency: at 180 times/min)	Ambient temperature: -40 to +85℃ Humidity: 5 to 85% RH (Avoid icing and condensation)	Approx. 4 g	[at 20℃, switching frequency: 20 times/min] Min. 200x10³ ope. 5 A 125 V AC Min. 100x10³ ope. 5 A 250 V AC Min. 100x10³ ope. 3 A 30 V DC	Tube package
ALDP112		12 V DC	1 Form A	Sealed	Single side stable	PC board terminal	Slim type	Class E insulation	50	1,000	Max. 75% V of rated coil voltage (Initial)	Min. 5% V of rated coil voltage (Initial)	16.7 mA	720 Ω	200 mW	180% V of rated coil voltage	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgNi type	5 A 277 V AC, 3 A 30 V DC	1,385 VA, 90 W	277 V AC, 30 V DC	5 A (AC), 3 A (DC)	100 mA 5 V DC	Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength.)	750 Vrms for 1 min (detection current: 10 mA)	4,000 Vrms for 1 min (detection current: 10 mA)	10,000 V	Max. 10 ms at rated coil voltage (without bounce)	Max. 10 ms at rated coil voltage (without bounce, with diode)	300 m/s² (half-sine shock pulse: 11 ms, detection time: 10 μs)	1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 μs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 5x10⁶ ope. (switching frequency: at 180 times/min)	Ambient temperature: -40 to +85℃ Humidity: 5 to 85% RH (Avoid icing and condensation)	Approx. 4 g	[at 20℃, switching frequency: 20 times/min] Min. 200x10³ ope. 5 A 125 V AC Min. 100x10³ ope. 5 A 250 V AC Min. 100x10³ ope. 3 A 30 V DC	Tube package
ALDP106		6 V DC	1 Form A	Sealed	Single side stable	PC board terminal	Slim type	Class E insulation	50	1,000	Max. 75% V of rated coil voltage (Initial)	Min. 5% V of rated coil voltage (Initial)	33.3 mA	180 Ω	200 mW	180% V of rated coil voltage	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgNi type	5 A 277 V AC, 3 A 30 V DC	1,385 VA, 90 W	277 V AC, 30 V DC	5 A (AC), 3 A (DC)	100 mA 5 V DC	Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength.)	750 Vrms for 1 min (detection current: 10 mA)	4,000 Vrms for 1 min (detection current: 10 mA)	10,000 V	Max. 10 ms at rated coil voltage (without bounce)	Max. 10 ms at rated coil voltage (without bounce, with diode)	300 m/s² (half-sine shock pulse: 11 ms, detection time: 10 μs)	1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 μs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 5x10⁶ ope. (switching frequency: at 180 times/min)	Ambient temperature: -40 to +85℃ Humidity: 5 to 85% RH (Avoid icing and condensation)	Approx. 4 g	[at 20℃, switching frequency: 20 times/min] Min. 200x10³ ope. 5 A 125 V AC Min. 100x10³ ope. 5 A 250 V AC Min. 100x10³ ope. 3 A 30 V DC	Tube package
ALDP1F05W		5 V DC	1 Form A	Sealed	Single side stable	PC board terminal	Slim type	Class F insulation	100	500	Max. 75% V of rated coil voltage (Initial)	Min. 5% V of rated coil voltage (Initial)	40.0 mA	125 Ω	200 mW	180% V of rated coil voltage	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgNi type	5 A 277 V AC, 3 A 30 V DC	1,385 VA, 90 W	277 V AC, 30 V DC	5 A (AC), 3 A (DC)	100 mA 5 V DC	Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength.)	750 Vrms for 1 min (detection current: 10 mA)	4,000 Vrms for 1 min (detection current: 10 mA)	10,000 V	Max. 10 ms at rated coil voltage (without bounce)	Max. 10 ms at rated coil voltage (without bounce, with diode)	300 m/s² (half-sine shock pulse: 11 ms, detection time: 10 μs)	1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 μs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 5x10⁶ ope. (switching frequency: at 180 times/min)	Ambient temperature: -40 to +85℃ Humidity: 5 to 85% RH (Avoid icing and condensation)	Approx. 4 g	[at 20℃, switching frequency: 20 times/min] Min. 200x10³ ope. 5 A 125 V AC Min. 100x10³ ope. 5 A 250 V AC Min. 100x10³ ope. 3 A 30 V DC	Carton
ALDP124		24 V DC	1 Form A	Sealed	Single side stable	PC board terminal	Slim type	Class E insulation	50	1,000	Max. 75% V of rated coil voltage (Initial)	Min. 5% V of rated coil voltage (Initial)	8.3 mA	2,880 Ω	200 mW	180% V of rated coil voltage	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgNi type	5 A 277 V AC, 3 A 30 V DC	1,385 VA, 90 W	277 V AC, 30 V DC	5 A (AC), 3 A (DC)	100 mA 5 V DC	Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength.)	750 Vrms for 1 min (detection current: 10 mA)	4,000 Vrms for 1 min (detection current: 10 mA)	10,000 V	Max. 10 ms at rated coil voltage (without bounce)	Max. 10 ms at rated coil voltage (without bounce, with diode)	300 m/s² (half-sine shock pulse: 11 ms, detection time: 10 μs)	1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 μs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 5x10⁶ ope. (switching frequency: at 180 times/min)	Ambient temperature: -40 to +85℃ Humidity: 5 to 85% RH (Avoid icing and condensation)	Approx. 4 g	[at 20℃, switching frequency: 20 times/min] Min. 200x10³ ope. 5 A 125 V AC Min. 100x10³ ope. 5 A 250 V AC Min. 100x10³ ope. 3 A 30 V DC	Tube package
ALDP1F09W		9 V DC	1 Form A	Sealed	Single side stable	PC board terminal	Slim type	Class F insulation	100	500	Max. 75% V of rated coil voltage (Initial)	Min. 5% V of rated coil voltage (Initial)	22.2 mA	405 Ω	200 mW	180% V of rated coil voltage	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgNi type	5 A 277 V AC, 3 A 30 V DC	1,385 VA, 90 W	277 V AC, 30 V DC	5 A (AC), 3 A (DC)	100 mA 5 V DC	Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength.)	750 Vrms for 1 min (detection current: 10 mA)	4,000 Vrms for 1 min (detection current: 10 mA)	10,000 V	Max. 10 ms at rated coil voltage (without bounce)	Max. 10 ms at rated coil voltage (without bounce, with diode)	300 m/s² (half-sine shock pulse: 11 ms, detection time: 10 μs)	1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 μs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 5x10⁶ ope. (switching frequency: at 180 times/min)	Ambient temperature: -40 to +85℃ Humidity: 5 to 85% RH (Avoid icing and condensation)	Approx. 4 g	[at 20℃, switching frequency: 20 times/min] Min. 200x10³ ope. 5 A 125 V AC Min. 100x10³ ope. 5 A 250 V AC Min. 100x10³ ope. 3 A 30 V DC	Carton
ALDP1F18W		18 V DC	1 Form A	Sealed	Single side stable	PC board terminal	Slim type	Class F insulation	100	500	Max. 75% V of rated coil voltage (Initial)	Min. 5% V of rated coil voltage (Initial)	11.1 mA	1,620 Ω	200 mW	180% V of rated coil voltage	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgNi type	5 A 277 V AC, 3 A 30 V DC	1,385 VA, 90 W	277 V AC, 30 V DC	5 A (AC), 3 A (DC)	100 mA 5 V DC	Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength.)	750 Vrms for 1 min (detection current: 10 mA)	4,000 Vrms for 1 min (detection current: 10 mA)	10,000 V	Max. 10 ms at rated coil voltage (without bounce)	Max. 10 ms at rated coil voltage (without bounce, with diode)	300 m/s² (half-sine shock pulse: 11 ms, detection time: 10 μs)	1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 μs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 5x10⁶ ope. (switching frequency: at 180 times/min)	Ambient temperature: -40 to +85℃ Humidity: 5 to 85% RH (Avoid icing and condensation)	Approx. 4 g	[at 20℃, switching frequency: 20 times/min] Min. 200x10³ ope. 5 A 125 V AC Min. 100x10³ ope. 5 A 250 V AC Min. 100x10³ ope. 3 A 30 V DC	Carton
ALDP1F24W		24 V DC	1 Form A	Sealed	Single side stable	PC board terminal	Slim type	Class F insulation	100	500	Max. 75% V of rated coil voltage (Initial)	Min. 5% V of rated coil voltage (Initial)	8.3 mA	2,880 Ω	200 mW	180% V of rated coil voltage	Single	Max. 100 mΩ (by voltage drop 6 V DC 1 A)	AgNi type	5 A 277 V AC, 3 A 30 V DC	1,385 VA, 90 W	277 V AC, 30 V DC	5 A (AC), 3 A (DC)	100 mA 5 V DC	Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength.)	750 Vrms for 1 min (detection current: 10 mA)	4,000 Vrms for 1 min (detection current: 10 mA)	10,000 V	Max. 10 ms at rated coil voltage (without bounce)	Max. 10 ms at rated coil voltage (without bounce, with diode)	300 m/s² (half-sine shock pulse: 11 ms, detection time: 10 μs)	1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 μs)	10 to 55 Hz (at double amplitude of 1.5 mm)	Min. 5x10⁶ ope. (switching frequency: at 180 times/min)	Ambient temperature: -40 to +85℃ Humidity: 5 to 85% RH (Avoid icing and condensation)	Approx. 4 g	[at 20℃, switching frequency: 20 times/min] Min. 200x10³ ope. 5 A 125 V AC Min. 100x10³ ope. 5 A 250 V AC Min. 100x10³ ope. 3 A 30 V DC	Carton
