DZ-S Series Relays

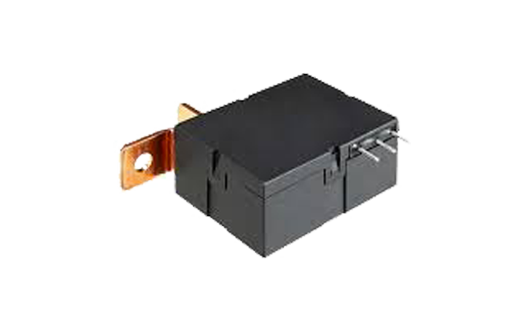

Panasonic's DZ-S Series Power Latching Relays offer a small profile, low operating power and are available in one coil latching (1.5W) and two coil latching(3.0W) with coil voltages ranging from 5V to 24V. The DZ-S Series Relays have expected life cycles at 90A 250VAC, min. 10K cycles. DZ-S Series Relays are designed for smart meters, charging stations and other industrial applications and can switch up to 90A 250VAC (Resistive load). These Relays are IEC62055-31 UC3 Compliant (short current 3000A) meeting this new standard. Special orders such as terminal shape, braided wire length, with/without a shunt, etc. are available upon request.

Features and Benefits:

High Switching Capacity: Up to 9A 250VAC (Resistive Load)
Low Coil Power Consumption
- 1.5 W (1-Coil Latching)
- 3.0 W (2-Coil Latching)
Small Size: 38.5mmW x 30mmL x 17.5mmH
IEC62055-31 UC3 Compliant (New Standard)
- Short Current up to 3000A
Protective Construction: Dust Cover Type
RoHS/REACH Compliant

DZ-S Series Relays

Part number list

Results 6

Models table for series DZ-S Series Relays
Part No.	Operating Function	Rated Coil Voltage	Protective Construction	Terminal Type	Contact Type	Packing Quantity; Inner Carton (Pcs.)	Packing Quantity; Outer Carton (Pcs.)	Set Voltage	Reset Voltage	Rated Operating Current [±10%] (at 20°C)	Resistance [±10%] (at 20°C)	Rated Operating Power	Max. Allowable Voltage (at 20°C 68°F)	Contact Arrangement	Contact Shape	Contact Resistance (Initial)	Contact Material	Contact Rating (Resistive Load)	Max. Switching Power (Resistive Load)	Max. Switching Voltage	Max. Switching Current	Min. Switching Load (Reference Value)	Insulation Resistance (Initial)	Dielectric Strength (Initial): Between Open Contacts	Dielectric Strength (Initial): Between Contact and Coil	Surge Withstand Voltage (Initial): Between Contact and Coil	Time (Initial) (at 20°C 68°F) (Initial)	Reset Time (Initial) (at20°C 68°F)	Hock Resistance (Functional)	Hock Resistance (Destructive)	Vibration Resistance (Functional)	Vibration Resistance (Destructive)	Mechanical Life	Conditions	Weight (Typ.)	Resistive Load	UC3 Class (IEC62055-31)	Contact Voltage Drop (Initial)
ADZS22105	2 coil latching	5 V DC	Dust Cover	Vertical terminal	High switching capacity	20	200	Max. 70% V of rated coil voltage (Initial)	Max. 70% V of rated coil voltage (Initial)	600 mA	8.3 Ω	3.0 W	130% V of rated coil voltage	1 Form A	Single	Max. 1 mΩ (at 90 A), Max. 5 mΩ (at 10 A)	AgSnO₂ type	90 A 250 V AC	24,840 VA	276 V AC	90 A (AC)	100 mA 125 V AC	Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength.)	2,000 Vrms for 1 min (detection current: 10 mA)	4,000 Vrms for 1 min (detection current: 10 mA)	12,000 V	Max. 20 ms at rated coil voltage (without bounce)	Max. 20 ms at rated coil voltage (without bounce)	300 m/s² (half-sine shock pulse: 11 ms, detection time: 10 μs)	1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 μs)	10 to 55 Hz (at double amplitude of 2 mm)	Min. 100x10³ ope. (switching frequency: at 180 times/min)	Ambient temperature: -40 to +85℃ Humidity: 5 to 85% RH (Avoid icing and condensation)	Approx. 45 g	[switching frequency: at 20 times/min (ON : OFF = 2 s : 4 s)] Min. 10x10³ ope. 90 A 250 V AC	[switching frequency ON : OFF = 10 s : 20 s] Min. 10x10³ ope. 90 A 276 V AC (cosΦ = 1 : 5,000 cycles, cosΦ ＝ 0.5 : 5,000 cycles)	Max. 0.09 V (at 90 A), Max. 0.05 V (at 10 A)
ADZS12124	1 coil latching	24 V DC	Dust Cover	Vertical terminal	High switching capacity	20	200	Max. 70% V of rated coil voltage (Initial)	Max. 70% V of rated coil voltage (Initial)	62.5 mA	384 Ω	1.5 W	130% V of rated coil voltage	1 Form A	Single	Max. 1 mΩ (at 90 A), Max. 5 mΩ (at 10 A)	AgSnO₂ type	90 A 250 V AC	24,840 VA	276 V AC	90 A (AC)	100 mA 125 V AC	Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength.)	2,000 Vrms for 1 min (detection current: 10 mA)	4,000 Vrms for 1 min (detection current: 10 mA)	12,000 V	Max. 20 ms at rated coil voltage (without bounce)	Max. 20 ms at rated coil voltage (without bounce)	300 m/s² (half-sine shock pulse: 11 ms, detection time: 10 μs)	1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 μs)	10 to 55 Hz (at double amplitude of 2 mm)	Min. 100x10³ ope. (switching frequency: at 180 times/min)	Ambient temperature: -40 to +85℃ Humidity: 5 to 85% RH (Avoid icing and condensation)	Approx. 45 g	[switching frequency: at 20 times/min (ON : OFF = 2 s : 4 s)] Min. 10x10³ ope. 90 A 250 V AC	[switching frequency ON : OFF = 10 s : 20 s] Min. 10x10³ ope. 90 A 276 V AC (cosΦ = 1 : 5,000 cycles, cosΦ ＝ 0.5 : 5,000 cycles)	Max. 0.09 V (at 90 A), Max. 0.05 V (at 10 A)
ADZS22112	2 coil latching	12 V DC	Dust Cover	Vertical terminal	High switching capacity	20	200	Max. 70% V of rated coil voltage (Initial)	Max. 70% V of rated coil voltage (Initial)	250 mA	48 Ω	3.0 W	130% V of rated coil voltage	1 Form A	Single	Max. 1 mΩ (at 90 A), Max. 5 mΩ (at 10 A)	AgSnO₂ type	90 A 250 V AC	24,840 VA	276 V AC	90 A (AC)	100 mA 125 V AC	Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength.)	2,000 Vrms for 1 min (detection current: 10 mA)	4,000 Vrms for 1 min (detection current: 10 mA)	12,000 V	Max. 20 ms at rated coil voltage (without bounce)	Max. 20 ms at rated coil voltage (without bounce)	300 m/s² (half-sine shock pulse: 11 ms, detection time: 10 μs)	1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 μs)	10 to 55 Hz (at double amplitude of 2 mm)	Min. 100x10³ ope. (switching frequency: at 180 times/min)	Ambient temperature: -40 to +85℃ Humidity: 5 to 85% RH (Avoid icing and condensation)	Approx. 45 g	[switching frequency: at 20 times/min (ON : OFF = 2 s : 4 s)] Min. 10x10³ ope. 90 A 250 V AC	[switching frequency ON : OFF = 10 s : 20 s] Min. 10x10³ ope. 90 A 276 V AC (cosΦ = 1 : 5,000 cycles, cosΦ ＝ 0.5 : 5,000 cycles)	Max. 0.09 V (at 90 A), Max. 0.05 V (at 10 A)
ADZS22124	2 coil latching	24 V DC	Dust Cover	Vertical terminal	High switching capacity	20	200	Max. 70% V of rated coil voltage (Initial)	Max. 70% V of rated coil voltage (Initial)	125 mA	192 Ω	3.0 W	130% V of rated coil voltage	1 Form A	Single	Max. 1 mΩ (at 90 A), Max. 5 mΩ (at 10 A)	AgSnO₂ type	90 A 250 V AC	24,840 VA	276 V AC	90 A (AC)	100 mA 125 V AC	Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength.)	2,000 Vrms for 1 min (detection current: 10 mA)	4,000 Vrms for 1 min (detection current: 10 mA)	12,000 V	Max. 20 ms at rated coil voltage (without bounce)	Max. 20 ms at rated coil voltage (without bounce)	300 m/s² (half-sine shock pulse: 11 ms, detection time: 10 μs)	1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 μs)	10 to 55 Hz (at double amplitude of 2 mm)	Min. 100x10³ ope. (switching frequency: at 180 times/min)	Ambient temperature: -40 to +85℃ Humidity: 5 to 85% RH (Avoid icing and condensation)	Approx. 45 g	[switching frequency: at 20 times/min (ON : OFF = 2 s : 4 s)] Min. 10x10³ ope. 90 A 250 V AC	[switching frequency ON : OFF = 10 s : 20 s] Min. 10x10³ ope. 90 A 276 V AC (cosΦ = 1 : 5,000 cycles, cosΦ ＝ 0.5 : 5,000 cycles)	Max. 0.09 V (at 90 A), Max. 0.05 V (at 10 A)
ADZS12105	1 coil latching	5 V DC	Dust Cover	Vertical terminal	High switching capacity	20	200	Max. 70% V of rated coil voltage (Initial)	Max. 70% V of rated coil voltage (Initial)	300 mA	16.7 Ω	1.5 W	130% V of rated coil voltage	1 Form A	Single	Max. 1 mΩ (at 90 A), Max. 5 mΩ (at 10 A)	AgSnO₂ type	90 A 250 V AC	24,840 VA	276 V AC	90 A (AC)	100 mA 125 V AC	Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength.)	2,000 Vrms for 1 min (detection current: 10 mA)	4,000 Vrms for 1 min (detection current: 10 mA)	12,000 V	Max. 20 ms at rated coil voltage (without bounce)	Max. 20 ms at rated coil voltage (without bounce)	300 m/s² (half-sine shock pulse: 11 ms, detection time: 10 μs)	1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 μs)	10 to 55 Hz (at double amplitude of 2 mm)	Min. 100x10³ ope. (switching frequency: at 180 times/min)	Ambient temperature: -40 to +85℃ Humidity: 5 to 85% RH (Avoid icing and condensation)	Approx. 45 g	[switching frequency: at 20 times/min (ON : OFF = 2 s : 4 s)] Min. 10x10³ ope. 90 A 250 V AC	[switching frequency ON : OFF = 10 s : 20 s] Min. 10x10³ ope. 90 A 276 V AC (cosΦ = 1 : 5,000 cycles, cosΦ ＝ 0.5 : 5,000 cycles)	Max. 0.09 V (at 90 A), Max. 0.05 V (at 10 A)
ADZS12112	1 coil latching	12 V DC	Dust Cover	Vertical terminal	High switching capacity	20	200	Max. 70% V of rated coil voltage (Initial)	Max. 70% V of rated coil voltage (Initial)	125 mA	96 Ω	1.5 W	130% V of rated coil voltage	1 Form A	Single	Max. 1 mΩ (at 90 A), Max. 5 mΩ (at 10 A)	AgSnO₂ type	90 A 250 V AC	24,840 VA	276 V AC	90 A (AC)	100 mA 125 V AC	Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength.)	2,000 Vrms for 1 min (detection current: 10 mA)	4,000 Vrms for 1 min (detection current: 10 mA)	12,000 V	Max. 20 ms at rated coil voltage (without bounce)	Max. 20 ms at rated coil voltage (without bounce)	300 m/s² (half-sine shock pulse: 11 ms, detection time: 10 μs)	1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 μs)	10 to 55 Hz (at double amplitude of 2 mm)	Min. 100x10³ ope. (switching frequency: at 180 times/min)	Ambient temperature: -40 to +85℃ Humidity: 5 to 85% RH (Avoid icing and condensation)	Approx. 45 g	[switching frequency: at 20 times/min (ON : OFF = 2 s : 4 s)] Min. 10x10³ ope. 90 A 250 V AC	[switching frequency ON : OFF = 10 s : 20 s] Min. 10x10³ ope. 90 A 276 V AC (cosΦ = 1 : 5,000 cycles, cosΦ ＝ 0.5 : 5,000 cycles)	Max. 0.09 V (at 90 A), Max. 0.05 V (at 10 A)

Models table for series DZ-S Series Relays
Part No.	Operating Function	Rated Coil Voltage	Protective Construction	Terminal Type	Contact Type	Packing Quantity; Inner Carton (Pcs.)	Packing Quantity; Outer Carton (Pcs.)	Set Voltage	Reset Voltage	Rated Operating Current [±10%] (at 20°C)	Resistance [±10%] (at 20°C)	Rated Operating Power	Max. Allowable Voltage (at 20°C 68°F)	Contact Arrangement	Contact Shape	Contact Resistance (Initial)	Contact Material	Contact Rating (Resistive Load)	Max. Switching Power (Resistive Load)	Max. Switching Voltage	Max. Switching Current	Min. Switching Load (Reference Value)	Insulation Resistance (Initial)	Dielectric Strength (Initial): Between Open Contacts	Dielectric Strength (Initial): Between Contact and Coil	Surge Withstand Voltage (Initial): Between Contact and Coil	Time (Initial) (at 20°C 68°F) (Initial)	Reset Time (Initial) (at20°C 68°F)	Hock Resistance (Functional)	Hock Resistance (Destructive)	Vibration Resistance (Functional)	Vibration Resistance (Destructive)	Mechanical Life	Conditions	Weight (Typ.)	Resistive Load	UC3 Class (IEC62055-31)	Contact Voltage Drop (Initial)
ADZS22105	2 coil latching	5 V DC	Dust Cover	Vertical terminal	High switching capacity	20	200	Max. 70% V of rated coil voltage (Initial)	Max. 70% V of rated coil voltage (Initial)	600 mA	8.3 Ω	3.0 W	130% V of rated coil voltage	1 Form A	Single	Max. 1 mΩ (at 90 A), Max. 5 mΩ (at 10 A)	AgSnO₂ type	90 A 250 V AC	24,840 VA	276 V AC	90 A (AC)	100 mA 125 V AC	Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength.)	2,000 Vrms for 1 min (detection current: 10 mA)	4,000 Vrms for 1 min (detection current: 10 mA)	12,000 V	Max. 20 ms at rated coil voltage (without bounce)	Max. 20 ms at rated coil voltage (without bounce)	300 m/s² (half-sine shock pulse: 11 ms, detection time: 10 μs)	1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 μs)	10 to 55 Hz (at double amplitude of 2 mm)	Min. 100x10³ ope. (switching frequency: at 180 times/min)	Ambient temperature: -40 to +85℃ Humidity: 5 to 85% RH (Avoid icing and condensation)	Approx. 45 g	[switching frequency: at 20 times/min (ON : OFF = 2 s : 4 s)] Min. 10x10³ ope. 90 A 250 V AC	[switching frequency ON : OFF = 10 s : 20 s] Min. 10x10³ ope. 90 A 276 V AC (cosΦ = 1 : 5,000 cycles, cosΦ ＝ 0.5 : 5,000 cycles)	Max. 0.09 V (at 90 A), Max. 0.05 V (at 10 A)
ADZS12124	1 coil latching	24 V DC	Dust Cover	Vertical terminal	High switching capacity	20	200	Max. 70% V of rated coil voltage (Initial)	Max. 70% V of rated coil voltage (Initial)	62.5 mA	384 Ω	1.5 W	130% V of rated coil voltage	1 Form A	Single	Max. 1 mΩ (at 90 A), Max. 5 mΩ (at 10 A)	AgSnO₂ type	90 A 250 V AC	24,840 VA	276 V AC	90 A (AC)	100 mA 125 V AC	Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength.)	2,000 Vrms for 1 min (detection current: 10 mA)	4,000 Vrms for 1 min (detection current: 10 mA)	12,000 V	Max. 20 ms at rated coil voltage (without bounce)	Max. 20 ms at rated coil voltage (without bounce)	300 m/s² (half-sine shock pulse: 11 ms, detection time: 10 μs)	1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 μs)	10 to 55 Hz (at double amplitude of 2 mm)	Min. 100x10³ ope. (switching frequency: at 180 times/min)	Ambient temperature: -40 to +85℃ Humidity: 5 to 85% RH (Avoid icing and condensation)	Approx. 45 g	[switching frequency: at 20 times/min (ON : OFF = 2 s : 4 s)] Min. 10x10³ ope. 90 A 250 V AC	[switching frequency ON : OFF = 10 s : 20 s] Min. 10x10³ ope. 90 A 276 V AC (cosΦ = 1 : 5,000 cycles, cosΦ ＝ 0.5 : 5,000 cycles)	Max. 0.09 V (at 90 A), Max. 0.05 V (at 10 A)
ADZS22112	2 coil latching	12 V DC	Dust Cover	Vertical terminal	High switching capacity	20	200	Max. 70% V of rated coil voltage (Initial)	Max. 70% V of rated coil voltage (Initial)	250 mA	48 Ω	3.0 W	130% V of rated coil voltage	1 Form A	Single	Max. 1 mΩ (at 90 A), Max. 5 mΩ (at 10 A)	AgSnO₂ type	90 A 250 V AC	24,840 VA	276 V AC	90 A (AC)	100 mA 125 V AC	Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength.)	2,000 Vrms for 1 min (detection current: 10 mA)	4,000 Vrms for 1 min (detection current: 10 mA)	12,000 V	Max. 20 ms at rated coil voltage (without bounce)	Max. 20 ms at rated coil voltage (without bounce)	300 m/s² (half-sine shock pulse: 11 ms, detection time: 10 μs)	1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 μs)	10 to 55 Hz (at double amplitude of 2 mm)	Min. 100x10³ ope. (switching frequency: at 180 times/min)	Ambient temperature: -40 to +85℃ Humidity: 5 to 85% RH (Avoid icing and condensation)	Approx. 45 g	[switching frequency: at 20 times/min (ON : OFF = 2 s : 4 s)] Min. 10x10³ ope. 90 A 250 V AC	[switching frequency ON : OFF = 10 s : 20 s] Min. 10x10³ ope. 90 A 276 V AC (cosΦ = 1 : 5,000 cycles, cosΦ ＝ 0.5 : 5,000 cycles)	Max. 0.09 V (at 90 A), Max. 0.05 V (at 10 A)
ADZS22124	2 coil latching	24 V DC	Dust Cover	Vertical terminal	High switching capacity	20	200	Max. 70% V of rated coil voltage (Initial)	Max. 70% V of rated coil voltage (Initial)	125 mA	192 Ω	3.0 W	130% V of rated coil voltage	1 Form A	Single	Max. 1 mΩ (at 90 A), Max. 5 mΩ (at 10 A)	AgSnO₂ type	90 A 250 V AC	24,840 VA	276 V AC	90 A (AC)	100 mA 125 V AC	Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength.)	2,000 Vrms for 1 min (detection current: 10 mA)	4,000 Vrms for 1 min (detection current: 10 mA)	12,000 V	Max. 20 ms at rated coil voltage (without bounce)	Max. 20 ms at rated coil voltage (without bounce)	300 m/s² (half-sine shock pulse: 11 ms, detection time: 10 μs)	1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 μs)	10 to 55 Hz (at double amplitude of 2 mm)	Min. 100x10³ ope. (switching frequency: at 180 times/min)	Ambient temperature: -40 to +85℃ Humidity: 5 to 85% RH (Avoid icing and condensation)	Approx. 45 g	[switching frequency: at 20 times/min (ON : OFF = 2 s : 4 s)] Min. 10x10³ ope. 90 A 250 V AC	[switching frequency ON : OFF = 10 s : 20 s] Min. 10x10³ ope. 90 A 276 V AC (cosΦ = 1 : 5,000 cycles, cosΦ ＝ 0.5 : 5,000 cycles)	Max. 0.09 V (at 90 A), Max. 0.05 V (at 10 A)
ADZS12105	1 coil latching	5 V DC	Dust Cover	Vertical terminal	High switching capacity	20	200	Max. 70% V of rated coil voltage (Initial)	Max. 70% V of rated coil voltage (Initial)	300 mA	16.7 Ω	1.5 W	130% V of rated coil voltage	1 Form A	Single	Max. 1 mΩ (at 90 A), Max. 5 mΩ (at 10 A)	AgSnO₂ type	90 A 250 V AC	24,840 VA	276 V AC	90 A (AC)	100 mA 125 V AC	Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength.)	2,000 Vrms for 1 min (detection current: 10 mA)	4,000 Vrms for 1 min (detection current: 10 mA)	12,000 V	Max. 20 ms at rated coil voltage (without bounce)	Max. 20 ms at rated coil voltage (without bounce)	300 m/s² (half-sine shock pulse: 11 ms, detection time: 10 μs)	1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 μs)	10 to 55 Hz (at double amplitude of 2 mm)	Min. 100x10³ ope. (switching frequency: at 180 times/min)	Ambient temperature: -40 to +85℃ Humidity: 5 to 85% RH (Avoid icing and condensation)	Approx. 45 g	[switching frequency: at 20 times/min (ON : OFF = 2 s : 4 s)] Min. 10x10³ ope. 90 A 250 V AC	[switching frequency ON : OFF = 10 s : 20 s] Min. 10x10³ ope. 90 A 276 V AC (cosΦ = 1 : 5,000 cycles, cosΦ ＝ 0.5 : 5,000 cycles)	Max. 0.09 V (at 90 A), Max. 0.05 V (at 10 A)
ADZS12112	1 coil latching	12 V DC	Dust Cover	Vertical terminal	High switching capacity	20	200	Max. 70% V of rated coil voltage (Initial)	Max. 70% V of rated coil voltage (Initial)	125 mA	96 Ω	1.5 W	130% V of rated coil voltage	1 Form A	Single	Max. 1 mΩ (at 90 A), Max. 5 mΩ (at 10 A)	AgSnO₂ type	90 A 250 V AC	24,840 VA	276 V AC	90 A (AC)	100 mA 125 V AC	Min. 1,000 MΩ (at 500 V DC, Measured portion is the same as the case of dielectric strength.)	2,000 Vrms for 1 min (detection current: 10 mA)	4,000 Vrms for 1 min (detection current: 10 mA)	12,000 V	Max. 20 ms at rated coil voltage (without bounce)	Max. 20 ms at rated coil voltage (without bounce)	300 m/s² (half-sine shock pulse: 11 ms, detection time: 10 μs)	1,000 m/s² (half-sine shock pulse: 6 ms)	10 to 55 Hz (at double amplitude of 1.5 mm, detection time: 10 μs)	10 to 55 Hz (at double amplitude of 2 mm)	Min. 100x10³ ope. (switching frequency: at 180 times/min)	Ambient temperature: -40 to +85℃ Humidity: 5 to 85% RH (Avoid icing and condensation)	Approx. 45 g	[switching frequency: at 20 times/min (ON : OFF = 2 s : 4 s)] Min. 10x10³ ope. 90 A 250 V AC	[switching frequency ON : OFF = 10 s : 20 s] Min. 10x10³ ope. 90 A 276 V AC (cosΦ = 1 : 5,000 cycles, cosΦ ＝ 0.5 : 5,000 cycles)	Max. 0.09 V (at 90 A), Max. 0.05 V (at 10 A)
