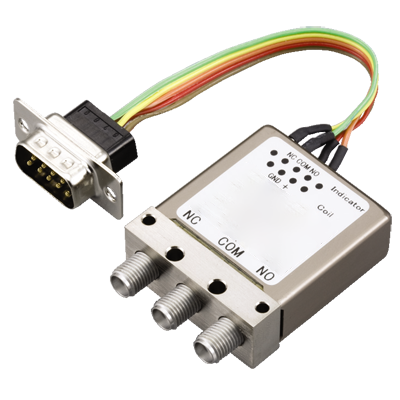

Specifications
| Item | Performance characteristics |
|---|---|
| Figure of Output | 18GHz |
| Contact Arrangement | SPDT |
| Operating Function | Fail-safe (with indicator) |
| Coil Voltage | 12V DC |
| Operation Terminal | Connector cable |
| Terminating Resistor | No termination |
| Datasheet Attached | Yes |
| V.S.W.R | Max. 1.5 |
| Impedance | 50Ω |
| Insertion (Without D.U.T Board's Loss) | Max. 0.5dB |
| Isolation | Min. 60dB |
| Contact Material | Au plating |
| Contact Rating | 120W (at 3GHz) |
| Rated operating power | 840mW |
| Breakdown Voltage (Contact-Contact) (Initial) | 500 V rms for 1 min (detection current: 10 mA) |
| Breakdown Voltage (Initial) : Between Contact And Coil | 500 V rms for 1 min (detection current: 10 mA) |
| Expected Life: Mechanical | Min. 5x106 ope. (switching frequency: at 180 times/min) |
| Expected Life: Electrical | Conditions: Switching frequency at 20 times/min Min. 5x106 ope. High frequency load 5 W (Up to 3 GHz, 50 Ω, V.S.W.R. Max. 1.2) Min. 5x106 ope. Indicator 10 mA 5 V DC |
| Ambient Temperature | Ambient temperature: －55 to ＋85 ℃ Humidity: 5 to 85% RH (Avoid icing and condensation) |
| Packing Quantity | Carton |
| Contact Carrying Power | Max. 120W (at 40℃, 3GHz, 50Ω, V.S.W.R. Max. 1.15, no contact switching) |
Stock check
ARD10012CQ
