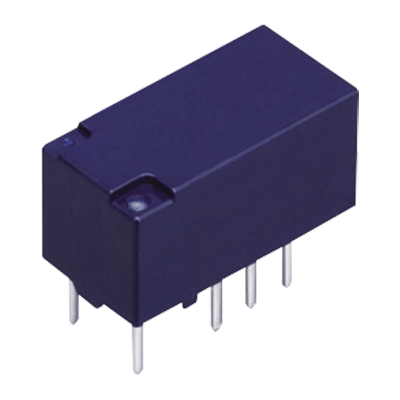

Specifications
| Item | Performance characteristics |
|---|---|
| Terminal Type | Standard PC board terminal |
| Contact Type | Standard type |
| Operating Function | Single side stable type |
| Rated Operating Power | 200mW |
| Coil Voltage | 1.5V DC |
| Packing Quantity | Tube packing |
| Protective Construction | Sealed Type |
| Contact Mechanism | B.B.M |
| Contact Arrangement | 2 Form C |
| Contact Material | Ag+Au clad |
| Pick-Up Voltage | 75%V or less of nominal voltage (Initial) |
| Input side: Drop-out Voltage | 10%V or more of nominal voltage (Initial) |
| Nominal Switching Capacity (Resistive Load) | 2 A 30 V DC |
| Max. Switching Current | 2 A |
| Min. Switching Capacity | 10µA 10mV DC |
| Breakdown Voltage (Initial) : Between Open Contacts | 1,000 Vrms for 1min. (Detection current: 10mA.) |
| Breakdown Voltage (Initial) : Between Contact And Coil | 3,000 Vrms for 1min. (Detection current: 10mA.) |
| Breakdown Voltage (Contact-Contact) (Initial) | 1,000 Vrms for 1min. (Detection current: 10mA.) |
| Surge Breakdown Voltage (Initial): Between Open Contacts | 1,500 V (10 x 160µs) (FCC Part 68) |
| Surge Breakdown Voltage (Initial): Between Contacts and Coil | 6,000 V (1.2 x 50µs) |
| Expected Life: Mechanical | Min. 108 (at 180 cpm) |
| Expected Life: Electrical | Min. 105 (2 A 30 V DC resistive) (at 20 cpm) |
| Conditions | Ambient temperature: –40 to +85°C –40 to +185°F Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature) |
| Height (mm) | 8.2 |
| Weight (Typ.) | Approx. 2 g .071 oz |
| Packing Quantity; Inner Carton (Pcs.) | 40 |
| Packing Quantity; Outer Carton (Pcs.) | 1000 |
