Specifications
| Item | Performance characteristics |
|---|---|
| Rated Operating Power | 150mW |
| Coil Voltage | 24V DC |
| Protective Construction | Sealed Type |
| Terminal Type | Standard PC board terminal |
| Contact Arrangement | 1 Form C |
| Contact Material | Ag+Au clad |
| Operating Function | Single side stable type |
| Pick-Up Voltage | 75%V or less of nominal voltage (Initial) |
| Input side: Drop-out Voltage | 10%V or more of nominal voltage (Initial) |
| Nominal Switching Capacity (Resistive Load) | 1 A 30 V DC |
| Max. Switching Current | 2 A |
| Min. Switching Capacity | 1mA 1 V DC |
| Breakdown Voltage (Initial) : Between Open Contacts | 500 Vrms for 1min. (Detection current: 10mA.) |
| Breakdown Voltage (Initial) : Between Contact And Coil | 1,000 Vrms for 1min. (Detection current: 10mA.) |
| Expected Life: Mechanical | Min. 107 (at 180 cpm) |
| Expected Life: Electrical | Min. 105 (1 A 30 V DC resistive) (at 20 cpm) |
| Conditions | Ambient temperature: –40 to +70°C –40 to +158°F Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature) |
| Height (mm) | 10.1 |
| Weight (Typ.) | Approx. 1.8 g .063 oz |
| Packing Quantity | Tube packing |
| Packing Quantity; Inner Carton (Pcs.) | 50 |
| Packing Quantity; Outer Carton (Pcs.) | 2000 |
Stock check

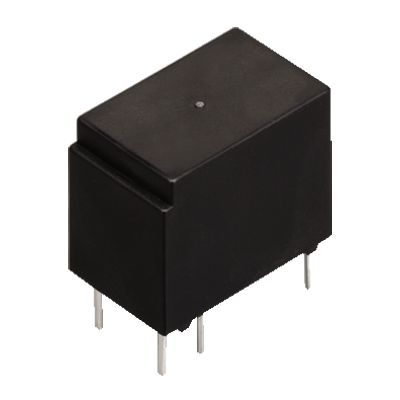

HY1-24V
