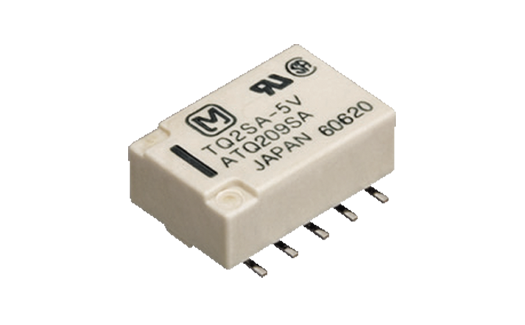

TQ Series Relays

Panasonic's TQ Series Signal Relays are a low profile (5mm height) sealed signal relay which is available with both through-hole and self-clinching terminals as well as surface mount terminal options. Using a 2FormC (DPDT) contact arrangement, the TQ Series Signal Relay has both Break-Before-Make (B.B.M.) and Make-Before-Break (M.B.B.) contact functions. Highly stable gold cladding on the contacts ensures that contact resistance is very stable over time. The TQ Series Signal Relay also features a low thermal electromotive force of approximately 5μV for through-hole version and 2μV for the surface-mount type.

Input for the TQ Series Signal Relay is available as either single-side stable or bi-stable with both 1-coil and 2-coil latching options. Standard DC coil voltage options include 1.5V, 3V, 4.5V, 6V, 9V, 12V, 24V, and 48V.

Features and Benefits

  • 3 Types Of Terminal Shapes: PC Board Terminal (Standard/Self-Clinching Termal) Surface Mount Terminal
  • Confort To FCC Part68: Surge Withstand Voltage 1,500 V (Between Open Contacts)
  • M.B.B. Contact Available
  • Surface Mount Terminal Conform to JIS C0806 Standard

Applications

  • Telecommunications And Measurement Equipment
  • Telephone Related Equipment
  • OA Equipment
  • Industrial Machines

Part Number List

Results 283
Models table for series TQ Series Relays
Part No.DatasheetTerminal TypeContact TypeOperating Function Rated Operating Power Coil VoltageSurface-Mount Terminal TypePacking QuantityProtective ConstructionContact MechanismContact ArrangementContact MaterialPick-Up VoltageInput side: Drop-out VoltageNominal Switching Capacity (Resistive Load) Max. Switching CurrentMin. Switching Capacity Breakdown Voltage (Initial) : Between Open ContactsBreakdown Voltage (Initial) : Between Contact And CoilBreakdown Voltage (Contact-Contact) (Initial)Surge Breakdown Voltage (Initial): Between Open ContactsSurge Breakdown Voltage (Initial): Between Contacts and Coil Expected Life: MechanicalExpected Life: ElectricalConditionsHeight (mm)Weight (Typ.)Packing Quantity; Inner Carton (Pcs.) Packing Quantity; Outer Carton (Pcs.)Set Voltage Reset Voltage
Surface-mount terminal
Standard type
Single side stable type
140mW
1.5V DC
SA type
Tape and reel packing (X)
Sealed Type
B.B.M
2 Form C
AgNi type+Au clad
75%V or less of nominal voltage (Initial)
10%V or more of nominal voltage (Initial)
2 A 30 V DC, 0.5 A 125 V AC
2 A
10µA 10mV DC
1,000 Vrms for 1min. (Detection current: 10mA.)
1,500 Vrms for 1min. (Detection current: 10mA.)
1,500 Vrms for 1min. (Detection current: 10mA.)
1,500 V (10 x 160µs) (FCC Part 68)
2,500 V (2 x 10µs) (Telcordia)
Min. 108 (at 180 cpm)
Min. 105 (2 A 30 V DC resistive), Min. 2 x 105 (1 A 30 V DC resistive),
Min. 105 (0.5 A 125 V AC resistive) (at 20 cpm)
Ambient temperature: –40 to +85°C –40 to +185°F, Max. –40 to +70°C (2A) Max. –40 to +158°F (2A)
Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)
5.6
Approx. 2 g .071 oz
500
1000
Surface-mount terminal
Standard type
Single side stable type
140mW
4.5V DC
SA type
Tape and reel packing (Z)
Sealed Type
B.B.M
2 Form C
AgNi type+Au clad
75%V or less of nominal voltage (Initial)
10%V or more of nominal voltage (Initial)
2 A 30 V DC, 0.5 A 125 V AC
2 A
10µA 10mV DC
1,000 Vrms for 1min. (Detection current: 10mA.)
1,500 Vrms for 1min. (Detection current: 10mA.)
1,500 Vrms for 1min. (Detection current: 10mA.)
1,500 V (10 x 160µs) (FCC Part 68)
2,500 V (2 x 10µs) (Telcordia)
Min. 108 (at 180 cpm)
Min. 105 (2 A 30 V DC resistive), Min. 2 x 105 (1 A 30 V DC resistive),
Min. 105 (0.5 A 125 V AC resistive) (at 20 cpm)
Ambient temperature: –40 to +85°C –40 to +185°F, Max. –40 to +70°C (2A) Max. –40 to +158°F (2A)
Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)
5.6
Approx. 2 g .071 oz
500
1000
Surface-mount terminal
Standard type
Single side stable type
300mW
48V DC
SL type
Tube packing
Sealed Type
B.B.M
2 Form C
AgNi type+Au clad
75%V or less of nominal voltage (Initial)
10%V or more of nominal voltage (Initial)
2 A 30 V DC, 0.5 A 125 V AC
2 A
10µA 10mV DC
1,000 Vrms for 1min. (Detection current: 10mA.)
1,500 Vrms for 1min. (Detection current: 10mA.)
1,500 Vrms for 1min. (Detection current: 10mA.)
1,500 V (10 x 160µs) (FCC Part 68)
2,500 V (2 x 10µs) (Telcordia)
Min. 108 (at 180 cpm)
Min. 105 (2 A 30 V DC resistive), Min. 2 x 105 (1 A 30 V DC resistive),
Min. 105 (0.5 A 125 V AC resistive) (at 20 cpm)
Ambient temperature: –40 to +85°C –40 to +185°F, Max. –40 to +70°C (2A) Max. –40 to +158°F (2A)
Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)
5.6
Approx. 2 g .071 oz
50
1000
Surface-mount terminal
Standard type
Single side stable type
140mW
3V DC
SS type
Tube packing
Sealed Type
B.B.M
2 Form C
AgNi type+Au clad
75%V or less of nominal voltage (Initial)
10%V or more of nominal voltage (Initial)
2 A 30 V DC, 0.5 A 125 V AC
2 A
10µA 10mV DC
1,000 Vrms for 1min. (Detection current: 10mA.)
1,500 Vrms for 1min. (Detection current: 10mA.)
1,500 Vrms for 1min. (Detection current: 10mA.)
1,500 V (10 x 160µs) (FCC Part 68)
2,500 V (2 x 10µs) (Telcordia)
Min. 108 (at 180 cpm)
Min. 105 (2 A 30 V DC resistive), Min. 2 x 105 (1 A 30 V DC resistive),
Min. 105 (0.5 A 125 V AC resistive) (at 20 cpm)
Ambient temperature: –40 to +85°C –40 to +185°F, Max. –40 to +70°C (2A) Max. –40 to +158°F (2A)
Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)
5.6
Approx. 2 g .071 oz
50
1000
Surface-mount terminal
Standard type
Single side stable type
140mW
4.5V DC
SL type
Tape and reel packing (Z)
Sealed Type
B.B.M
2 Form C
AgNi type+Au clad
75%V or less of nominal voltage (Initial)
10%V or more of nominal voltage (Initial)
2 A 30 V DC, 0.5 A 125 V AC
2 A
10µA 10mV DC
1,000 Vrms for 1min. (Detection current: 10mA.)
1,500 Vrms for 1min. (Detection current: 10mA.)
1,500 Vrms for 1min. (Detection current: 10mA.)
1,500 V (10 x 160µs) (FCC Part 68)
2,500 V (2 x 10µs) (Telcordia)
Min. 108 (at 180 cpm)
Min. 105 (2 A 30 V DC resistive), Min. 2 x 105 (1 A 30 V DC resistive),
Min. 105 (0.5 A 125 V AC resistive) (at 20 cpm)
Ambient temperature: –40 to +85°C –40 to +185°F, Max. –40 to +70°C (2A) Max. –40 to +158°F (2A)
Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)
5.6
Approx. 2 g .071 oz
500
1000
Surface-mount terminal
Standard type
Single side stable type
140mW
1.5V DC
SS type
Tape and reel packing (Z)
Sealed Type
B.B.M
2 Form C
AgNi type+Au clad
75%V or less of nominal voltage (Initial)
10%V or more of nominal voltage (Initial)
2 A 30 V DC, 0.5 A 125 V AC
2 A
10µA 10mV DC
1,000 Vrms for 1min. (Detection current: 10mA.)
1,500 Vrms for 1min. (Detection current: 10mA.)
1,500 Vrms for 1min. (Detection current: 10mA.)
1,500 V (10 x 160µs) (FCC Part 68)
2,500 V (2 x 10µs) (Telcordia)
Min. 108 (at 180 cpm)
Min. 105 (2 A 30 V DC resistive), Min. 2 x 105 (1 A 30 V DC resistive),
Min. 105 (0.5 A 125 V AC resistive) (at 20 cpm)
Ambient temperature: –40 to +85°C –40 to +185°F, Max. –40 to +70°C (2A) Max. –40 to +158°F (2A)
Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)
5.6
Approx. 2 g .071 oz
500
1000
Surface-mount terminal
Standard type
Single side stable type
140mW
6V DC
SA type
Tube packing
Sealed Type
B.B.M
2 Form C
AgNi type+Au clad
75%V or less of nominal voltage (Initial)
10%V or more of nominal voltage (Initial)
2 A 30 V DC, 0.5 A 125 V AC
2 A
10µA 10mV DC
1,000 Vrms for 1min. (Detection current: 10mA.)
1,500 Vrms for 1min. (Detection current: 10mA.)
1,500 Vrms for 1min. (Detection current: 10mA.)
1,500 V (10 x 160µs) (FCC Part 68)
2,500 V (2 x 10µs) (Telcordia)
Min. 108 (at 180 cpm)
Min. 105 (2 A 30 V DC resistive), Min. 2 x 105 (1 A 30 V DC resistive),
Min. 105 (0.5 A 125 V AC resistive) (at 20 cpm)
Ambient temperature: –40 to +85°C –40 to +185°F, Max. –40 to +70°C (2A) Max. –40 to +158°F (2A)
Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)
5.6
Approx. 2 g .071 oz
50
1000
Surface-mount terminal
Standard type
1 coil latching type
70mW
12V DC
SS type
Tape and reel packing (X)
Sealed Type
B.B.M
2 Form C
AgNi type+Au clad
2 A 30 V DC, 0.5 A 125 V AC
2 A
10µA 10mV DC
1,000 Vrms for 1min. (Detection current: 10mA.)
1,500 Vrms for 1min. (Detection current: 10mA.)
1,500 Vrms for 1min. (Detection current: 10mA.)
1,500 V (10 x 160µs) (FCC Part 68)
2,500 V (2 x 10µs) (Telcordia)
Min. 108 (at 180 cpm)
Min. 105 (2 A 30 V DC resistive), Min. 2 x 105 (1 A 30 V DC resistive),
Min. 105 (0.5 A 125 V AC resistive) (at 20 cpm)
Ambient temperature: –40 to +85°C –40 to +185°F, Max. –40 to +70°C (2A) Max. –40 to +158°F (2A)
Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)
5.6
Approx. 2 g .071 oz
500
1000
75%V or less of nominal voltage (Initial)
75%V or less of nominal voltage (Initial)
Surface-mount terminal
Standard type
1 coil latching type
100mW
24V DC
SA type
Tube packing
Sealed Type
B.B.M
2 Form C
AgNi type+Au clad
2 A 30 V DC, 0.5 A 125 V AC
2 A
10µA 10mV DC
1,000 Vrms for 1min. (Detection current: 10mA.)
1,500 Vrms for 1min. (Detection current: 10mA.)
1,500 Vrms for 1min. (Detection current: 10mA.)
1,500 V (10 x 160µs) (FCC Part 68)
2,500 V (2 x 10µs) (Telcordia)
Min. 108 (at 180 cpm)
Min. 105 (2 A 30 V DC resistive), Min. 2 x 105 (1 A 30 V DC resistive),
Min. 105 (0.5 A 125 V AC resistive) (at 20 cpm)
Ambient temperature: –40 to +85°C –40 to +185°F, Max. –40 to +70°C (2A) Max. –40 to +158°F (2A)
Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)
5.6
Approx. 2 g .071 oz
50
1000
75%V or less of nominal voltage (Initial)
75%V or less of nominal voltage (Initial)
Surface-mount terminal
Standard type
1 coil latching type
70mW
6V DC
SA type
Tape and reel packing (X)
Sealed Type
B.B.M
2 Form C
AgNi type+Au clad
2 A 30 V DC, 0.5 A 125 V AC
2 A
10µA 10mV DC
1,000 Vrms for 1min. (Detection current: 10mA.)
1,500 Vrms for 1min. (Detection current: 10mA.)
1,500 Vrms for 1min. (Detection current: 10mA.)
1,500 V (10 x 160µs) (FCC Part 68)
2,500 V (2 x 10µs) (Telcordia)
Min. 108 (at 180 cpm)
Min. 105 (2 A 30 V DC resistive), Min. 2 x 105 (1 A 30 V DC resistive),
Min. 105 (0.5 A 125 V AC resistive) (at 20 cpm)
Ambient temperature: –40 to +85°C –40 to +185°F, Max. –40 to +70°C (2A) Max. –40 to +158°F (2A)
Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)
5.6
Approx. 2 g .071 oz
500
1000
75%V or less of nominal voltage (Initial)
75%V or less of nominal voltage (Initial)
